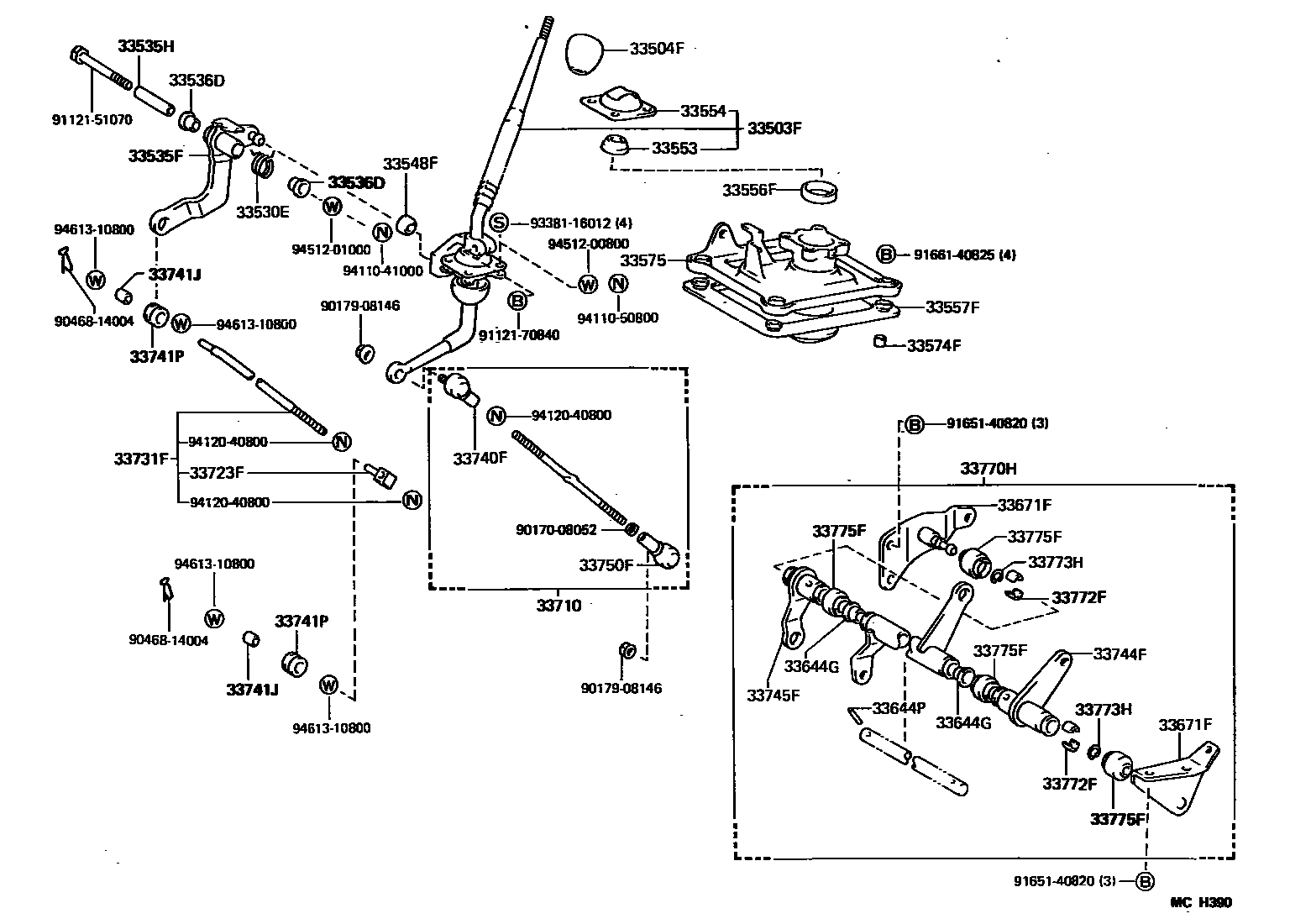

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33530ESPRING, TENSION (FOR SELECT RETURN)
33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535HCOLLAR (FOR CONTROL SELECT LEVER)
33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33553SEAT, SHIFT LEVER SPRING
33554CAP, SHIFT LEVER
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33644GBUSH (FOR GEAR SELECTING SHAFT)
33644PPIN (FOR GEAR SELECTING SHAFT)
33671FSUPPORT, CONTROL ROD, NO.1
INNER
OUTER
33710ROD ASSY, GEAR SHIFTING, NO.1
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33741JBUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
33741PGROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
33744FLEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33745FLEVER, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT)
33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33770HCROSS SHAFT ASSY (FOR FLOOR SHIFT)
33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
OUTER
33773HRING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
OUTER
INNER
9017008052
main90170-08052
9017908146
main90179-08146
9046814004
main90468-14004
9112151070
main91121-51070
9112170840
main91121-70840
9165140820
main91651-40820
9166140825
main91661-40825
9338116012
main93381-16012
9411041000
main94110-41000
9411050800
main94110-50800
9412040800
main94120-40800
9451200800
main94512-00800
9451201000
main94512-01000
9461310800
main94613-10800
43 parts on this diagram · 2 diagrams in section
