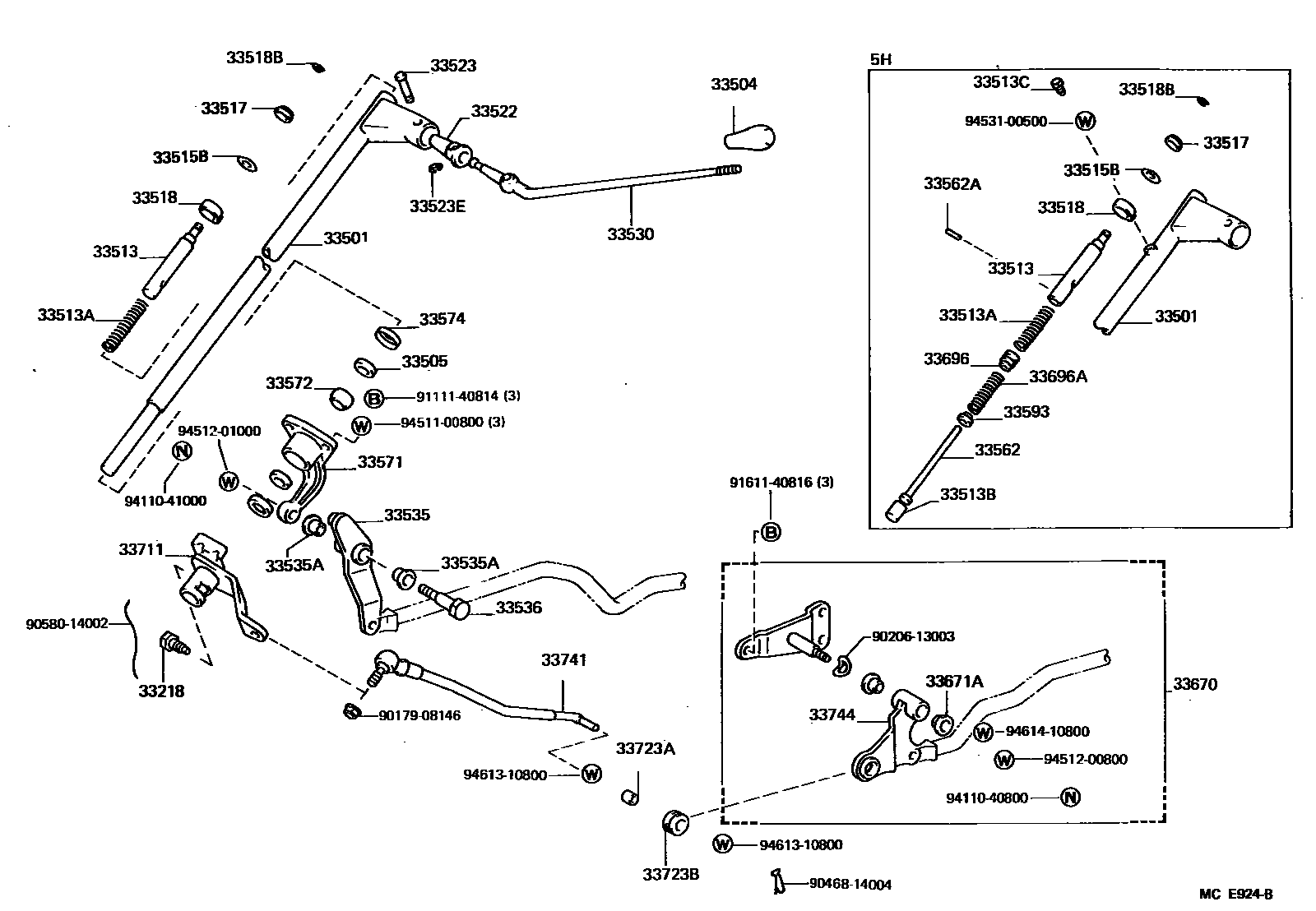

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33218BOLT, SHIFT LEVER LOCK

main33218-35010iLH51,61,YH51,61..MTM198708-198908

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-26120iYH51..RHD198708-198908

main33501-26130iLH51,61,YH61..RHD198708-198908

main33501-26150iYH51,61..LHD..4H198708-198908

main33501-26160iLH51,61,YH51,61..LHD..5H198708-198908

main33501-26172iLH51,61,YH51,61..4HC198708-198908

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iLH51,61,YH51,61..MTM198708-198908

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main33505-30010iLH51,61,YH51,61..4HC198708-198908

main90303-17005iLH51,61,YH51,61..MTM198708-198908

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iLH51,61,YH51,61..5H198708-198908

main33513-36020iLH51,61,YH51,61..4H,4HC198708-198908

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iLH51,61,YH51,61198708-198908

33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90560-11015iLH51,61,YH51,61..5H198708-198908

33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90109-05012iLH51,61,YH51,61..5H198708-198908

33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

main33515-30010iLH51,61,YH51,61198708-198908

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iLH51,61,YH51,61198708-198908

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iLH51,61,YH51,61198708-198908

sub33518-35010

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iLH51,61,YH51,61198708-198908

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iLH51,61,YH51,61198708-198908

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iLH51,61,YH51,61198708-198908

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iLH51,61,YH51,61198708-198908

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33530-26031iLH51,61,YH51,61..4HC198708-198908

main33541-26050iLH51,61,YH51,61..RHD198708-198908

main33541-26060iLH51,61,YH51,61..LHD..MTM198708-198908

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-26030iLH51,61,YH51,61..RHD198708-198908

main33535-26040iLH51,61,YH51,61..LHD..MTM198708-198908

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13192iLH51,61,YH51,61..MTM198708-198908

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-36040iLH51,61,YH51,61..MTM198708-198908

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-26010iLH51,61,YH51,61..5H198708-198908

33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main90254-03006iLH51,61,YH51,61..5H198708-198908

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-26012iLH51,61,YH51,61..MTM198708-198908

main33571-26030iLH51,61,YH51,61..4HC198708-198908

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-30020iLH51,61,YH51,61..4HC198708-198908

main33572-36010iLH51,61,YH51,61..MTM198708-198908

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iLH51,61,YH51,61..MTM198708-198908

33593HOLDER, SPRING (FOR SELECT LEVER)

main33593-26030iLH51,61,YH51,61..5H198708-198908

33670SUPPORT ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33670-26290iLH51,61,YH51,61..RHD198708-198908

main33670-26311iLH51,61,YH51,61..4HC198708-198908

main33670-26321iLH51,61,YH51,61..LHD..MTM198708-198908

33671ABUSH (FOR CONTROL ROD, NO.1 SUPPORT)

main90386-13192iLH51,61,YH51,61..MTM198708-198908

33696SEAT, SELECT SPRING

main33696-26020iLH51,61,YH51,61..5H198708-198908

33696ASPRING, COMPRESSION

main90501-18049iLH51,61,YH51,61..5H198708-198908

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-26060iLH51,61,YH51,61..RHD198708-198908

main33527-26070iLH51,61,YH51,61..LHD..MTM198708-198908

main33711-26010iLH51,61,YH51,61..4HC198708-198908

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-10020iLH51,61,YH51,61198708-198908

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90389-08005iLH51,61,YH51,61198708-198908

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177iLH51,61,YH51,61198708-198908

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-26081iLH51,61,YH51,61..RHD198708-198908

main33710-26091iLH51,61,YH51,61..LHD..MTM198708-198908

main33710-26110iLH51,61,YH51,61..4HC198708-198908

33744LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33744-26070iLH51,61,YH51,61..RHD198708-198908

9017908146

main90179-08146

9020613003

main90206-13003

9046814004

main90468-14004

9058014002

main90580-14002

9111140814

main91111-40814

9161140816

main91611-40816

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451200800

main94512-00800

9451201000

main94512-01000

9453100500

main94531-00500

9461310800

main94613-10800

9461410800

main94614-10800

49 parts on this diagram · 6 diagrams in section
