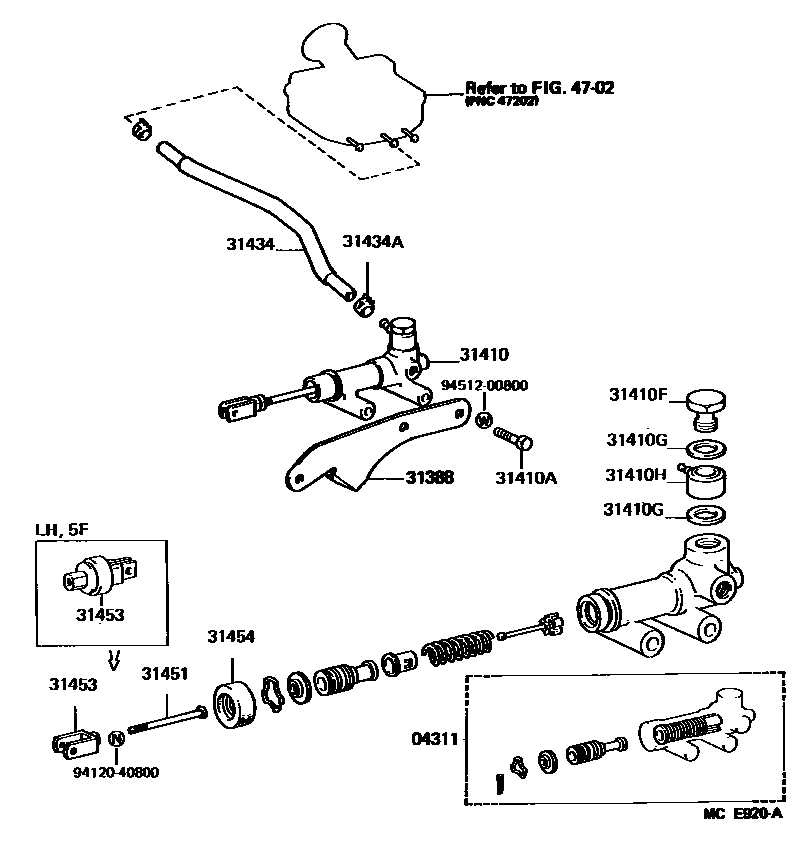

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14031iLH5#,6#,YH5#,6#..MTM198708-198802

sub04311-14032

main04311-14032iLH5#,6#,YH5#,6#..MTM198802-198808

sub04311-28010

main04311-28010iLH5#,6#,YH5#,6#..MTM198808-198811

sub04311-60080

main04311-60080iLH5#,6#,YH5#,6#..MTM198811-198908

31388SUPPORT, CLUTCH MASTER CYLINDER

main55105-95J00iLH5#,6#,YH5#,6#..MTM198708-198908

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26091iYH5#,6#..MTM198708-198710

sub31420-26092

main31420-26092iYH5#,6#..MTM198710-198908

main31420-26102iLH5#,6#..MTM198708-198710

sub31420-26103

main31420-26103iLH5#,6#..MTM198710-198908

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iLH5#,6#,YH5#,6#..MTM198708-198908

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH5#,6#,YH5#,6#..MTM198708-198908

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iLH5#,6#,YH5#,6#..MTM198708-198908

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH5#,6#,YH5#,6#..MTM198708-198908

31434TUBE, CLUTCH RESERVOIR

main31434-26140iLH51,61,YH51,61..RHD198708-198908

main31434-26150iLH5#,6#,YH5#,6#..LHD..MTM198708-198908

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLH5#,6#,YH5#,6#..MTM198708-198908

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iLH5#,6#..MTM198708-198908

main31451-30120iYH5#,6#..MTM198708-198908

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30050iLH5#,6#..MTM198708-198904

sub31404-30051

main31404-30051iLH5#,6#..MTM198904-198908

main31453-35010iYH5#,6#..MTM198708-198908

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH5#,6#,YH5#,6#..MTM198708-198908

4702

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
