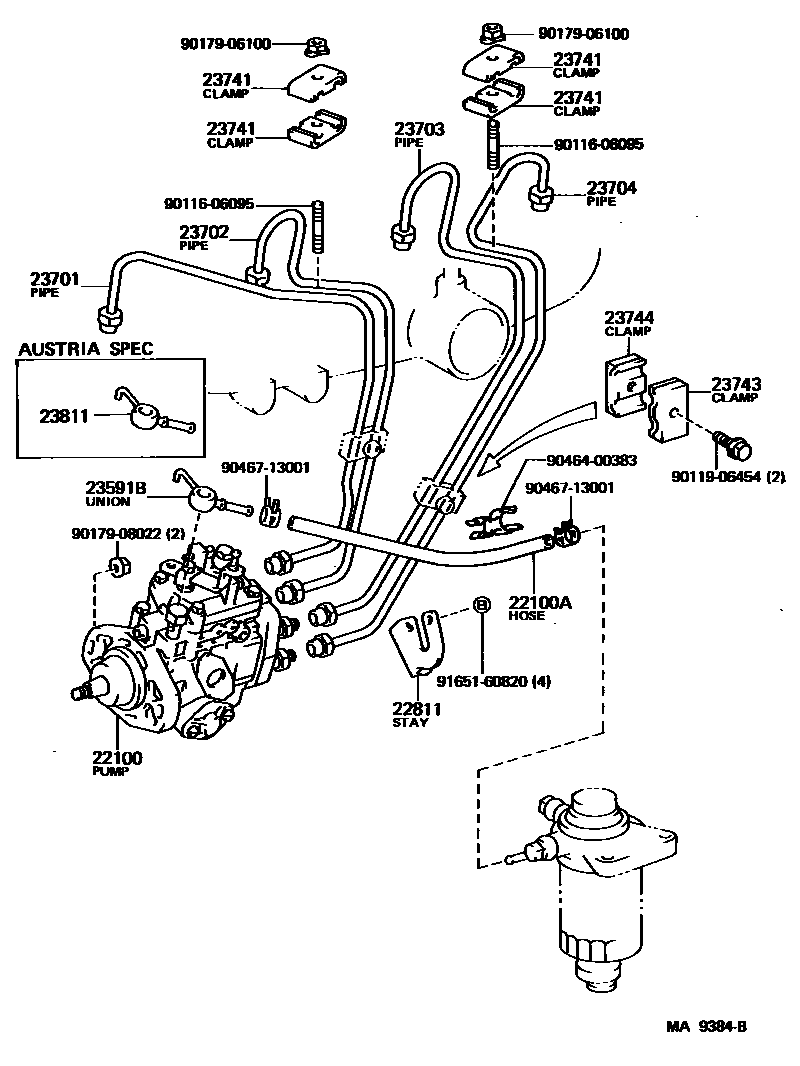

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54311i2L..LH5#,6#..MTM198708-198908

sub22100-54341

main22100-54371i2L..LH51,61..4HC198708-198908

sub22100-54381

main22100-5B070i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14005i2L..LH51,61198708-198908

main95333-08040i2L..LH56,66198708-198908

L=400

sub95337-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L..LH5#,6#198708-198808

sub22811-54041

main22811-54041i2L..LH5#,6#198808-198908

sub22811-54042

23591BUNION(FOR INJECTION PUNP INLET)

main23591-54010i2L..LH5#,6#198708-198908

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2L..LH5#,6#198903-198908

main23701-54082i2L..LH5#,6#198708-198903

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2L..LH5#,6#198903-198908

main23702-54081i2L..LH5#,6#198708-198903

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050i2L..LH5#,6#198708-198908

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050i2L..LH5#,6#198708-198908

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2L..LH5#,6#198708-198908

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010i2L..LH5#,6#198708-198908

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010i2L..LH5#,6#198708-198908

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54130i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046400383

main90464-00383

9046713001

main90467-13001

9165160820

main91651-60820

19 parts on this diagram · 1 diagram in section
