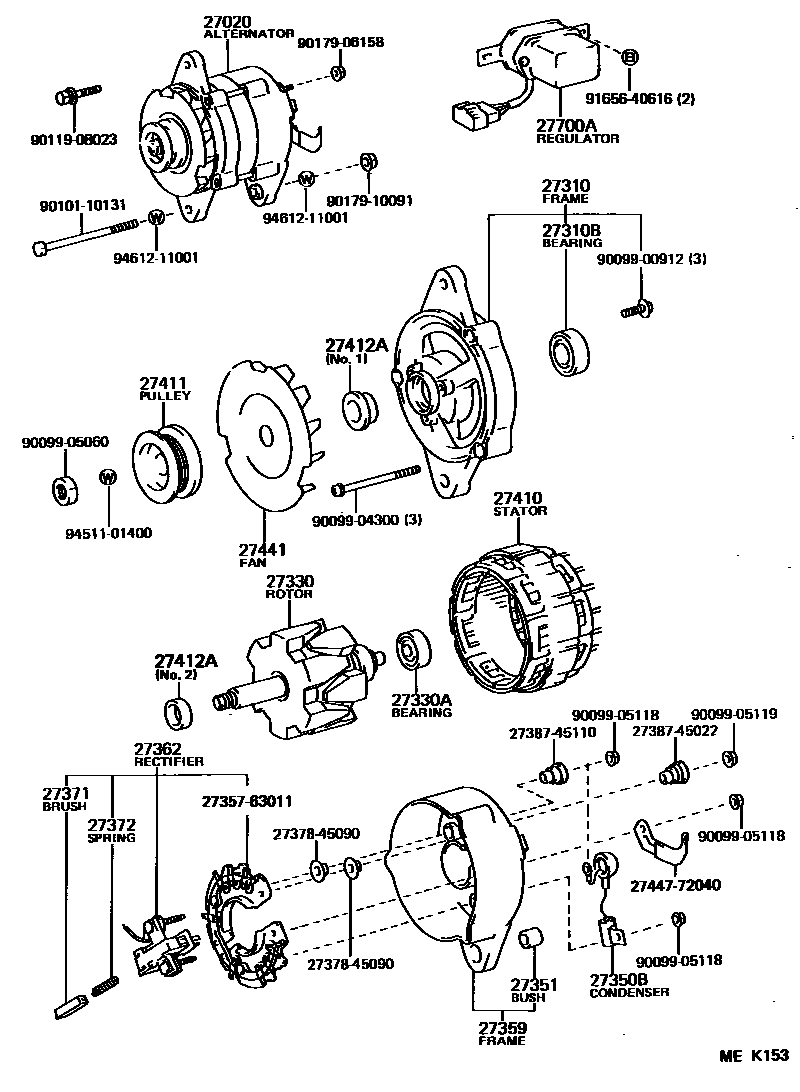

ALTERNATOR

0001 112V55A 0002 112V50,55A

27020ALTERNATOR ASSY

main27020-54160i2L..LH51,61..4HC198708-198908

12V 55A

main27020-54210i2L..LH5#,6#..MTM198708-198908

12V 50A

sub27020-54160

main27020-72010i3Y,4Y..YH5#,6#198708-198908

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54130i2L..LH5#,6#198708-198908

sub27310-54131

main27310-72041i3Y,4Y..YH5#,6#198708-198908

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2L..LH51,61..4HC198708-198908

main90099-10142i3Y,4Y..YH5#,6#198708-198908

sub90099-10223

27330ROTOR ASSY, ALTERNATOR

main27330-16030i3Y,4Y..YH5#,6#198708-198908

main27330-64010i2L..LH5#,6#198708-198908

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3Y,4Y..YH5#,6#198708-198908

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L..LH5#,6#198708-198908

27350BCONDENSER, ALTERNATOR

main90099-52065i3Y,4Y..YH5#,6#198708-198908

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3Y,4Y..YH5#,6#198708-198908

main27351-56013i2L..LH5#,6#198708-198908

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72010i3Y,4Y..YH5#,6#198708-198908

27362RECTIFIER ASSY, W/BRUSH

main27362-15022i3Y,4Y..YH5#,6#198708-198908

27371BRUSH, ALTERNATOR

main27371-31011i3Y,4Y..YH5#,6#198708-198908

main27371-56070i2L..LH5#,6#198708-198908

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3Y,4Y..YH5#,6#198708-198908

main27372-56070i2L..LH5#,6#198708-198908

27410STATOR ASSY, ALTERNATOR

main27410-41080i3Y..YH51,61;2L,4Y..LH5#,6#,YH56,66..MTM198708-198908

main27410-43040i2L..LH51,61..4HC198708-198908

27411PULLEY, ALTERNATOR

main27411-54170i2L..LH5#,6#198708-198908

sub27411-54171

main27411-72040i3Y,4Y..YH5#,6#198708-198908

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-15150i3Y,4Y..YH5#,6#198708-198908

NO.2

main27412-16040i3Y,4Y..YH5#,6#198708-198908

NO.1

main27412-57060i2L..LH5#,6#198708-198908

27441FAN, ALTERNATOR

main27441-56090i2L..LH5#,6#198708-198908

main27441-63030i3Y,4Y..YH5#,6#198708-198908

27700AREGULATOR ASSY, GENERATOR

main27700-13040i2L,3Y..LH51,61,YH51,61..RHD198708-198908

main27700-72020i2L..LH61..VSG;2L,3Y..LH51,61,YH51..4HC;2L,3Y,4Y..LH66,YH6#..LHD;2L,3Y..LH51,YH51..V5D..03S;2L,3Y,4Y..LH51,YH5#..VSG..(03S,J,R)198708-198709

COLD SPEC

sub27700-72021

main27700-72021i2L..LH51..U;3Y..YH51..V5D..5H;3Y..YH51..LHD..V4D..MTM..03S;2L,4Y..LH5#,61,YH56..LHD..VSP..MTM198709-198908

COLD SPEC

sub27700-72010

main27700-72060i2L,3Y,4Y..LH5#,6#,YH5#,6#..LHD198708-198908

sub27700-13080

2735763011HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63011

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744772040CLIP, ALTERNATOR CORD

main27447-72040

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110131

main90101-10131

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9165640616

main91656-40616

9451101400

main94511-01400

9461211001

main94612-11001

34 parts on this diagram · 2 diagrams in section
