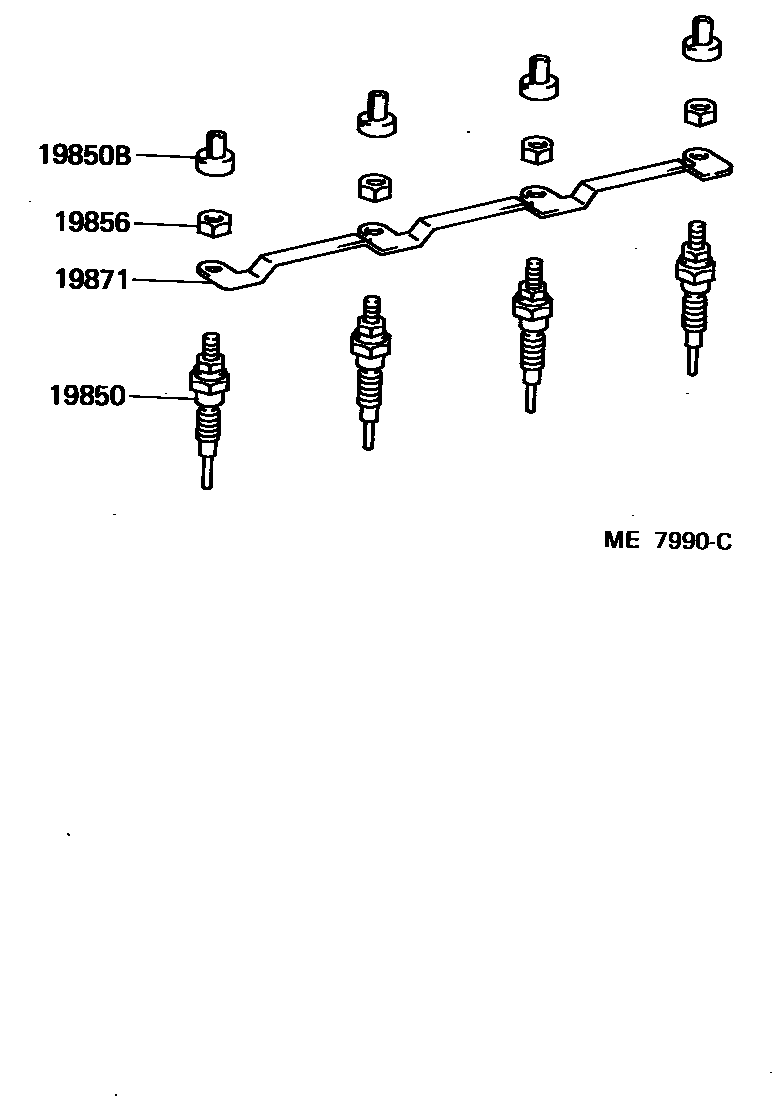

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-54050×4i2L..LH5#,6#198708-198908

*BV-GV=12V-7V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i2L..LH5#,6#198708-198908

19856NUT, CONNECTING(FOR GLOW PLUG)

main90170-04001×4i2L..LH5#,6#198708-198908

19871CONNECTOR, GLOW PLUG NO.1

main19871-54011i2L..LH5#,6#198708-198908

4 parts on this diagram · 2 diagrams in section
