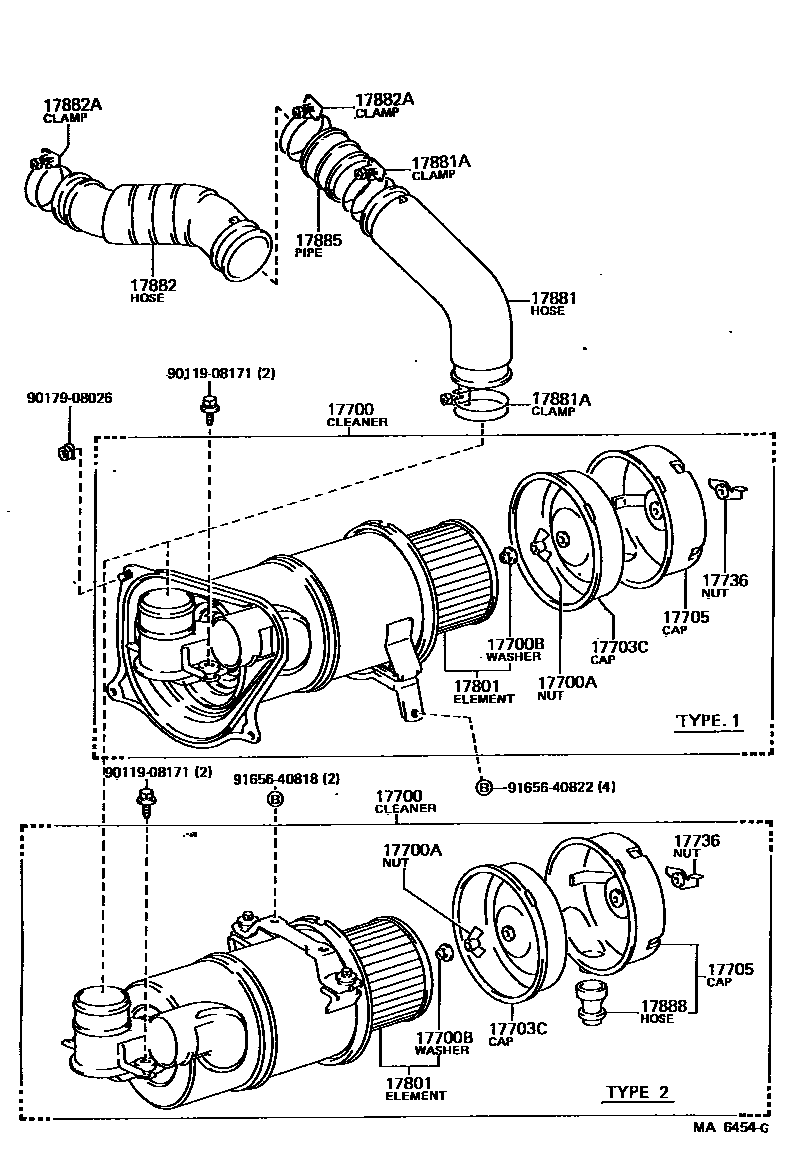

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-54220i2L..LH5#,6#..V5D;2L..LH51,61..RHD198708-198908

sub17700-73120

main17700-54230i2L..LH5#,6#..LHD..V4D198708-198908

sub17700-72120

main17700-72030i3Y..YH51,61..RHD;3Y,4Y..YH5#,6#..V5D198708-198908

main17700-72040i3Y..YH61..15S;3Y,4Y..YH5#,6#..LHD..V4D198708-198908

main17700-72120i2L..LH66..J198807-198908

ICELAND SPEC

main17700-72120i2L..LH66..J198807-198908

CANARY ISLANDS SPEC

main17700-72120i2L..LH61..J,U198807-198908

FINLAND SPEC

main17700-73120i2L..LH61..V5D..R198807-198908

FINLAND SPEC

main17700-73120i2L..LH61..V5D..R198807-198908

CANARY ISLANDS SPEC

main17700-73120i2L..LH61..V5D..R198807-198908

FINLAND,ICELAND SPEC

main17700-73120i2L..LH61..4HC;2L..LH51..V5D..03S198807-198908

FINLAND SPEC OR NORWAY SPEC

main17700-73120i2L..LH61..4HC;2L..LH51..V5D..03S198807-198908

FINLAND,CANARY ISLANDS,NORWAY SPEC

main17700-73120i2L..LH61..4HC;2L..LH51..V5D..03S198904-198908

FINLAND,CANARY ISLANDS,ICELAND,NORWAY SPEC

17700ANUT, WING(FOR AIR CLEANER)

main94271-00800i2L..LH5#,6#198708-198908

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i2L..LH5#,6#198708-198908

17703CCAP SUB-ASSY, DUST

main17703-64010i2L..LH51..R;2L..LH61..J,U198807-198908

FINLAND SPEC

main17703-64010i2L..LH61..V5D..5H..03S198807-198904

FINLAND,CANARY ISLANDS,NORWAYSPEC

main17703-64010i2L..LH61..V5D..5H..03S198807-198904

FINLAND NORWAY SPEC

main17703-64010i2L..LH66..J198807-198908

CANARY ISLANDS SPEC

main17703-64010i2L..LH66..J198807-198908

CANARY ISLANDS,ICELAND SPEC

main17703-64010i2L..LH61..V5D..5H..03S198904-198908

17705CAP SUB-ASSY, AIR CLEANER

main17705-72020i3Y,4Y..YH5#,6#198708-198908

main17705-72060i2L..LH61..J,U198807-198908

CANARY ISLANDS SPEC

main17705-72060i2L..LH66..J198807-198908

FINLAND SPEC

main17705-73050i2L..LH56..02S198807-198908

CANARY ISLAND SPEC

main17705-73050i2L..LH61..V5D..R198807-198908

FINLAND SPEC

main17705-73050i2L..LH61..V5D..R198807-198908

CANARY ISLANDS,ICELAND SPEC

main17705-73050i2L..LH51..V5D..03S;2L..LH6#..VSP..(4HC,5F)198807-198904

FINLAND,NORWAY SPEC

main17705-73050i2L..LH61..V5D..5H..03S198904-198908

main17705-73050i2L..LH51..V5D..03S;2L..LH6#..VSP..(4HC,5F)198807-198904

FINLAND,CANARY ISLANDS,NORWAY SPEC

17736NUT, AIR CLEANER CASE

main90175-06003i2L..LH5#,6#198708-198908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64030i2L..LH5#,6#198708-198908

main17801-72010i3Y,4Y..YH5#,6#198708-198908

17881HOSE, AIR CLEANER, NO.1

main17881-54170i2L..LH5#,6#198708-198908

main17881-72010i3Y,4Y..YH5#,6#198708-198908

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10780i2L..LH5#,6#198708-198908

17882HOSE, AIR CLEANER, NO.2

main17881-74040i3Y..YH51,61198708-198710

main17882-54120i2L..LH51,61198708-198908

main17882-54190i2L..LH56,66198708-198908

main17882-72040i3Y..YH51,61198710-198908

main17882-73010i4Y..YH56,66198708-198710

sub17882-73011

main17882-73011i4Y..YH56,66198710-198908

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036i3Y,4Y..YH5#,6#198708-198908

main96111-10690i2L..LH5#,6#198708-198908

INTAKE MANIFOLD SIDE

main96111-10780i2L..LH5#,6#198708-198908

PIPE SIDE

17885PIPE, AIR CLEANER

main17885-54080i2L..LH5#,6#198708-198908

17888HOSE, AIR CLEANER DUST DRAIN

main17888-73010i2L..LH61..V5D..R198807-198908

FINLAND SPEC

main17888-73010i2L..LH51..V5D..03S;2L..LH6#..VSP..(4HC,5F)198807-198904

FINLAND,NORWAY SPEC

main17888-73010i2L..LH51..R198807-198908

CANARY ISLANDS,ICELAND SPEC

main17888-73010i2L..LH61..V5D..5H..03S198904-198908

9011908171

main90119-08171

9017908026

main90179-08026

9165640818

main91656-40818

9165640822

main91656-40822

17 parts on this diagram · 3 diagrams in section
