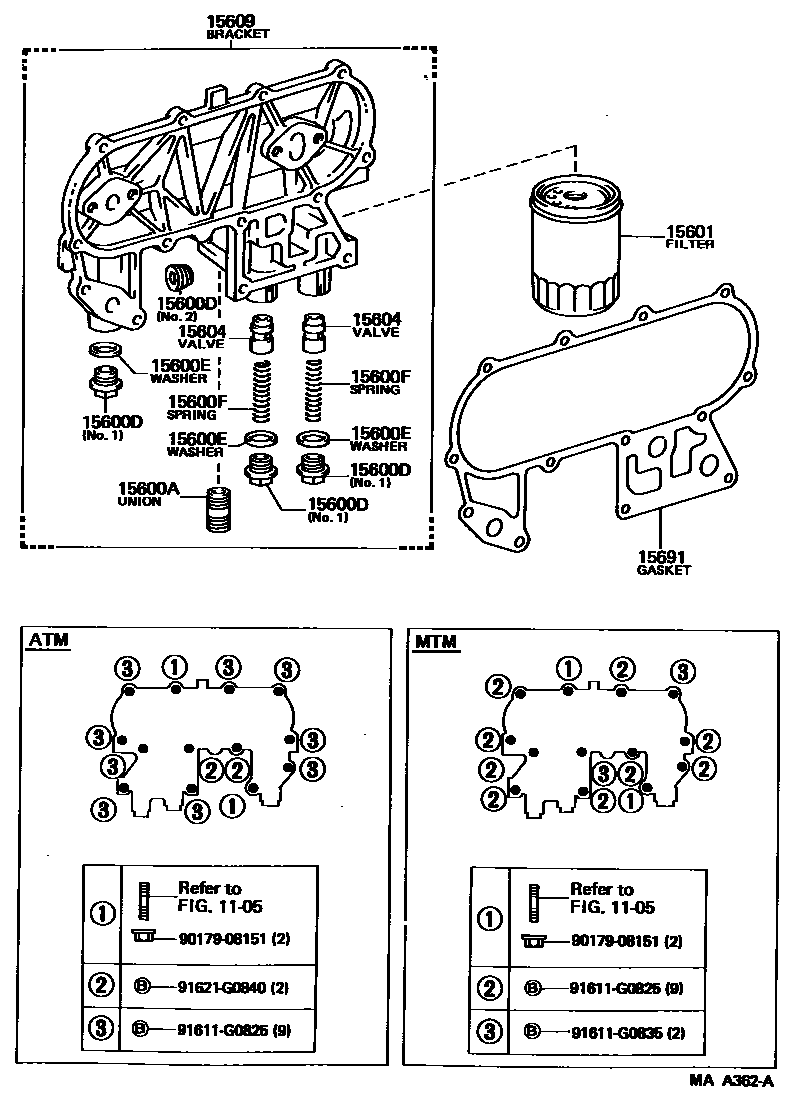

OIL FILTER

0001 1 0002 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54020i2L..LH5#,6#198708-198908

sub15116-54021

15600DPLUG(FOR OIL FILTER)

main90072-34402i2L..LH5#,6#198708-198908

NO.2

sub90344-51005

main90341-18015i2L..LH5#,6#198708-198908

NO.1

15600EWASHER(FOR OIL FILTER)

main90430-18011i2L..LH5#,6#198708-198908

sub90430-18001

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i2L..LH5#,6#198708-198908

15601FILTER SUB-ASSY, OIL

main15601-33021i3Y,4Y..YH5#,6#198708-198908

main90915-03006i2L..LH5#,6#198708-198908

sub90915-30002

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i2L..LH5#,6#198708-198908

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54070i2L..LH5#,6#198708-198806

main15609-54071i2L..LH5#,6#198806-198908

main15609-71011i3Y,4Y..YH5#,6#198708-198908

15691GASKET, OIL FILTER

main15691-71010i3Y,4Y..YH5#,6#198708-198908

sub15691-71011

main15692-54020i2L..LH5#,6#198708-198806

sub15692-54040

main15692-54030i2L..LH5#,6#198806-198908

sub15692-54050

9017908151

main90179-08151

91611G0825

main91611-G0825

91611G0835

main91611-G0835

91621G0840

main91621-G0840

13 parts on this diagram · 2 diagrams in section
