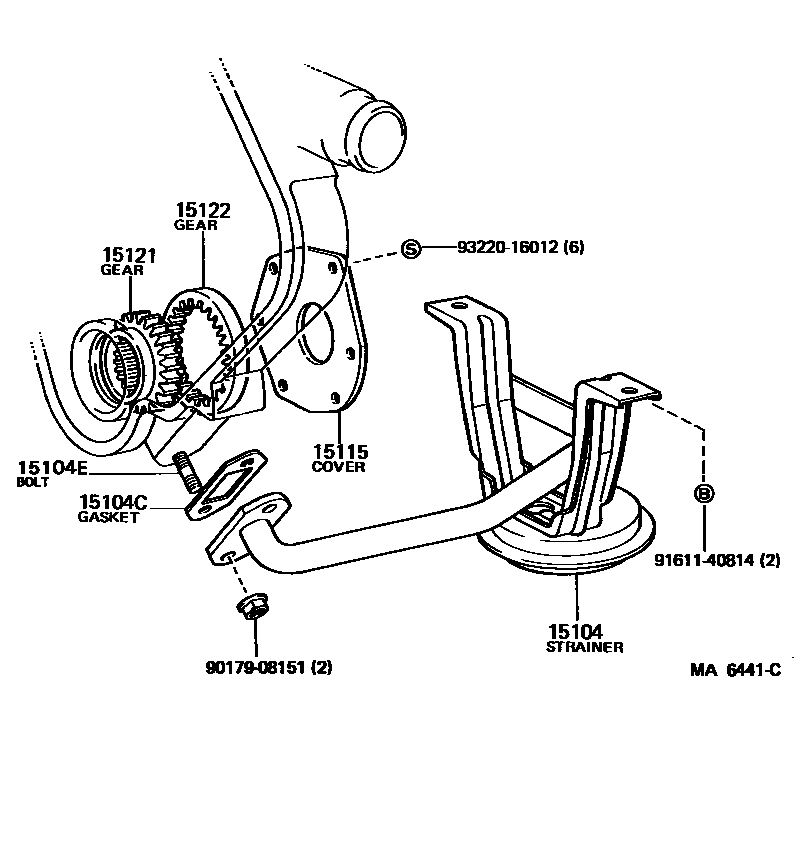

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-54023i2L..LH56,66198708-198805

sub15104-54140

main15104-54044i2L..LH51,61198708-198908

main15104-54140i2L..LH56,66198805-198908

main15104-71010i3Y,4Y..YH5#,6#198708-198908

15104CGASKET(FOR OIL STRAINER)

main15149-54011i2L..LH5#,6#198708-198808

sub15149-54012

main15149-54012i2L..LH5#,6#198808-198908

sub15149-54030

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816i2L..LH5#,6#198708-198908

15115COVER, OIL PUMP

main15115-54012i2L..LH5#,6#198708-198908

main15115-71015i3Y,4Y..YH5#,6#198708-198908

15121GEAR, OIL PUMP DRIVE

main15121-54010i2L..LH5#,6#198708-198908

15122GEAR, OIL PUMP DRIVEN

main15122-54010i2L..LH5#,6#198708-198908

9017908151

main90179-08151

9161140814

main91611-40814

9322016012

main93220-16012

9 parts on this diagram · 2 diagrams in section
