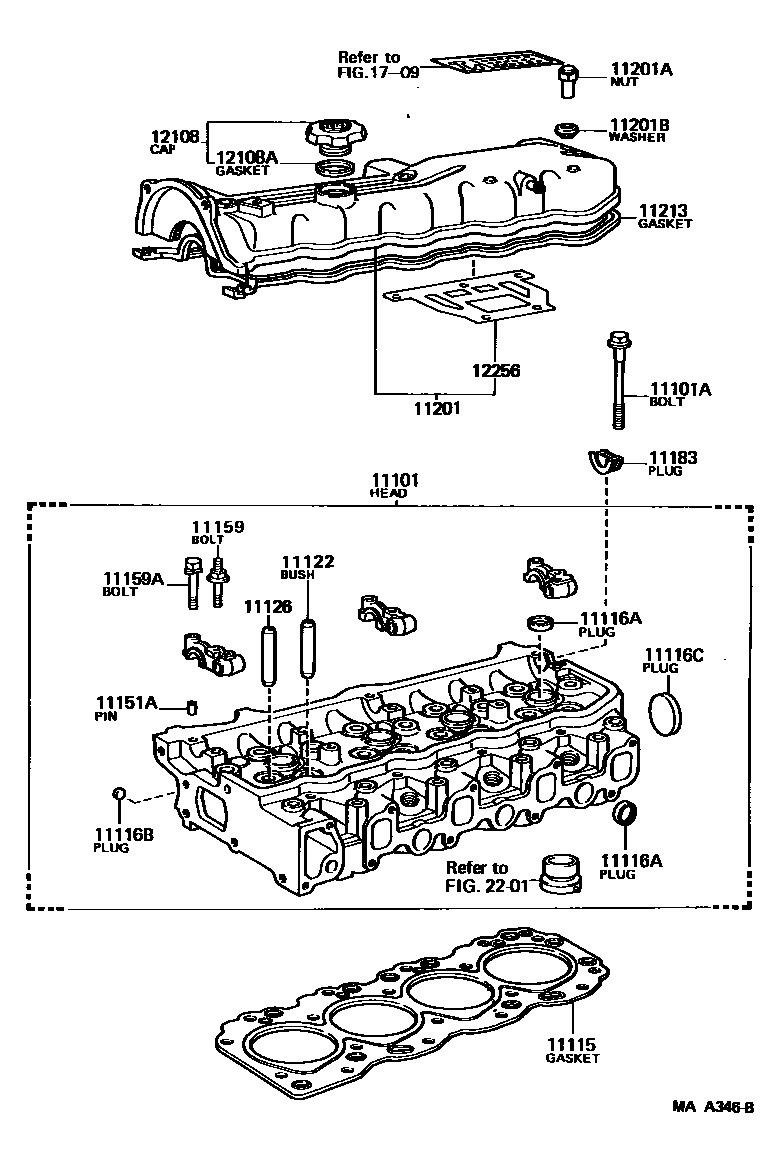

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54050i2L..LH5#,6#198708-198908

main11101-73010i4Y..YH56,66198708-198908

main11101-73020i3Y..YH51,61198708-198908

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i3Y,4Y..YH5#,6#198708-198908

main90910-02060i2L..LH5#,6#198708-198807

sub90910-02090

main90910-02090i2L..LH5#,6#198807-198908

11115GASKET, CYLINDER HEAD

main11115-54020i2L..LH5#,6#198708-198908

sub11115-54021

main11115-71011i3Y..YH51,61198708-198908

sub11115-73040

main11115-73010i4Y..YH56,66198708-198908

sub11115-73030

11116APLUG, TIGHT, NO.1

main96411-42500i2L..LH5#,6#198708-198908

11116BPLUG, TIGHT, NO.2

main96411-41200i2L..LH5#,6#198708-198908

11116CPLUG, TIGHT, NO.3

main96411-45000i2L..LH5#,6#198708-198908

11122BUSH, INTAKE VALVE GUIDE

main11122-54011i2L..LH5#,6#198708-198908

STD

main11122-71020i3Y..YH51,61198708-198908

STD

main11123-54011i2L..LH5#,6#198708-198908

O/S 0.05

main11123-71020i3Y..YH51,61198708-198908

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-54011i2L..LH5#,6#198708-198908

STD

main11123-54011i2L..LH5#,6#198708-198908

O/S 0.05

main11126-71020i3Y..YH51,61198708-198908

STD

main11127-71020i3Y..YH51,61198708-198908

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001i2L..LH5#,6#198708-198908

L=11,OD=11

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08137i2L..LH5#,6#198708-198908

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-08191i2L..LH5#,6#198708-198908

11183PLUG, SEMICIRCULAR

main11183-54011i2L..LH5#,6#198708-198908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-54080i2L..LH5#,6#198708-198908

main11201-79035i3Y,4Y..YH5#,6#198708-198908

sub11201-71011

sub11213-71020

sub90210-09001

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i3Y,4Y..YH5#,6#198708-198908

main90176-08014i2L..LH5#,6#198708-198908

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001i3Y,4Y..YH5#,6#198708-198908

sub90210-09019

main90210-13001i2L..LH5#,6#198708-198908

11213GASKET, CYLINDER HEAD COVER

main11213-54030i2L..LH5#,6#198708-198908

main11213-71020i3Y,4Y..YH5#,6#198708-198908

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i2L..LH5#,6#198708-198908

sub12180-55010

main12180-61010i3Y,4Y..YH5#,6#198708-198908

sub12180-70020

12108AGASKET(FOR OIL FILLER CAP)

main12195-71020i3Y,4Y..YH5#,6#198708-198908

main90430-37140i2L..LH5#,6#198708-198908

12256GASKET, VENTILATION BAFFLE

main12256-54020i2L..LH5#,6#198708-198908

1709

2201

21 parts on this diagram · 2 diagrams in section
