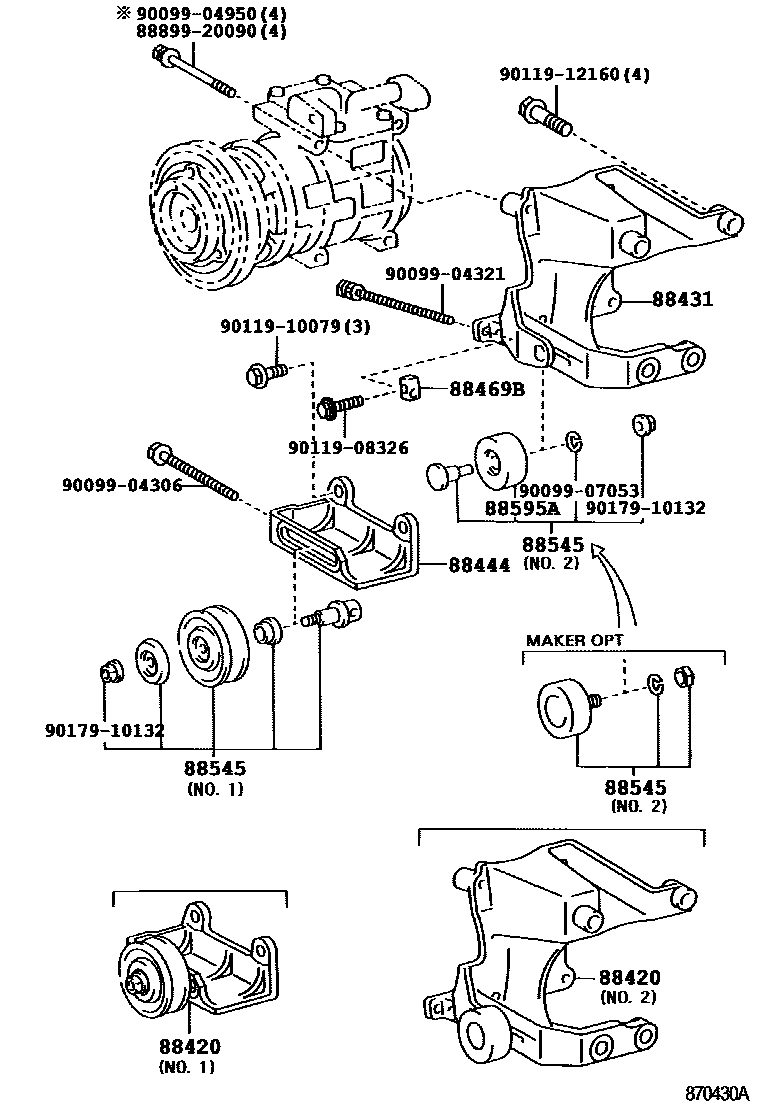

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88420PULLEY ASSY, IDLE, W/BRACKET

main88420-26190iRZH112..5D;RZH112..03S;RZH10#,113,114,115,155..CIS,GCC,GEN199308-200108

main88420-26200iLH172..06S;LH172..03S..STD..(GCC,GEN);LH10#,11#,154,16#,174,176..CIS,GCC,GEN199308-200008

NO.1

main88420-26210iLH113..STD..(GCC,GEN);LH10#,112,114,115..CIS,GCC,GEN199308-199808

NO.2

main88420-26350iLH172..06S;LH172..03S..STD..(GCC,GEN);LH10#,11#,154,162,164,174..CIS,GCC,GEN199808-200008

NO.2

main88420-26360iLH166,176199808-200408

NO.2

sub88431-26360

sub88440-26070

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26350iLH172..06S;LH172..03S..STD..(GCC,GEN);LH10#,11#,154,162,164,174..CIS,GCC,GEN199808-200602

main88431-26360iLH166,176199808-200408

main88431-95J00iRZH103,113,125..ARL198908-200602

main88431-95J01iLH103,113,125..ARL198908-200501

88444BRACKET, IDLE PULLEY

main88444-95J00iLH174..GL;LH172..RHD..STD;LH10#,11#,125,166,176198908-200602

88469BCOLLAR

main88469-30280iLH162..GEN;LH172..06S;LH162,184..5F..ARL;LH172..03S..5F..STD;LH10#,11#,125,154,164,166,174,176198908-200602

88545PULLEY ASSY, IDLE

main88440-26070iLH10#,11#,125198908-200602

NO.2

main88440-26090iLH103,113,125..ARL198908-200602

NO.1

main88440-26100iRZH102,103..03S..GEN199108-200602

main88440-26100iRZH114..HRF..4F;RZH10#,11#..SRF..GEN198908-199308

MAKER OPTION

main88440-95J00iRZH102,103,112,113,125..RHD198908-199308

DEALER OPTION

sub88440-26100

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10015iLH103..4D..GEN198908-200208

8889920090COVER, EVAPORATOR

main88899-20090

9009904306

main90099-04306

9009904321

main90099-04321

9009904950

main90099-04950

9009907053

main90099-07053

9011908326

main90119-08326

9011910079

main90119-10079

9011912160

main90119-12160

9017910132

main90179-10132

15 parts on this diagram · 4 diagrams in section
