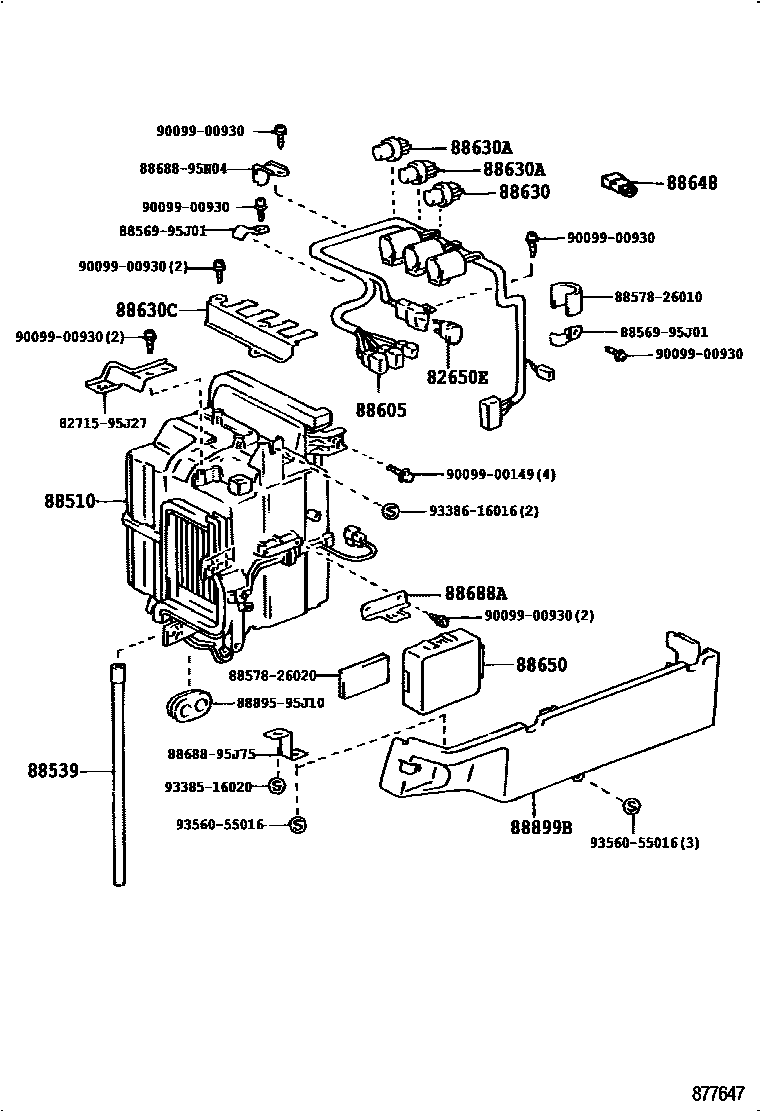

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT--SINGLE(DEALER OPT) 0002 1FRONT--DUAL(DEALER OPT) 0003 1FRONT(DEALER OPT) 0004 1FRONT(MAKER OPT) 0005 1FRONT--SINGLE 0006 1FRONT--DUAL 0007 1FRONT--SINGLE 0008 1FRONT--DUAL 0009 1FRONT 0010 1REAR UNIT(DEALER OPT) 0011 1REAR UNIT(MAKER OPT) 0012 1REAR UNIT 0013 1REAR UNIT 0014 1REAR UNIT BRACKET(DEALER OPT)0015 1REAR UNIT BRACKET(MAKER OPT) 0016 1REAR UNIT BRACKET(MAKER OPT) 0017 1REAR UNIT BRACKET(MAKER OPT) 0018 1O-RING

82650EBREAKER ASSY, WIRING CIRCUIT

main82650-35010iLH125,RZH103,125..SG..ARL198908-200602

20A

88510UNIT ASSY, COOLER

main88510-26420iLH162,172,184..5F..ARL;LH103,113,125,RZH103,113,125..ARL199308-200501

main88510-26430iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199308-200508

main88510-26510iLH113,172,RZH113..RHD..SRF..4D..STD..GEN;LH102,103,112,114,115,RZH102,103,104,112,114,115..RHD..GEN199308-200602

main88510-95J58iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

main88510-95J59iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-26150iRZH115..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)199308-200602

main88539-95701iLH10#,11#,125,RZH10#,11#,125198908-199508

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-26370iLH125..ARL;LH114,115,RZH104,114,125..RHD199308-199408

W(HEATER)

main88605-26400iLH102,103,112,113..RHD199308-199508

W(HEATER)

main88605-26410iLH102,103,112,113..RHD..GEN199308-199508

main88605-26420iRZH102,103,112,113..RHD199308-199508

W(HEATER)

main88605-26430iRZH102,112..RHD199308-199508

main88605-26440iLH104,105,112,114,115,RZH104,105,114,115..LHD..(09S,12S,15S)199308-199408

W(HEATER)

main88605-26450iLH104,105,114,115,RZH104,105,114,115..LHD..(GCC,GEN)199308-199408

main88605-26460iRZH112,113..LHD..STD199308-199508

W(HEATER)

main88605-26470iRZH112,113..LHD..STD..(GCC,GEN)199308-199508

main88605-26480iLH102,112,113..LHD..STD199308-199508

W(HEATER)

main88605-26490iLH102,112,113..LHD..STD..(GCC,GEN)199308-199508

main88605-26510iLH114,115,RZH104,114..RHD199308-199408

main88605-26740iLH125..ARL;LH114,115,RZH104,114,125..RHD199408-199508

W(HEATER)

main88605-26750iLH114,115,RZH104,114..RHD199408-199508

main88605-26760iRZH113..EFI199405-199408

main88605-26760iLH104,105,112,114,115,RZH104,105,113,114,115..LHD..(09S,12S,15S)199408-199508

W(HEATER)

main88605-26770iLH104,105,114,115,RZH104,105,114,115..LHD..(GCC,GEN)199408-199508

main88605-2F030iRZH102,103,104,114,115,125..RHD..4D..SG199508-199912

W(DUAL AIR CONDITIONER W/HEATER)

sub88605-2F490

main88605-2F040iRZH113..4D..06S;RZH104,105,112,114..RHD..SG..(03S,12S,15S)199508-200602

W(DUAL AIR CONDITIONER W/BOOST VENTILATOR)

main88605-2F050iRZH113..RHD..4D..STD;RZH102,103,112..RHD..STD199508-200501

W(SINGLE AIR CONDITIONER W/HEATER)

main88605-2F060iRZH112..4D..06S199907-200501

W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)

main88605-2F060iRZH113..RHD..4D..STD..GEN;RZH102,103,112..RHD..STD..GEN199508-200108

W(SINGLE AIR CONDITIONER W/O HEATER)

main88605-2F070iRZH103..09S..CBR;RZH102,112,113..LHD199508-200508

W(SINGLE AIR CONDITIONER W/HEATER)

main88605-2F080iRZH102,103,112,113..LHD199508-200508

main88605-2F090iLH114,172,174..RHD..SG199508-200602

W(DUAL AIR CONDITIONER W/HEATER)

main88605-2F090iLH184..5F..ARL199907-200501

main88605-2F100iLH114,115,174..RHD199508-200602

W(DUAL AIR CONDITIONER W/O HEATER)

main88605-2F100iLH172..06S..GL200008-200011

W(DUAL AIR CONDITIONER)

main88605-2F110iRZH10#,114,115..LHD..(09S,10S,12S,15S)199608-200508

W(DUAL AIR CONDITIONER W/HEATER)

main88605-2F120iRZH113..GCC;RZH10#,114,115..LHD..(09S,10S,12S,15S)..(GCC,GEN)199907-200508

W(DUAL AIR CONDITIONER W/BOOST VENTILATOR)

main88605-2F120iRZH10#,114,115..LHD..(09S,10S,12S,15S)..(GCC,GEN)199608-199907

W(DUAL AIR CONDITIONER)

main88605-2F130iLH172..GCC;LH104,105,113,114,115,164,166,174,176..LHD..SRF..STD199508-200501

W(DUAL AIR CONDITIONER W/HEATER)

main88605-2F130iLH105,115,166,176..CIS199808-199907

main88605-2F140iLH174199808-199907

main88605-2F140iLH172..GCC;LH104,113,114,115,154,174..LHD..(GCC,GEN)199907-200501

W(DUAL AIR CONDITIONER W/BOOST VENTILATOR)

main88605-2F140iLH102,104,114,115..LHD..(09S,12S,15S)..(GCC,GEN)199508-199907

W(DUAL AIR CONDITIONER W/O HEATER)

main88605-2F150iLH162..4FC;LH172..5D..06S200108-200501

main88605-2F150iLH172..06S..GL200011-200108

SINGLE AIR CONDITIONER

main88605-2F150iLH162,172..5F..ARL200008-200501

W(SINGLE AIR CONDITIONER)

main88605-2F150iLH162..5F..GEN;LH103,112,113..RHD;LH172..4D..06S..STD..DSL;LH172..RHD..03S..STD..GEN199508-200602

W(SINGLE AIR CONDITIONER W/HEATER)

main88605-2F160iLH172..06S..GL199508-200602

W(SINGLE AIR CONDITIONER)

main88605-2F160iLH172..HRF;LH162..06S..5F;LH172..RHD..5D..03S200008-200501

W(SINGLE AIR CONDITIONER W/O HEATER)

main88605-2F170iLH102,112,113,172..LHD199508-200501

W(SINGLE AIR CONDITIONER W/HEATER)

main88605-2F180iLH102,112,113..LHD..SRF199508-200501

W(SINGLE AIR CONDITIONER W/BOOST VENTILATOR)

main88605-2F460iLH172..DEFI200108-200501

main88605-2F490iRZH104,105,113,114..RHD..4D..SG199912-200602

W(DUAL AIR CONDITIONER W/HEATER)

main88605-2F680iRZH103..03S..GEN200207-200501

W(SINGLE AIR CONDITIONER W/HEATER)

main88605-95J47iRZH102,103,112,113..RHD..STD198908-199308

W(HEATER)

main88605-95J48iRZH102,112..LHD198908-199308

W(HEATER)

main88605-95J84iRZH102,112..RHD..4D;RZH102..RHD..5D..03S198908-199308

main88605-95J85iRZH102,112..LHD198908-199308

main88605-95J86iRZH103,104,114,125..RHD..4D..SG198908-199308

W(HEATER)

main88605-95J87iRZH104,114..LHD198908-199308

W(HEATER)

main88605-95J88iRZH104,114..RHD198908-199308

main88605-95J89iRZH104,114..LHD198908-199308

main88605-95N00iLH102,103,112,113..RHD198908-199308

W(HEATER)

main88605-95N01iLH102,112..LHD198908-199308

W(HEATER)

main88605-95N02iLH104,105,114,115,125..RHD198908-199308

W(HEATER)

main88605-95N10iLH102,103,112,113..RHD..GEN198908-199308

main88605-95N11iLH102,112..LHD198908-199308

main88605-95N12iLH104,114..LHD198908-199308

W(HEATER)

main88605-95N13iLH104,105,114,115..RHD198908-199308

main88605-95N14iLH104,114..LHD198908-199308

88630RELAY ASSY, COOLER

main88630-14030iLH103..4D..GEN;RZH102,103..03S..GEN199907-200602

SINGLE AIR CONDITIONER

main88630-14030iLH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD198908-199907

DEALER OPTION

main88630-14030iLH104,114,166,174,176..STD199703-200108

main88630-14030iLH105,115;LH174..GL;LH172..DEFI;RZH112..RHD..SP199907-200501

DUAL AIR CONDITIONER

main90987-02004iLH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)198908-199508

88630ARELAY ASSY, COOLER

main88630-26040iRZH105,113..RHD..4D..SG200108-200501

MARK 058700-4000

main88630-26040iRZH113..LHD..03S..GEN199907-200602

main88630-87201iRZH103,113..ARL200208-200501

main88630-95702iRZH125198908-200501

DEALER OPTION

main88630-95702iLH113,125,172,RZH125..STD..(DSL,EFI);LH10#,112,114,115,166,174,176,RZH10#,11#199608-200308

main88630-95702iRZH105,113..RHD..4D..SG199907-200501

MARK 058700-0360

main90987-03001iLH10#,11#,RZH10#,11#..CIS,GCC,GEN198908-199508

88630CBRACKET, COOLER RELAY

main88631-95J00iLH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD198908-199308

88648WIRING, COOLER, NO.1

main88648-95J24iLH172..06S..GL198908-200108

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLH172..06S..DSL;LH102,112,162..GEN;LH172..03S..STD..(GCC,GEN)198908-200602

main88650-26060iLH125..ARL;LH114,115..RHD199308-199408

main88650-26080iRZH104,114,125..RHD199308-199408

main88650-26090iRZH103,113..ARL199408-200501

DEALER OPTION,SINGLE AIR CONDITIONER

main88650-26090iRZH113..LHD..06S..GEN200208-200508

main88650-26100iRZH112..4D..06S199308-200108

main88650-26100iRZH112..RHD..SP;RZH102,112,113..LHD..CBR199907-200501

SINGLE AIR CONDITIONER

main88650-26110iLH125..ARL;LH104,105,112,114,115..09S,12S,15S199408-199508

main88650-26120iRZH113..DX199405-199508

main88650-26130iRZH104,105,114,115,125199408-199508

main88650-26250iRZH125199808-199907

main88650-26250iRZH113..CBR;RZH102,104,105,112,114,115..SG..(03S,10S,12S,15S)..CBR199508-200602

DUAL AIR CONDITIONER

main88650-26250iRZH104,114..RHD199907-200211

DUAL AIR CONDITIONER & W(BOOST VENTILATOR)

main88650-26260iRZH155;RZH113..GCC..EFI;RZH103,105,113,115..4D..SG..(GL,STD)..(GCC,GEN)..EFI199907-200508

main88650-26260iRZH102,103,105,115,125..4D..SG..EFI199511-200501

DUAL AIR CONDITIONER

main88650-26260iRZH103,105,115..LHD..GEN..EFI199907-200108

DUAL AIR CONDITIONER & W(BOOST VENTILATOR)

main88650-26260iRZH103,105,115..LHD..GEN..EFI199907-200206

DUAL AIR CONDITIONER & W(HEATER)

main88650-26270iLH174..SRF..GEN;LH104,114,166,176..12S,15S199508-200602

DUAL AIR CONDITIONER

main88650-26350iLH172..DEFI200108-200501

DUAL AIR CONDITIONER

main88650-26370iRZH103..03S..GEN200207-200501

main88650-26370iRZH105,113..RHD..4D..SG200206-200501

DUAL AIR CONDITIONER & W(HEATER)

main88650-60490iLH172..DEFI200108-200501

main88650-87101iRZH102,103,112,113..STD198908-199308

main88650-95J12iRZH103,104,114,125..4D..SG198908-199408

main88650-95J16iLH104,105,112,114,115..LHD..(09S,12S,15S)198908-199408

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88631-95J02iLH125,RZH103,125..SG..ARL198908-199308

main88688-95J86iLH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD198908-199308

88899BCOVER, COOLER CONTROL

main88891-26050iLH125..4FC;RZH103,113..ARL;LH162,172..5F..ARL198908-200501

DEALER OPTION

sub88891-95J27

main88891-26050iLH125..4FC;RZH103,113,125..ARL199808-199907

sub88891-95J27

main88891-26130iRZH113,115..GCC..EFI;LH114,RZH113..LHD..(06S,10S)..GEN200108-200508

main88891-26130iRZH113,115..LHD..4D..(CIS,GEN)..EFI;LH114,RZH113,115..LHD..(03S,06S,15S)..(CBR,DSL);LH102,104,105,112,113,115,154,164,166,17#,RZH10#,112,114,155..LHD199808-200508

DEALER OPTION

main88891-95J27iRZH103..03S..GEN198908-200602

main88891-95J29iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD198908-200508

W(AIR CONDITIONER)

8271595J27BRACKET,WIRING HARNESS CLAMP

main82715-95J27

8856995J01CLAMP (FOR COOLER RELAY)

main88569-95J01

8857826010PAKING, COOLER AIR DUCT

main88578-26010

8857826020PAKING, COOLER AIR DUCT

main88578-26020

8868895J75BRACKET, COOLER DIAPHRAGM

main88688-95J75

8868895N04BRACKET, COOLER DIAPHRAGM

main88688-95N04

8889595J10HOLDER, FUSE

main88895-95J10

9009900149

main90099-00149

9009900930

main90099-00930

9338516020

main93385-16020

9338616016

main93386-16016

9356055016

main93560-55016

23 parts on this diagram · 18 diagrams in section
