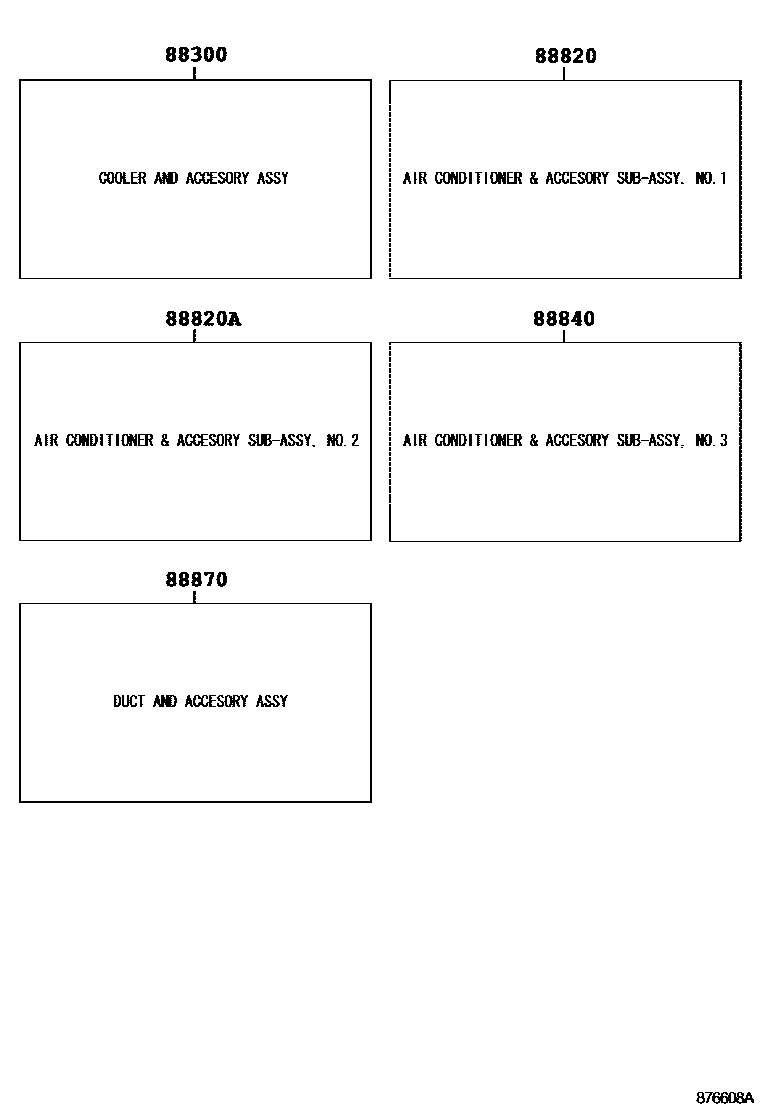

HEATING & AIR CONDITIONING - SET

88300COOLER & ACCESSORY ASSY

main80830-26270iRZH103,113..ARL199608-199808

main80830-26280-B0iRZH125199608-199808

LT. BLUISH GRAY,TRIM1#

main80830-26290iLH103,113..ARL199608-199808

main80830-26300-B0iLH125..5F..ARL199608-199907

LT. BLUISH GRAY,TRIM1#

main80830-26370iLH172..4FC200008-200208

main80830-26630iRZH103,113..ARL199808-200308

main80830-26640iLH103,113..ARL199808-200208

main80830-26650-B0iRZH125199808-200501

LT.BLUISH GRAY,TRIM1#

main80830-26660-B0iLH184..5F..ARL199907-200208

LT.BLUISH GRAY,TRIM1#

main80830-26690-B0iLH184..4FC200008-200501

LT. BLUISH GRAY,TRIM1#

main80830-26740iLH162,172..ARL200208-200308

main80830-26800iRZH103,113..4FC200308-200501

main80830-26810iLH162..ARL200308-200501

main88300-2F280iRZH103,113..ARL199508-199608

main88300-2F290-B0iRZH125199508-199608

LIGHT GRAY,TRIM1#

main88300-2F300iLH103,113..ARL199508-199608

main88300-2F610-B0iLH125..ARL199508-199608

LIGHT GRAY,TRIM1#

main88300-2F720-B0iLH184..5F..ARL200208-200501

LT. BLUISH GRAY,TRIM1#

main88300-95U21iRZH103,113..STD..ARL198908-199308

main88300-95U22iRZH103..GL198908-199108

main88300-95U24iRZH125198908-199308

main88300-95U25iLH103,113..ARL198908-199308

main88300-95U26iLH125198908-199308

main88300-95U27iRZH102,103,112,113..RHD..GEN198908-199308

W(HEATER)

main88300-95U28iRZH102,112..RHD..4D;RZH102..RHD..5D..03S198908-199308

W(BOOST VENTILATOR)

main88300-95U29iLH102,103,112,113..06S198908-199308

W(HEATER)

main88300-95U30iLH102,103,112,113..06S198908-199308

W(BOOST VENTILATOR)

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-26110iLH162,172,RZH103,113..ARL200308-200501

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-26690iRZH103,113..ARL200308-200501

main88830-26700iLH162,172..ARL200308-200501

88840AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3

main88840-26180iLH162,172,RZH103,113..ARL200308-200501

88870DUCT AND ACCESSORY ASSY

main88870-26590iLH162,172,RZH103,113..ARL200308-200501

5 parts on this diagram · 1 diagram in section
