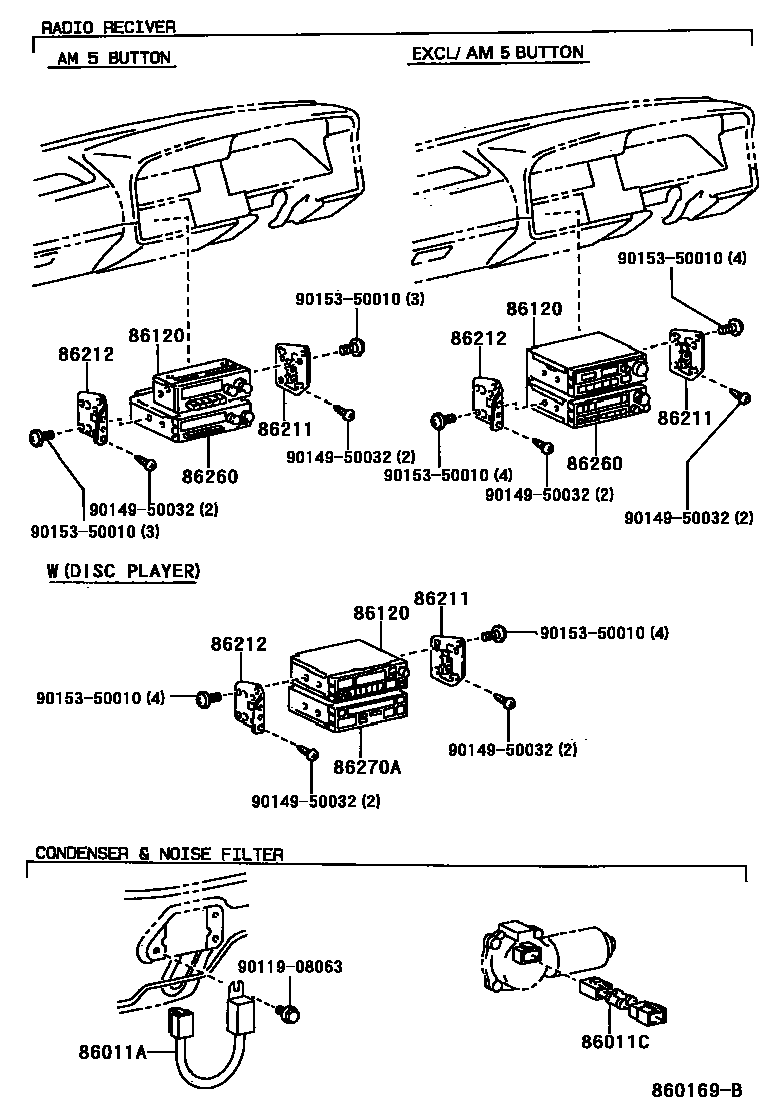

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
main90980-04143iRZH105,115..STD..CIS;RZH103,125,135,153..RHD;RZH113..4D..STD..(ARL,GEN)199809-200508
86011CFILTER, NOISE
86120RECEIVER ASSY, RADIO
main86120-10460iRZH112..5D;RZH114,115..15S;LH174,RZH112..03S,12S,15S;LH10#,11#,125,162,164,172,184,RZH10#,113,125199808-200501
MATSUSHITA, ID=52202,AM/FM 2 SPEAKER (9KHZ),NO.12
MW/SW,NO.1
main86120-16650iLH172..03S..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113,114..4D..(03S,06S,15S)..GEN;RZH102,103,112..SRF..(03S,06S,10S)..GEN;LH102,103,104,11#,184,RZH103,104,115..(199808-200501
MATSUSHITA, ID=52201,AM/FM 2 SPEAKER (10KHZ),NO.12
FUJITSU TEN,ID=17409,AM/FM CASSETTE 2 SPEAKER (9KHZ),NO.13
main86120-16670iRZH112..5D;LH174..STD..GEN;RZH112,114,115..(03S,15S)..GEN;LH102,103,104,11#,162,172,184,RZH10#,113..GEN199808-200501
FUJITSU TEN,ID=17410,AM/FM CASSETTE 2 SPEAKER (10KHZ),NO.13
main86120-17280iRZH113..LHD..EFI;RZH114..LHD..GEN;RZH103,113..(GCC,GEN)..CBR;LH10#,11#,RZH102,104,105,112,115..CIS,GCC,GEN199205-199808
AM/FM ETR CASSETTE (AM=9KHZ STEP),NO.6
AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER,NO.6
NO.11
AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER,NO.11
AM/FM ETR (AM=9KHZ STEP) 2 SPEAKER,NO.4
main86120-1A020iRZH113..03S;RZH113..06S..GCC;RZH113..06S..EFI;LH112..(GL,STD)..GEN;LH125,RZH103..03S,09S,14S;LH10#,113,114,115,RZH102,104,105,112,114,115,125..ARL,GCC,GEN199205-199808
AM/FM ETR 2 SPEAKER,NO.5
AM/FM,NO.3
main86120-2A070iRZH113..03S..GEN;RZH113..06S..EFI;LH112..(GL,STD)..GEN;RZH103..(03S,09S)..GEN;LH102,103,104,113,114,115,RZH102,104,105,112,114,115..GEN199205-199808
AM/FM ETR (AM=5KHZ STEP) 2 SPEAKER,NO.7
AM/SW1/SW2 ETR CASSETTE,NO.6
sub86120-35100
main86120-2B610iLH174..GL;LH115,174,RZH115..GCC;RZH105..STD..(GCC,GEN);LH104,114,166,176,RZH104,113,114..08S,10S,12S,15S199808-199907
FUJITSU TEN,ID=17411,AM/FM CASSETTE 4 SPEAKER (9KHZ),NO.13
FUJITSU TEN,ID=17411,AM/FM CASSETTE 4 SPEAKER (9KHZ) OR AM/FM CD CASSETTE 4 SPEAKER (9KHZ),NO.13
AM/FM ETR 2 SPEAKER,NO.9
main86120-35050iRZH113..LHD..STD;LH10#,11#,125,RZH102,104,105,112,114,115..(GL,STD)..(CIS,GCC,GEN)199205-199808
AM ETR CASSETTE,NO.6
main86120-35080iRZH114,115..15S;LH125,RZH102,103..03S,06S,09S,10S,14S;LH10#,11#,166,172,176,184,RZH104,105,112,113,125..GL,STD199205-199907
MATSUSHITA,ID=52100,AM,NO.8
sub86120-60N00
MATSUSHITA,ID=52100,AM 1 SPEAKER (9KHZ),NO.8
sub86120-60N00
main86120-35090iRZH113..03S..GEN;RZH113..06S..EFI;LH112..(GL,STD)..GEN;RZH103..(03S,09S)..GEN;LH102,103,104,113,114,115,RZH102,104,105,112,114,115..GEN199205-199808
AM/FM ETR CASSETTE (AM=5KHZ STEP) 4 SPEAKER,NO.6
MATSUSHITA,ID=52101,AM 1 SPEAKER (10KHZ),NO.8
main86120-35110iRZH113..03S..GEN;RZH113..06S..EFI;RZH103..(03S,09S)..GEN;LH112,RZH114,115..(03S,06S,15S)..GEN;LH102,103,104,113,114,115,172,184,RZH102,104,105,112..GEN199205-199907
MATSUSHITA,ID=52101,AM ETR,NO.8
MATSUSHITA, ID=57101,AM CASSETTE 2 SPEAKER (9KHZ),NO.14
MATSUSHITA, ID=57101,AM/FM CASSETTE 2 SPEAKER (9KHZ),NO.14
FUJITSU TEN,ID=13302,NO.11
FUJITSU TEN,ID=13302,MW/UKW/LW,NO.11
AM/FM,NO.2
86211BRACKET, RADIO, NO.1
main86211-95J11iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD198908-200208
86212BRACKET, RADIO, NO.2
86260TAPE PLAYER ASSY
86270ADISC PLAYER ASSY
9011908063
main90119-08063
9014950032
main90149-50032
9015350010
main90153-50010
10 parts on this diagram · 4 diagrams in section
