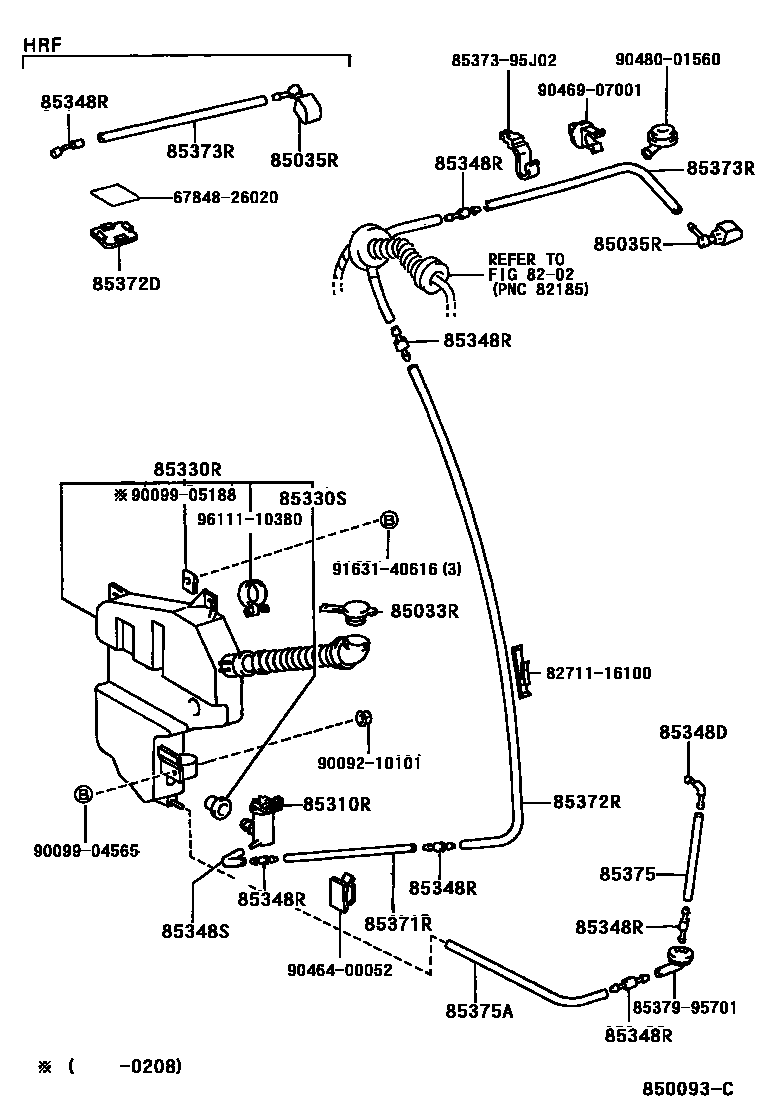

REAR WASHER

8202

85033RCAP ASSY, REAR WASHER

main85332-95J03iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-95J08iRZH112..LHD;RZH112..RHD..SP;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,135,15#..SMRF,SRF198908-200208

main85035-95J09iLH113,125,172,174,184,RZH112,114,115,125..HRF198908-199907

85310RMOTOR ASSY, REAR WASHER

main85310-22080iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH113,125,RZH102,114,125;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..198908-200208

85330RJAR ASSY, REAR WASHER

main85330-95J08iLH10#,11#,125,RZH10#,11#,125198908-200208

85330SBUSH, REAR WASHER JAR

main90099-32089iLH10#,11#,125,RZH10#,11#,125198908-200208

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iRZH112..4D..06S198908-200208

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iLH112,125,RZH114,125..HRF198908-200208

main85355-32020iLH113,125,172,174,184,RZH112,114,115,125..HRF198908-199907

NOZZLE SIDE

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iLH10#,11#,125,RZH10#,11#,125198908-200208

L=1000(*H,L=170)

main90446-06013iLH10#,11#,125,RZH10#,11#..03S,06S,09S,12S,15S199308-199808

L=170

85372DGROMMET, REAR WASHER HOSE

main90950-01724-08iLH112,RZH114..HRF198908-199308

IVORY,TRIM1#

sub90950-01724

main90950-01724-B0iLH125,RZH114..HRF..GEN199308-199608

LI. GRAY,TRIM1#

sub90950-01724

main90950-01724-B1iLH113,172,174,184,RZH112,114,115..HRF..(CIS,GEN)199907

LT. BLUISH GRAY,TRIM1#

sub90950-01724

main90950-01724-B1iLH113,125,184,RZH114,115..HRF..(CIS,GEN)199608-199907

LT.BLUISH GRAY,TRIM1#

sub90950-01724

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06006iLH112,114,125,RZH114..HRF..GEN199308-199808

L=2000(*H,L=1380)

main90446-06006iLH112,125,RZH114,125..HRF198908-199308

L=2000(*H,L=1180)

main90446-06006iLH125,RZH125..ARL199308-199907

L=2000(*H,L=1210)

main90446-06013iRZH103..RHD..EFI;RZH105,115..STD..CIS;LH172,174..(03S,10S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH114,RZH103,105,113,115199308-200208

L=1000

main90446-06013iLH10#,11#,RZH10#,11#..SRF198908-199308

L=1000(*H,L=980)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iRZH112..LHD;RZH112..RHD..SP;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,135,15#..SMRF,SRF198908-199907

L=1450(*H,L=390)

main90099-33080iRZH103..RHD..EFI;RZH105,115..STD..CIS;LH172,174..(03S,10S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH114,RZH103,105,113,115198908-200208

L=1450(*H,L=600)

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main90446-06013iLH10#,11#,125,RZH10#,11#,125198908-200208

L=1000(*H,L=280)

main90446-06013iLH10#,11#,125,RZH10#,11#..03S,06S,09S,12S,15S199308-199808

L=1000(*H,L=270)

85375AHOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)

main90099-33299iRZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S).199010-200208

L=1000(*H,L=420)

main90446-06013iLH10#,11#,125,RZH10#,11#..03S,06S,09S,12S,15S198908-199808

L=1000(*H,L=420)

6784826020COVER, BACK DOOR SERVICE HOLE, LH

main67848-26020

8271116100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16100

8537395J02HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-95J02

8537995701JOINT

main85379-95701

9009210101

main90092-10101

9009904565

main90099-04565

9009905188

main90099-05188

9046400052

main90464-00052

9046907001

main90469-07001

9048001560

main90480-01560

9163140616

main91631-40616

9611110380

main96111-10380

27 parts on this diagram · 1 diagram in section
