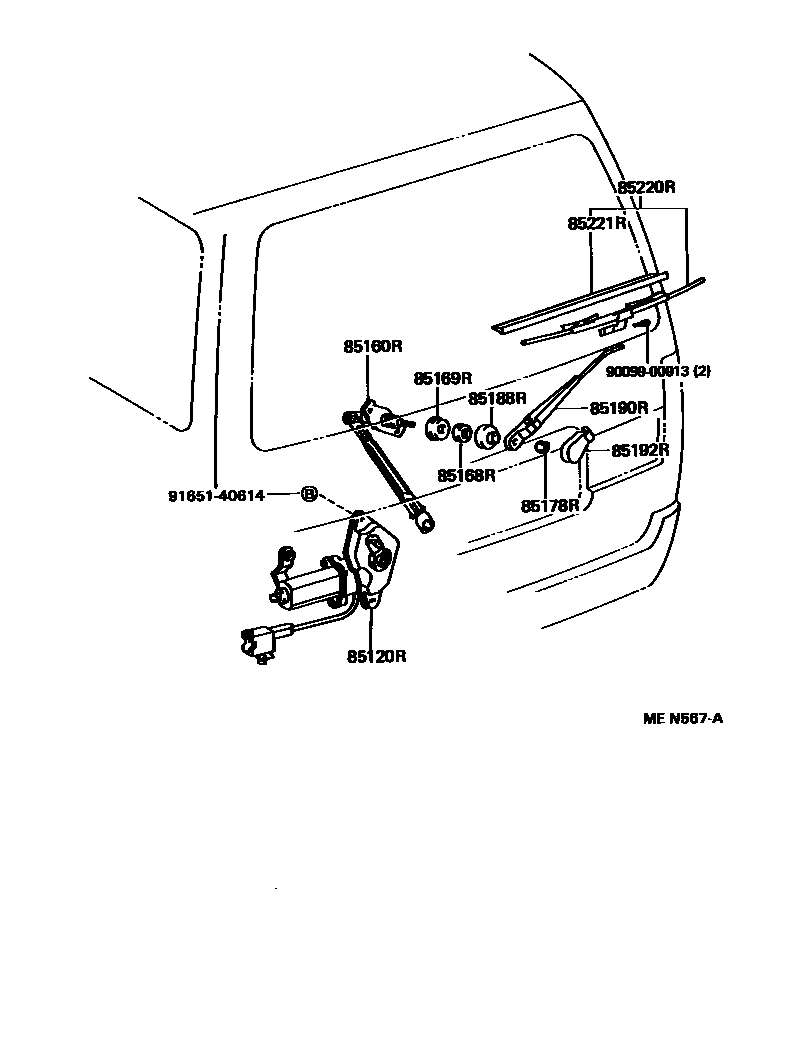

REAR WIPER

0001 1 0002 1

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-95J00iLH10#,11#,125,RZH10#,11#,125198908-199508

main85130-26060iRZH112..4D..06S199508-200208

85160RLINK ASSY, REAR WIPER

main85160-95J04iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,155198908-200208

main85170-26040iLH154,RZH135,153..03S,10S,12S199611-200501

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-95700iRZH112..4D..06S198908-200208

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-95J01iLH10#,11#,125,RZH10#,11#,125198908-200208

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iLH10#,11#,125,RZH10#,11#,125198908-199006

sub90179-06159

main90179-06125iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199905-200208

main90179-06158iLH113,125,184,RZH114,115,125;LH10#,112,114,115,166,17#,RZH10#,112,113,135,153..SMRF,SRF199006-199905

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-95J00iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH113,125,RZH102,114,125;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..198908-200208

85190RARM ASSY, REAR WIPER

main85190-95J17iLH10#,11#,125,RZH10#,11#,125198908-199608

main85241-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199608-200208

85192RCOVER, REAR WIPER ARM

main85195-95J01iLH10#,11#,125,RZH10#,11#,125198908-199608

85220RBLADE ASSY, REAR WIPER

main85220-20380iLH10#,11#,125,RZH10#,11#,125198908-199608

sub85220-12601

main85242-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199608-200208

85221RBLADE, REAR WIPER

main85221-91C01iLH10#,11#,125,RZH10#,11#,125198908-199608

sub85214-12H90

9009900913

main90099-00913

9165140614

main91651-40614

12 parts on this diagram · 2 diagrams in section
