AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-26160iRZH153200008-200501

main89170-26180iRZH103..06S;RZH103,113..ARL;LH172,RZH113,125..4D..SG..STD..(DSL,EFI)199808-200501

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-26190iLH164,166,174,176,RZH115..CIS;RZH105,115,155..LHD..(11S,12S)199808-200508

W(*80,DRIVER SIDE)

89176LABEL, AIRBAG SENSOR COVER CAUTION

main89176-26030iLH164,166,174,176,RZH115..CIS;RZH105,115,155..LHD..(11S,12S)199808-200508

89179ACOVER, AIRBAG SENSOR

main89179-26070-B0iLH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199808-200501

BLUISH GRAY,TRIM1#

9014980023

main90149-80023

9018905016

main90189-05016

9356055014

main93560-55014

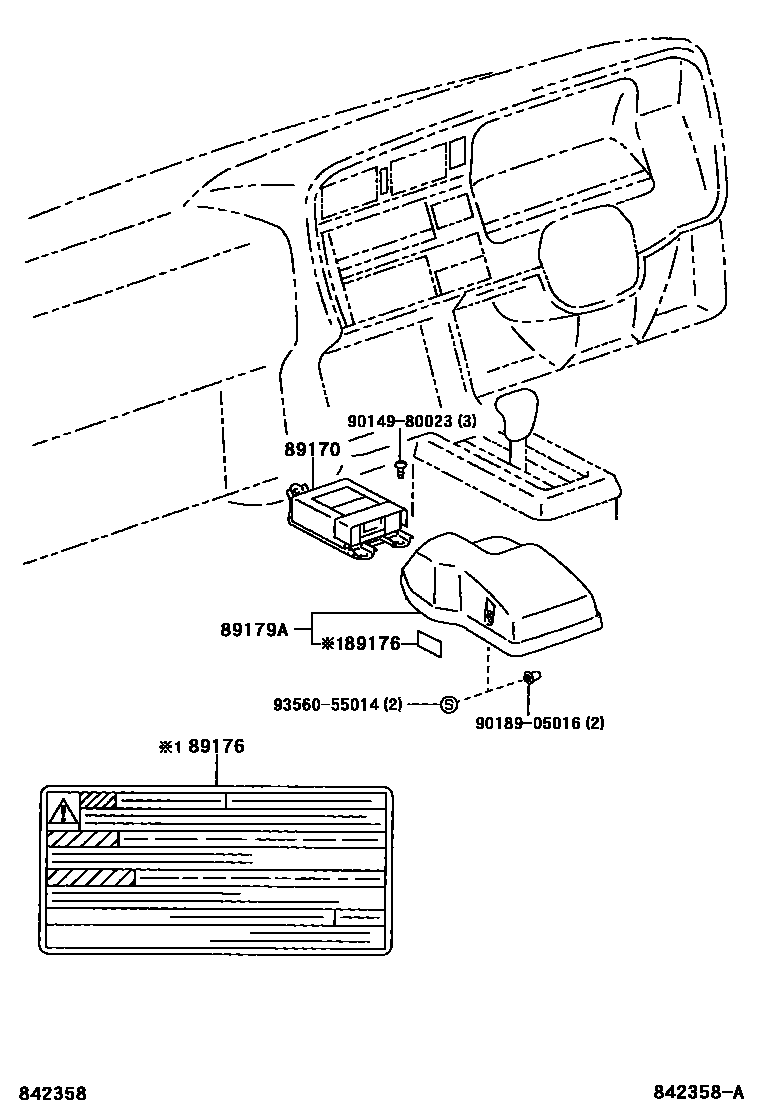

6 parts on this diagram · 1 diagram in section
