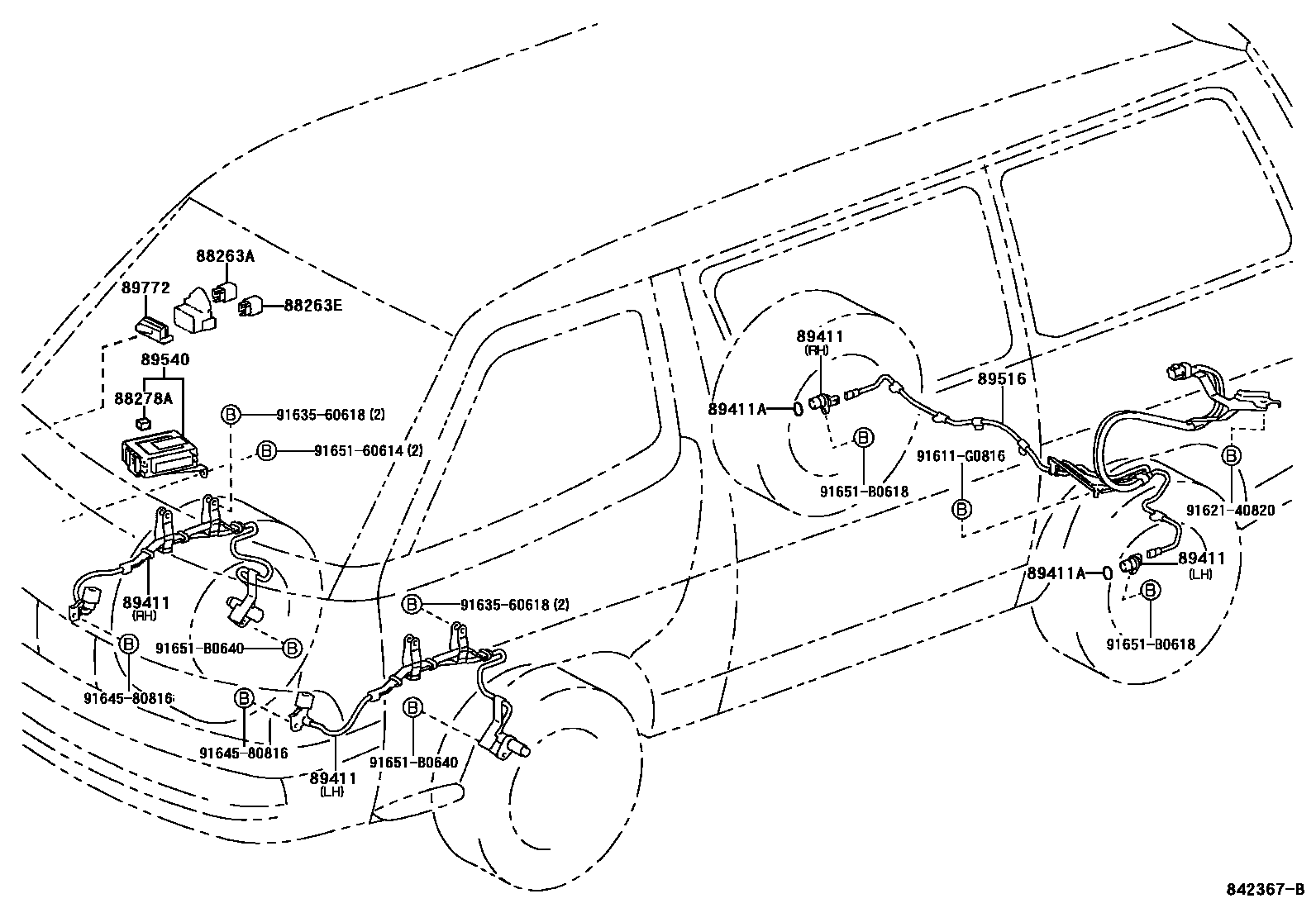

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-24030iRZH105..CBR199808-200501

88263ERELAY, SKID CONTROL NO.2

main88263-14110iRZH153199808-200501

88278ACUSHION, SKID CONTROL COMPUTER

main88278-50010iLH113,115..GCC199907-200501

89411SENSOR, SPEED

main89542-26090iLH113,115,RZH105,113,115..GCC199808-200501

FRONT RH

main89543-26090iLH184,RZH125..ARL;LH172,RZH113..5F..ARL199808-200501

FRONT LH

main89545-26050iRZH153200008-200501

REAR RH

main89545-35020iLH162,RZH103..5F..ARL199808-200501

REAR RH

main89546-26050iRZH153200008-200501

REAR LH

main89546-35020iLH172,174,RZH113,115..GCC199808-200501

REAR LH

89411ARING, O (FOR SPEED SENSOR)

main96723-19021iRZH103,113..4FC199808-200501

89516WIRE, SKID CONTROL SENSOR

main89516-26030iLH113,115,RZH105,113,115..GCC199808-199907

main89516-26040iLH184,RZH125..ARL;LH172,RZH113..5F..ARL200108-200501

main89516-26060iRZH105..CBR199907-200501

89540COMPUTER ASSY, SKID CONTROL

main89540-26230iLH184,RZH125..ARL;LH172,RZH113..5F..ARL200108-200501

main89540-26260iRZH105..CBR199808-200501

main89540-26370iRZH153200208-200501

main89540-26450iRZH155..GEN200009-200501

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iLH113,115,RZH105,113,115..GCC199808-200501

91611G0816

main91611-G0816

9162140820

main91621-40820

9163560618

main91635-60618

9164580816

main91645-80816

9165160614

main91651-60614

91651B0618

main91651-B0618

91651B0640

main91651-B0640

15 parts on this diagram · 2 diagrams in section
