SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1INSTRUMENT PANEL SWITCHES 0004 1INSTRUMENT PANEL SWITCHES 0005 1COWL RELAY & SWITCHES 0006 1COWL RELAY & SWITCHES 0007 1INSTRUMENT PANEL RELAY 0008 1INSTRUMENT PANEL RELAY 0009 1INSTRUMENT PANEL RELAY 0010 1INSTRUMENT PANEL RELAY 0011 1INSTRUMENT PANEL RELAY 0012 1INSTRUMENT PANEL RELAY 0013 1IGNITION & COMBINATION SWITCH0015 1IGNITION & COMBINATION SWITCH0016 1FRONT DOOR SWITCHES 0017 1ROOF, FRONT FLOOR RELAY & SWI0018 1ROOF, FRONT FLOOR RELAY & SWI0019 1DOOR CONTROL 0020 1REAR FLOOR, BACK DOOR RELAY &

28621RESISTOR, GLOW PLUG

main28621-54080i2L..LH104,114..LHD199010-199808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLH10#,11#,125,RZH10#,11#,125199308-199608

DENSO

main83420-16040iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199205-200208

main83420-20020iLH10#,11#,125,RZH10#,11#,125198908-199308

main83420-20030iRZH10#,11#,125199308-199411

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14040iRZH10#,11#,125198908-199205

sub83530-30080

main83530-14060iRZH10#,11#,125199205-199411

sub83530-30090

main83530-28020iRZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113,114,125..4D..(GL,STD)..(ARL,GEN);RZH102,103,104,112,135,153..(SMRF,SRF)..(03S,06S,10S,12S)199808-200208

main83530-28020iRZH10#,11#,125,135,153199803-199808

DENSO

main83530-30060iLH10#,11#,125198908-199803

YAZAKI

sub83530-60030

main83530-30090iRZH10#,11#,125,135,153199411-199808

YAZAKI

sub83530-60020

main83530-60030iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184199808-200008

main83530-60030iLH10#,11#,125199803-199808

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#..5F198908

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-22180iRZH103,113,114..4FC198908-199202

sub84540-22181

main84540-22181iRZH103,113..4FC199202-199308

main84540-26020iLH103,113..4FC198908-199308

main84540-30290iLH103,113,RZH103,113..4FC199308-199508

main84540-30290iLH103,113,125,RZH103,113,125..4FC199508-199907

TOKAIRIKA

main84540-30290iLH103,113,125,162,172,184,RZH103,113,125..4FC199907-200501

TOKAI RIKA

main84540-30300iLH103,113,125,RZH103,113,125..4FC199508-200501

MATSUSHITA

89420FSENSOR ASSY, VACUUM

main89420-26080iLH172,184199808-199907

main89420-26100iLH174..RHD..SRF;LH172..RHD..5D..03S;LH172,184..(03S,15S)..GL199907-200501

89421DSENSOR, TURBO PRESSURE

main89421-12102iLH172,184199808-200501

main89421-12150iLH172..DEFI200312-200501

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLH112..LHD..03S199010-200501

89437COVER, SENSOR

main89437-26010iLH103,113..4FC198908-199308

89491SENSOR, ENGINE OIL LEVEL

main89491-26010iLH10#,11#,125198908-199205

main89491-26040iRZH10#,11#,125198908-199101

sub89491-26041

main89491-26041iRZH10#,11#,125199101-199205

main89491-26061iRZH10#,11#,125,135,153199205-199711

sub89491-26062

main89491-26062iRZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;RZH102,104,112,135,153..SMRF,SRF199711-200208

main89491-26110iLH104,114..LHD199108-199205

*EX-USSR SPEC

sub89491-26111

main89491-26110iLH10#,11#,125199205-199708

sub89491-26111

main89491-26111iLH174..GL;LH172..RHD;LH10#,11#,125,184199708-200008

subS8346-01580

main89491-26160iLH166,176199808-200408

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLH125..ARL;LH10#,11#,125..(SMRF,SRF)..(ARL,GCC,GEN)199708-200208

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606095

main90116-06095

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9165160614

main91651-60614

9331915008

main93319-15008

9338516025

main93385-16025

9461310601

main94613-10601

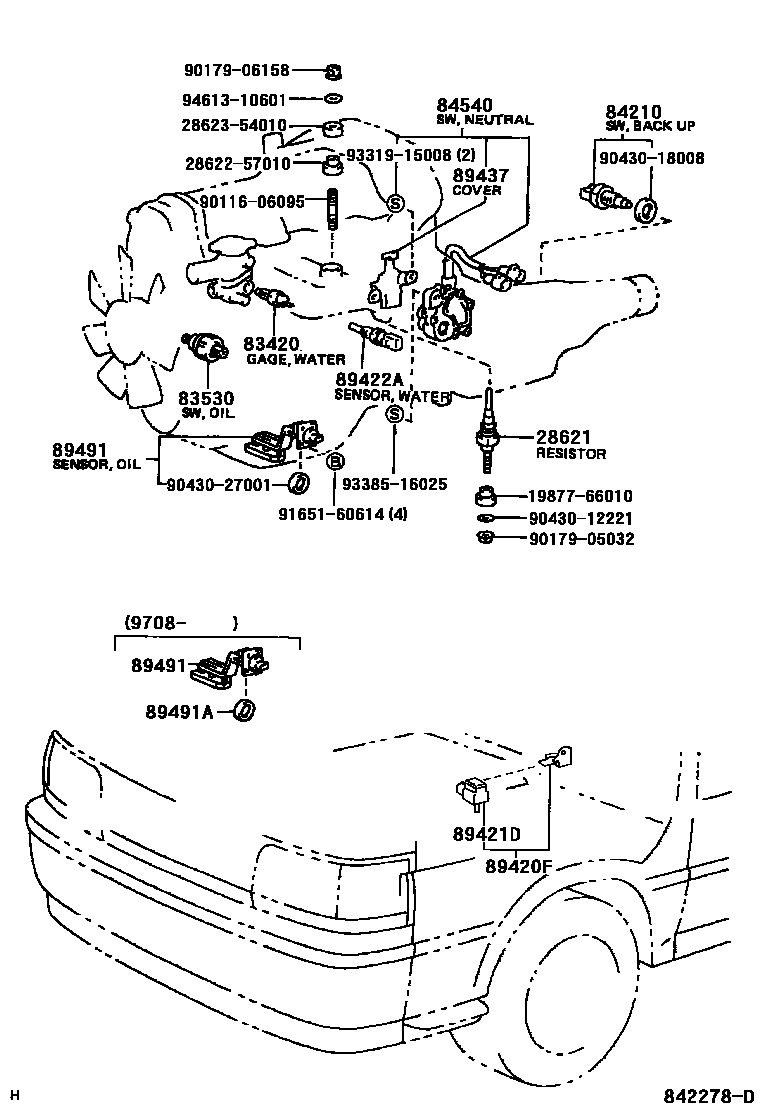

24 parts on this diagram · 19 diagrams in section
