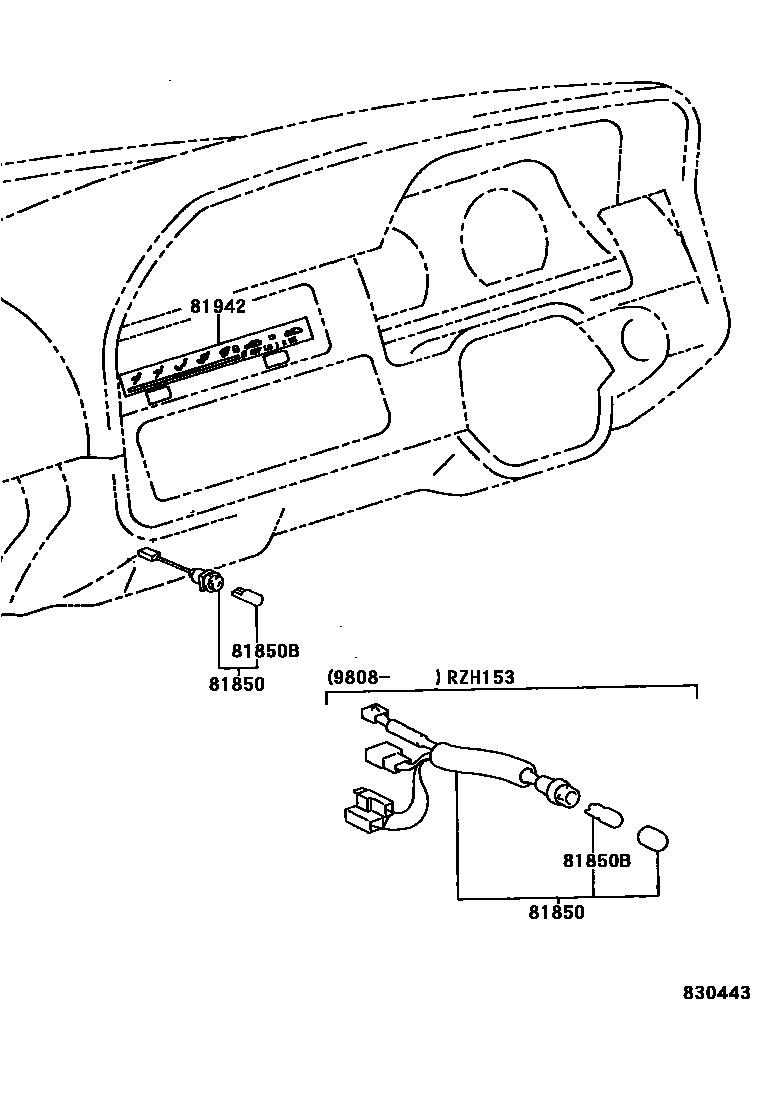

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-95J00iRZH115..GL;LH174,RZH102,103,114,135..(SMRF,SRF)..(DX,GL)198908-200508

main82285-26011iRZH153199808-200501

81850BBULB, INDICATOR LAMP

main90981-11014iRZH115..GL,SGL;LH154,174,RZH102,103,113,114,135,15#..(SMRF,SRF)..(DX,GL)198908-200508

14V 1.4W

81942SHEET, HEATER CONTROL NAME

main81942-22040iLH10#,11#,125,RZH10#,11#,125..RHD198908-199205

W(HEATER)

main81942-22050iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199205

W(BOOST VENTILATOR)

main81942-22070iLH102,104,112,114,RZH102,104,112,114..LHD198908-199205

W(BOOST VENTILATOR)

main81942-22080iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199205

W(AIR CONDITIONER & BOOST VENTILATOR)

main81942-22080iRZH102,112..RHD;LH102,112,113..06S199205-199308

W(AIR CONDITIONER,DEALER OPTION & BOOST VENTILATOR)

main81942-22090iLH102,104,112,114,RZH102,104,112,114..LHD198908-199205

W(AIR CONDITIONER & BOOST VENTILATOR)

main81942-26010iRZH103..03S..GEN199205-200108

W(HEATER)

main81942-26010iLH162,172,184..ARL200008-200501

main81942-26010iLH162..03S..GEN;LH174,RZH105,113..RHD..SRF..(08S,12S,15S)199907-200501

W(AIR CONDITIONER & HEATER)

main81942-26020iLH102,104,105,11#,RZH10#,11#..LHD..(GL,SGL,STD)..(GCC,GEN)199205-199808

W(BOOST VENTILATOR)

main81942-26030iLH102,104,105,11#,RZH10#,11#..LHD199205-199808

W(HEATER)

main81942-26040iRZH113..DX;RZH112..4D..06S199205-200108

W(AIR CONDITIONER & BOOST VENTILATOR)

main81942-26040iLH172..06S..GL200008-200011

W(AIR CONDITIONER)

main81942-26050iLH102,104,105,11#,RZH10#,11#..LHD..(GL,SGL,STD)..(GCC,GEN)199205-199808

W(AIR CONDITIONER & BOOST VENTILATOR)

main81942-26060iRZH112..4D..06S199205-200208

W(BOOST VENTILATOR)

main81942-26060iRZH113..DX199907-200108

main81942-26100iLH174,RZH113..LHD..(03S,06S,10S);LH102,104,11#,RZH10#,112,114,115..LHD..(GCC,GEN)..(CBR,DSL)199808-200508

W(BOOST VENTILATOR)

sub81942-26120

main81942-26110iRZH113..LHD;LH102,104,11#,RZH10#,112,114,115..LHD..(GCC,GEN)..(CBR,DSL)199808-200008

W(AIR CONDITIONER & HEATER)

sub81942-26030

main81942-26110iRZH113..GCC;LH115,RZH105,114,115..LHD..(GCC,GEN);LH172,174,RZH113..LHD..(03S,15S)..(CIS,GEN);LH102,104,112,113,114,164,RZH102,103,104,112,155..LHD..SRF199907-200508

W(AIR CONDITIONER & HEATER) OR W(HEATER)

sub81942-26030

main81942-26110iLH105,113,115,166,176,RZH105,115..CIS199808-200408

W(AIR CONDITIONER)

sub81942-26030

main81942-26110iLH172,174..GCC;RZH113..LHD..06S..GEN200008-200508

W(HEATER)

sub81942-26030

main81942-26120iLH172,174,RZH113..GCC..(DSL,EFI);RZH103,105,115..LHD..(GCC,GEN)..EFI199808-200508

W(AIR CONDITIONER & BOOST VENTILATOR)

main81942-26120iLH172,174,RZH113..GCC..(DSL,EFI);RZH103,105,115..LHD..(GCC,GEN)..EFI199907-200508

W(AIR CONDITIONER)

main81942-95J00iLH102,104,112,114,RZH102,104,112,114..LHD198908-199205

W(HEATER)

3 parts on this diagram · 1 diagram in section
