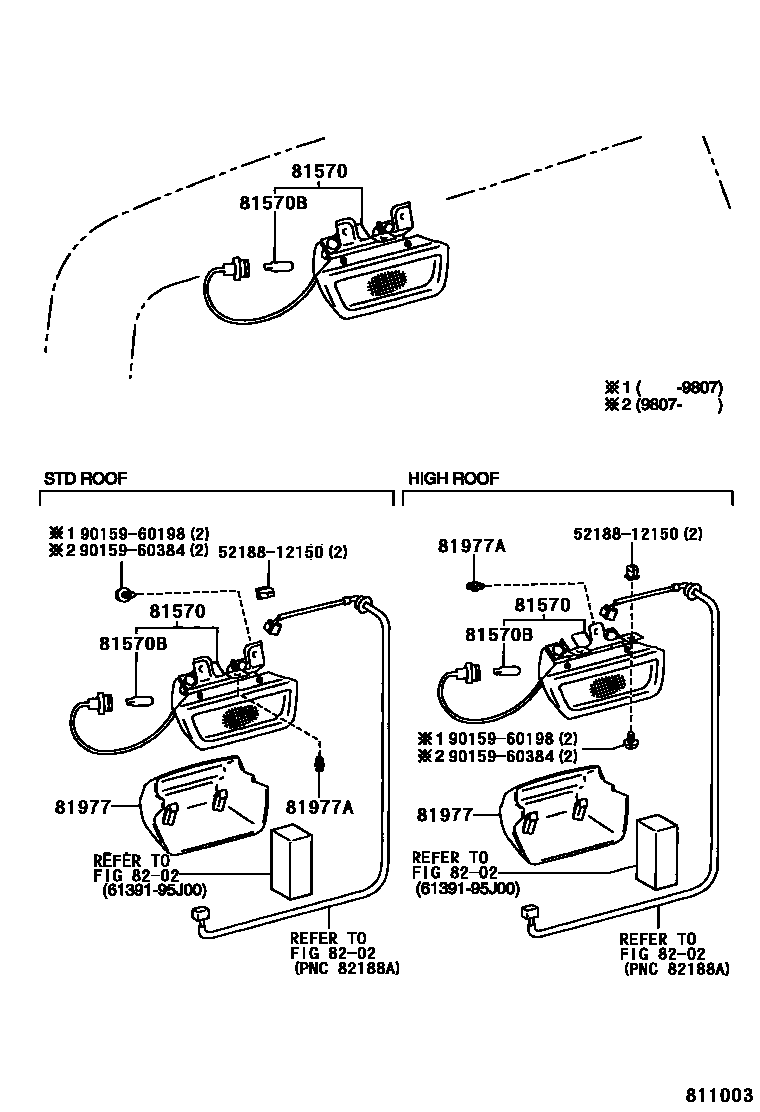

CENTER STOP LAMP

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1 0004 15 BULB 0005 11 BULB

81570LAMP ASSY, CENTER STOP

main81570-26010iRZH135,153199611-199907

main81570-26020iLH103,113,RZH103,113..ARL199508-199907

DEALER OPTION,W(HIGH MOUNT STOP LAMP BULB TYPE)

sub81570-26021

main81570-26020iLH103,113,RZH103,113..ARL199205-199508

sub81570-26021

main81570-26030iRZH114..HRF..STD;LH112,125,RZH125..HRF199508-199907

DEALER OPTION,W(HIGH MOUNT STOP LAMP BULB TYPE)

main81570-26030iLH125,RZH125..ARL199205-199508

main81570-26050iLH113,125,172,174,184,RZH112,114,115,125..HRF199907

main81570-26090iRZH114..RHD;LH102,125,RZH103,104,105,112,114..(HRF,SRF)..GL199608-199907

MAKER OPTION,W(HIGH MOUNT STOP LAMP BULB TYPE)

main81570-26120iLH154,RZH135,15#199907-200501

main81570-26130iRZH112..LHD;RZH112..RHD..SP;LH10#,11#,16#,17#,184,RZH10#,113,114,115..SMRF,SRF199907-200208

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iRZH114..STD;RZH114..SRF..GL;LH10#,11#,125,RZH10#,112,113,115,125199205-199907

12V 16W

sub90981-11059

main90981-11059iRZH112..4D..06S199907-200208

12V 16W

main99132-11210iLH113,125,172,174,184,RZH112,114,115,125..HRF199907

12V 21W

main99132-12050iLH154,RZH135,15#199907-200501

12V 5W

81977COVER, CENTER STOP LAMP

main81977-26010iRZH114..STD;RZH114..SRF..GL;LH10#,11#,125,RZH10#,112,113,115,125199205-199907

main81977-26020iLH103..4D..GEN;RZH102,103..03S..GEN199907-200208

main81977-26050iLH154,RZH135,15#199907-200501

81977ACLIP (FOR CENTER STOP LAMP)

main90467-05031-23iRZH10#,112,114..(DX,SGL,STD)..(ARL,GCC,GEN);LH10#,11#,125,RZH113,115,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN)199608-199907

BLUISH GRAY,TRIM1#

sub90467-05031

main90467-05031-E0iLH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN199205-199608

LIGHT SABLE,TRIM1#

sub90467-05031

8202

5218812150CUSHION, REAR BUMPER ARM, LH

main52188-12150

9015960198

main90159-60198

9015960384

main90159-60384

8 parts on this diagram · 5 diagrams in section
