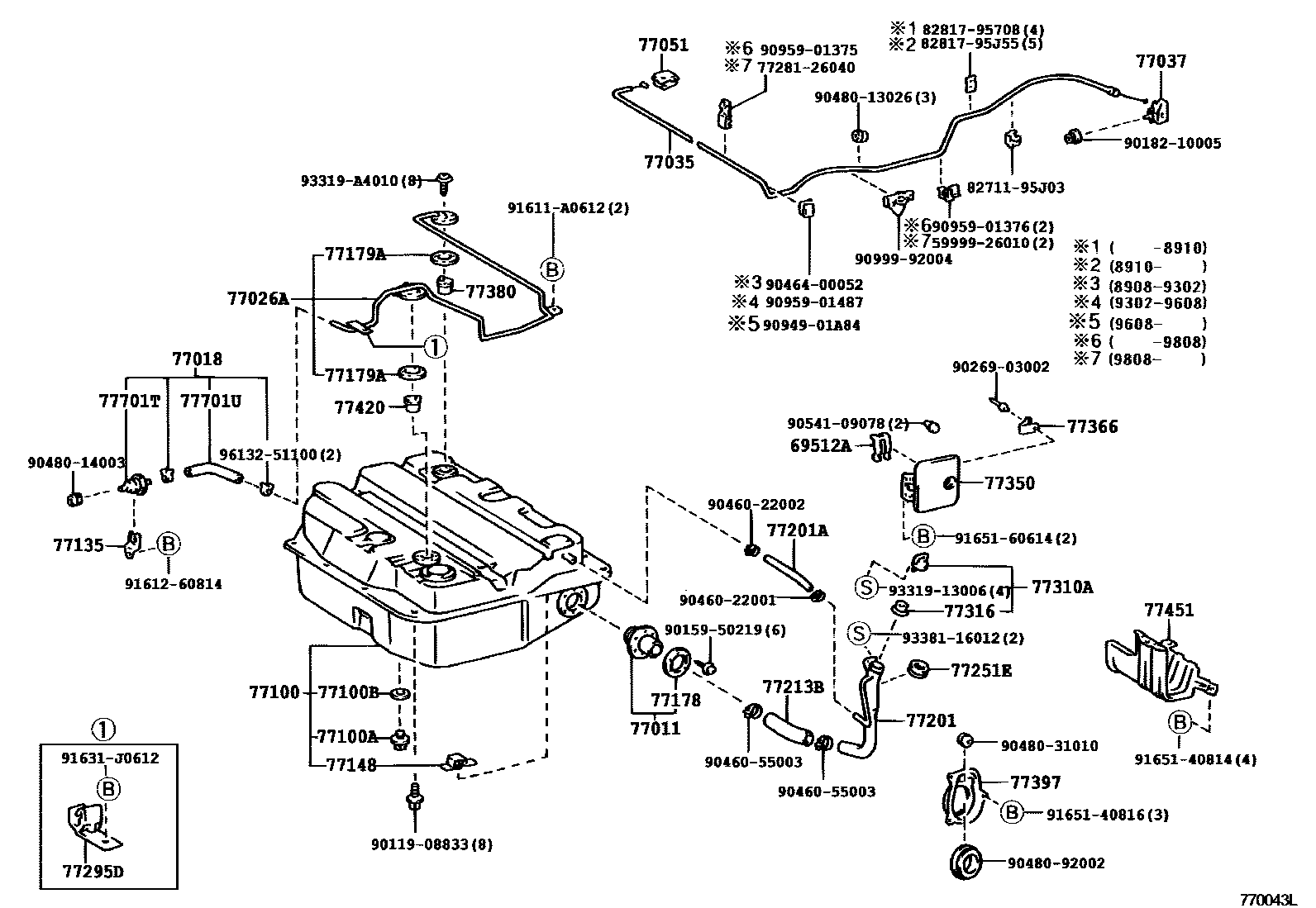

FUEL TANK & TUBE

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

69512ARETAINER, REAR DOOR LOCK CYLINDER

main69512-87001iRZH103..03S..GEN¥140198908-200208

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-26010iRZH112..4D..06S¥2,730198908-200602

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26160iLH162..4FC;RZH104..RHD;RZH114..15S..GL;RZH115..GEN..CBR;LH172,RZH102,104..SG..GL¥2,100198908-200501

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-26040iLH10#,11#,125,RZH10#,11#,125¥4,980198908-199504

sub77026-26041¥5,100

main77026-26041iLH162..4FC;RZH105..CBR;RZH104..RHD;RZH114..15S..GL;RZH115..GEN..CBR;LH172,RZH104..SG..GL¥5,100199504-200501

main77026-26060iRZH103,113..4FC¥6,700199907-200501

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-26050iLH102,104,RZH10#..LHD..4D..(CBR,DSL)¥1,970199808-200408

main77035-26060iLH11#,174,RZH11#..LHD..4D..(GCC,GEN)¥1,970199808-200508

main77035-26070iRZH102..03S¥2,120199808-200008

main77035-26080iLH112,113,RZH112,113..5D¥2,140199808-200508

main77035-26090iLH103,RZH102,103,104..RHD¥2,690199808-200408

main77035-26100iLH11#,172,174,RZH112,113,114,153..RHD¥2,690199808-199907

main77035-26110iLH125,184,RZH125,135¥2,690199808-200501

main77035-95J03iLH102,104,105,RZH10#..LHD..4D..(GCC,GEN)¥2,960198908-199808

main77035-95J04iLH11#,RZH11#..LHD..4D..(GCC,GEN)¥3,110198908-199808

main77035-95J05iRZH102..LHD..5D¥3,110198908-199808

main77035-95J06iLH112,113,RZH112,113..5D..(GCC,GEN)¥3,320198908-199808

main77035-95J07iLH10#,RZH102,103,104..RHD¥3,750198908-199808

main77035-95J08iLH11#,RZH11#,153..RHD¥3,750198908-199808

main77035-95J09iLH125,RZH125..ARL¥3,890198908-199808

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iRZH125;RZH102,112..SRF;RZH103..RHD..EFI;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH135,153..(03S,10S,12S,15S)..GL;LH102,103¥1,450199803

sub77037-38010¥1,520

main77037-32010iLH10#,11#,125,RZH10#,11#,125,135,153..ARL,GCC,GEN¥1,350198908-199803

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-95J01-03iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

sub77051-95J01¥2,360

main77051-95J01-C0iLH125..ARL;LH10#,11#,RZH10#,11#,125..ARL,GCC,GEN199308-200008

BLACK,TRIM1#

sub77051-95J01¥2,360

main77051-95J01-C0iRZH153199907-200008

BLACK,TRIM1#,4#

sub77051-95J01¥2,360

main77051-95J01-C0iLH154,RZH153..03S,10S200008-200501

BLACK,TRIM4#

sub77051-95J01¥2,360

77100TANK ASSY, FUEL

main77001-26450iRZH102,104,11#..GEN¥48,000198908-199108

sub77001-26500¥50,500

main77001-26470iRZH113..ARL;LH10#,11#,125,RZH103,125¥48,000198908-199108

sub77001-26500¥50,500

main77001-26490iRZH105,115..STD..CIS;RZH102,103,112,125,135,153..RHD..EFI;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI¥50,600199405-200508

sub77001-26730¥50,600

main77001-26500iRZH112..4D..06S¥50,500199108-200602

sub77001-26720¥50,600

77100APLUG(FOR FUEL TANK)

main90105-12116iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥110198908-200602

77100BGASKET(FOR FUEL TANK)

main90430-12245iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥160198908-200602

77135BRACKET, CHECK VALVE

main77135-26010iLH172..RHD;RZH115..STD..GEN..CBR;LH10#,11#,125,166,176,184,RZH102,104,112,114..CBR,DSL;LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..GEN..(CBR,DSL)¥310198908-200501

77148BRACKET, FUEL TUBE TO TANK

main77148-32010iLH172..4FC;RZH112,114..4D..(06S,12S)¥370199907-200501

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥430198908-200602

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iLH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,¥230198908-200501

sub77179-26011¥190

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26140iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,112,114¥8,000198908-199205

main77201-26141iLH10#,11#,125,RZH102,104,112,114¥9,400199205-199209

sub77201-26170¥9,400

main77201-26150iRZH10#,11#,125..RHD¥8,200199110-199205

HONG KONG OR SINGAPORE SPEC

main77201-26150iRZH103,113,125;RZH102..RHD..06S..5F¥8,200198908-199110

main77201-26151iRZH105,113,115;RZH102,103,104,112,114,125..RHD¥10,800199205-199508

HONG KONG OR SINGAPORE SPEC

main77201-26170iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184,RZH10#,11#..CBR,DSL¥9,400199209-200501

main77201-26230iRZH103,135,153..RHD..EFI;RZH113..RHD..4D..STD..EFI;RZH105,115,125..STD..(ARL,CIS)..EFI¥10,800199611-200408

sub77201-26151¥10,800

main77201-26230iRZH103..STD..CBR;RZH113..LHD..EFI;RZH113..06S..GEN..CBR;RZH105,113,115..ARL,GCC;RZH102,104,112,114,125..RHD¥10,800199508-200501

HONG KONG OR SINGAPORE SPEC

sub77201-26151¥10,800

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13032iLH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH115..GEN..EFI;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH112,162,174,RZH114..4D.¥520198908-200308

L=320

main95312-13032iRZH103..5F;LH174,RZH115,155..CIS;LH10#,16#,176,RZH102,104,105¥820200308-200501

L=320

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-26080iRZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S)¥3,500198908-200501

77251ESHIELD, FUEL TANK INLET PIPE

main77251-10010iLH10#,11#,125,RZH10#,11#,125¥1,010198908-199205

main90480-75002iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#¥410199205-200208

77295DGROMMET, FUEL TUBE

main77295-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥240199504-200501

77310ACAP ASSY, FUEL TANK

main77300-12010iLH172..DEFI¥2,780200108-200501

main77310-12100iRZH10#,11#,125¥2,320198908-199205

main77310-12150iLH172..4FC¥2,780199803-200501

main77310-16011iRZH10#,11#,125¥2,790199205-199508

sub77310-12140¥2,790

main77310-32011iLH10#,11#,125¥1,940199205-199508

main77310-35061iLH10#,11#,125¥2,320198908-199205

main77310-35070iRZH10#,11#,125,135,153¥2,790199508-199803

sub77310-48010¥2,800

main77310-35110iLH10#,11#,125¥2,790199508-199803

sub77310-12150¥2,780

main77310-48010iRZH103,113..4FC¥2,800199803-200501

77316GASKET, FUEL TANK CAP

main77316-12050iLH10#,11#,125,RZH10#,11#,125¥310198908-199205

main77316-16010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥660199205-200501

77350LID ASSY, FUEL FILLER OPENING

main77350-26010iRZH112..5D;RZH112..03S;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN¥4,560199205-200208

W(FUEL LID OPENER)

main77350-95J00iRZH115..12S¥3,590198908-200208

main77350-95J01iLH10#,11#,125,RZH10#,11#,125¥4,510198908-199205

W(FUEL LID OPENER)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95J01iLH102,103,104,11#,125,154,162,172,174,184,RZH10#,11#,125,135,15#..ARL,GCC,GEN¥200198908-199411

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥780198908-200501

77397PLATE, FUEL INLET PIPE SEAL

main77397-95J01iLH125..ARL;LH10#,11#,RZH10#,11#,125¥1,290198908-200208

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iLH172..4FC;RZH112,114..4D..(06S,12S)¥780198908-200501

77451PROTECTOR, FUEL INLET HOSE

main77451-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0¥4,710198908-200501

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iRZH113..GEN;LH10#,11#,125,RZH102,104,112,114¥1,340198908-199101

sub90917-10082¥1,350

main90917-10082iLH172..RHD;RZH115..STD..GEN..CBR;LH10#,11#,125,166,176,184,RZH102,104,112,114..CBR,DSL;LH174,RZH103,105,113..(03S,06S,09S,10S,12S)..GEN..(CBR,DSL)¥1,350199101-200501

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06030iLH103,113,115,125,RZH102..STD;LH102,105,112,174..LHD..(06S,10S,12S)¥580198908-200501

*H,L=240

sub95338-06030¥580

5999926010CLAMP(FOR FLOOR MAT)

main59999-26010¥120

7728126040BRACKET, FUEL MAIN TUBE, NO.1

main77281-26040¥170

8271195J03WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95J03¥520

8281795708PROTECTOR, WIRING HARNESS, NO.1

main82817-95708¥250

8281795J55PROTECTOR, WIRING HARNESS, NO.1

main82817-95J55¥130

9011908833

main90119-08833¥160

9015950219

main90159-50219¥70

9018210005

main90182-10005¥160

9026903002

main90269-03002¥200

9046022001

main90460-22001¥240

9046022002

main90460-22002¥530

9046055003

main90460-55003¥270

9046400052

main90464-00052¥200

9048013026

main90480-13026¥130

9048014003

main90480-14003¥190

9048031010

main90480-31010¥410

9048092002

main90480-92002¥750

9054109078

main90541-09078¥170

9094901A84

main90949-01A84¥310

9095901375

main90959-01375¥140

9095901376

main90959-01376¥80

9095901487

main90959-01487¥230

9099992004

main90999-92004¥890

91611A0612

main91611-A0612¥120

9161260814

main91612-60814¥140

91631J0612

main91631-J0612¥110

9165140814

main91651-40814¥180

9165140816

main91651-40816¥80

9165160614

main91651-60614¥70

9331913006

main93319-13006¥60

93319A4010

main93319-A4010¥60

9338116012

main93381-16012¥140

9613251100

main96132-51100¥120

62 parts on this diagram · 7 diagrams in section
