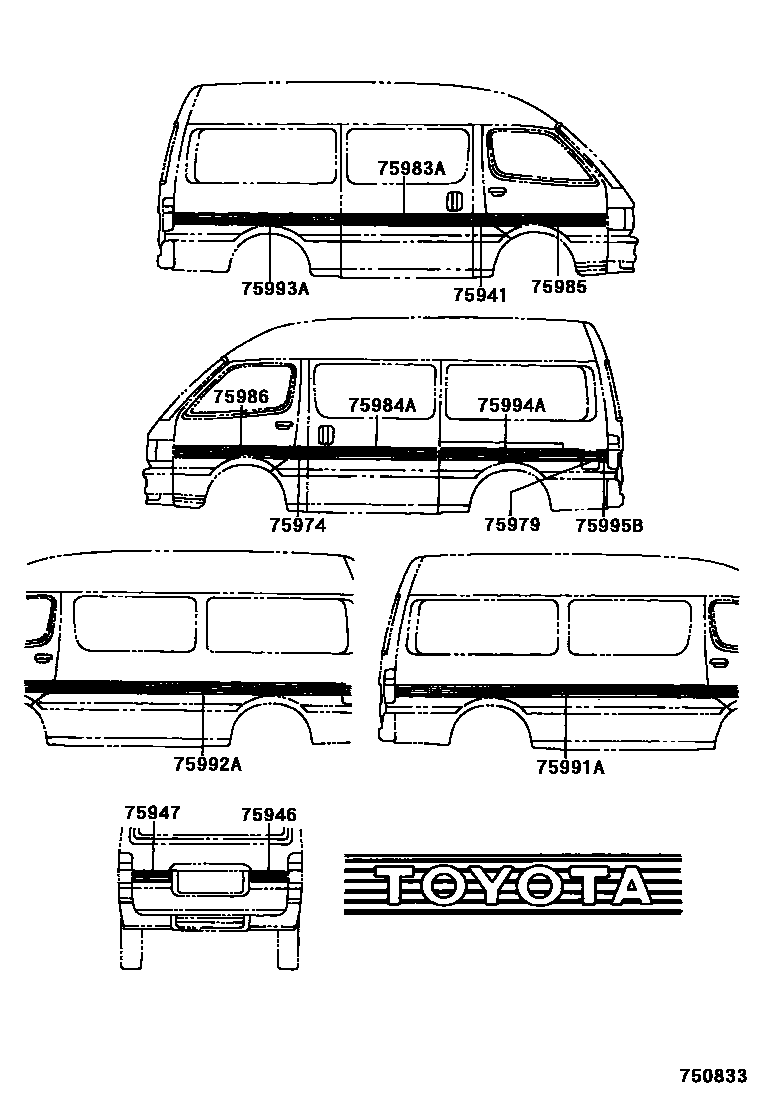

BODY STRIPE

0001 1 0003 1 0005 1 0006 1TYPE A 0007 1TYPE B 0008 1TYPE A 0010 1TYPE B

75941STRIPE, CENTER PILLAR, RH

main75941-26050iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,103..SG..(SGL,STD);LH102,104,105,11#,RZH104,105,11#..LHD..(DX,STD)199308-199708

main75941-26080iRZH114..15S..GL;RZH115..STD..GEN..EFI;LH174,RZH102,104,105,115..GL,SGL199907-200008

TYPE A:REFER TO ILLUSTRATION

main75941-26090iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,103..SG..(SGL,STD);LH102,104,11#,RZH104,105,11#..LHD..STD199708-199808

main75941-26100iLH103..5D;RZH115..STD;RZH102,103..(GL,STD)..GEN;LH102,104,105,11#,166,176,RZH104,105,112,113,114..LHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75941-26130iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75941-26170iRZH114..15S..GL;RZH115..GEN..EFI;LH154,RZH102,104,105,155..GL200008-200501

TYPE A:REFER TO ILLUSTRATION

main75941-26180iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75941-95J35-03iRZH114..HRF199010-199108

SILVER,045 ,557

main75941-95J35-13iRZH114..HRF199010-199205

LIGHT SILVER,391

75946STRIPE, BACK DOOR, RH

main75946-95J35-03iRZH114..HRF199010-199108

SILVER,045 ,557

main75946-95J35-13iLH112..RHD..SRF..03S;RZH102,104,112,114..LHD..SRF199205-199308

LIGHT SILVER,3H7 ,8E2

75947STRIPE, BACK DOOR, LH

main75947-95J35-03iRZH114..HRF199010-199108

SILVER,045 ,8E8 ,8G8

main75947-95J35-13iRZH114..HRF199010-199205

LIGHT SILVER,391

75974STRIPE, CENTER PILLAR, LH NO.2

main75942-26080iRZH112..5D..STD199708-199808

VIETNAM SPEC

main75942-26150iRZH112..06S..STD;RZH112..RHD..03S;LH11#,RZH113,114,115..RHD..GEN;LH103,112,113,RZH102,103,113..5D199708-199808

main75942-26160iRZH112..GL199608-199808

main75942-26230iLH103..ARL;RZH112..06S;RZH112..RHD..03S;LH103,112,113,RZH102,113..5D;LH11#,172,RZH103,104,113,114..RHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75942-26330iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75942-26360iRZH112..4D..06S200008-200208

TYPE B:REFER TO ILLUSTRATION

main75942-95J04-03iRZH102,112..LHD..5D;LH112..RHD..SRF..03S198908-199308

SILVER,045 ,4L2 ,541 ,8E8 ,8G8

main75942-95J04-13iRZH102,112..LHD..5D;LH112..RHD..SRF..03S198908-199205

LIGHT SILVER,3H7 ,6K9 ,8E2

75979STRIPE, FUEL FILLER OPENING LID

main75979-26100iLH113..GL;RZH103,105..4D..SG..(SGL,STD)199608-199708

W(FUEL LID OPENER)

main75979-26130iRZH112,114..LHD..SRF..SG..STD..GEN199708-199808

VIETNAM SPEC

main75979-26180iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,104..LHD..SG..STD..GEN;RZH103,105,112,114..(SGL,STD)..(GCC,GEN)..CBR;LH102,104,11#,RZH113,115..(03S,06S,12S,15S)..(GCC,GEN)199708-199808

W(FUEL LID OPENER)

main75979-26190iRZH104,112,114..GL;LH114,115,RZH105..LHD..GEN199709-199808

W(KEY)

main75979-26200iRZH104..GL;RZH114..HRF..GL199608-199808

TYPE A:REFER TO ILLUSTRATION

main75979-26210iLH103,RZH102,103..5D;RZH102,104..LHD..SG..STD;LH102,104,11#,RZH105,11#..STD..(CIS,GCC,GEN)199708-199808

main75979-26220iLH103..5D;LH103..ARL;RZH115..STD..CBR;LH102,104,11#,172,RZH10#,112,113,114..ARL,GCC,GEN199808-199907

TYPE B:REFER TO ILLUSTRATION, W(KEY)

main75979-26230iLH103..5D;LH103..ARL;RZH104,105,114;LH102,104,105,11#,166,172,176,RZH102,103,112,113,115..STD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75979-26290iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75979-26300iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION, W(KEY)

main75979-26320iRZH114..15S..GL;RZH115..STD..GEN..EFI;LH154,RZH102,104,105,115,155..(10S,11S,12S)..GL..GEN200008-200501

TYPE A:REFER TO ILLUSTRATION

main75979-26330iRZH104,105..GL;RZH115..15S..GEN..EFI;RZH114,155..(11S,15S)..GL200008-200501

TYPE A:REFER TO ILLUSTRATION, W(KEY)

main75979-26340iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75979-26350iRZH103..03S..GEN200208

TYPE B:REFER TO ILLUSTRATION, W(KEY)

main75979-95J01-03iRZH114..HRF198908-199010

SILVER,045 ,20N ,6L1 ,8E8 ,8G8

main75979-95J01-13iLH112..RHD..SRF..03S;RZH102,104,112,114..LHD..SRF199205-199308

LIGHT SILVER,3H7 ,8E2

75983ASTRIPE, SLIDE DOOR

main75983-26040iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,103..SG..(SGL,STD);LH102,104,11#,RZH104,105,11#..LHD..STD199608-199708

main75983-26060iRZH114..15S..GL;RZH115..STD..GEN..EFI;LH174,RZH102,104,105,115..GL,SGL199907-200008

TYPE A:REFER TO ILLUSTRATION

main75983-26080iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,103..SG..(SGL,STD);LH102,104,11#,RZH104,105,11#..LHD..STD199708-199808

main75983-26090iLH103..5D;RZH115..STD;RZH102,103..(GL,STD)..GEN;LH102,104,105,11#,166,176,RZH104,105,112,113,114..LHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75983-26120iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75983-26160iRZH114..15S..GL;RZH115..GEN..EFI;LH154,RZH102,104,105,155..GL200008-200501

TYPE A:REFER TO ILLUSTRATION

main75983-26170iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75983-26180iRZH115..12S200208-200508

TYPE B:REFER TO ILLUSTRATION

main75983-95J40-03iRZH114..HRF199108-199308

SILVER,045 ,541

main75983-95J40-13iRZH114..HRF199010-199205

LIGHT SILVER,391

75984ASTRIPE, SLIDE DOOR

main75984-26110iRZH112..5D..STD199708-199808

VIETNAM SPEC

main75984-26190iRZH112..GL199608-199808

main75984-26240iRZH112..06S..STD;RZH112..RHD..03S;LH11#,RZH113,114,115..RHD..GEN;LH103,112,113,RZH102,103,113..5D199708-199808

main75984-26290iLH103..ARL;RZH112..06S;RZH112..RHD..03S;LH103,112,113,RZH102,113..5D;LH11#,172,RZH103,104,113,114..RHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75984-26390iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75984-26430iRZH103..03S..GEN200008

TYPE B:REFER TO ILLUSTRATION

main75984-26440iRZH112..4D..06S200008-200208

TYPE B:REFER TO ILLUSTRATION

main75984-95J02-03iRZH103..4FC..GL198908-199010

SILVER,045 ,20N ,6L1 ,8E8 ,8G8

main75984-95J02-13iRZH102,112..LHD..5D;LH112..RHD..SRF..03S198908-199205

LIGHT SILVER,3H7 ,6K9 ,8E2

75985STRIPE, FRONT DOOR, RH

main75985-26100iRZH103..5D..EFI;LH103,RZH102..5D;RZH105,112,114..STD;RZH103..(SGL,STD)..GEN..CBR;LH102,RZH102,104..LHD..4D..STD;LH104,105,11#,RZH113,115..CIS,GCC,GEN199308-199708

main75985-26170iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,104..LHD..SG..STD;RZH103,105,112,114..(SGL,STD)..(CIS,GCC,GEN)..CBR;LH102,104,11#,RZH113,115..(03S,06S,12S,15S)..(CIS,GCC,GE199708-199808

main75985-26180iLH114,115..LHD..GEN199709-199808

W(BACK DOOR ORNAMENT)

main75985-26250iLH103..5D;LH103..ARL;RZH115..STD;LH102,104,105,11#,166,172,176,RZH10#,112,113,114199808-199907

TYPE B:REFER TO ILLUSTRATION

main75985-26360iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75985-26410iRZH114..15S..GL;RZH115..GEN..EFI;LH154,RZH102,104,105,155..GL200008-200501

TYPE A:REFER TO ILLUSTRATION

main75985-26420iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75985-95J38-03iRZH114..HRF198908-199010

SILVER,045 ,20N ,6L1 ,8E8 ,8G8

main75985-95J38-13iLH112..RHD..SRF..03S;RZH102,104,112,114..LHD..SRF198908-199205

LIGHT SILVER,3H7 ,6K9 ,8E2

75986STRIPE, FRONT DOOR, LH

main75986-26100iRZH103..5D..EFI;LH103,RZH102..5D;RZH105,112,114..STD;RZH103..(SGL,STD)..GEN..CBR;LH102,RZH102,104..LHD..4D..STD;LH104,105,11#,RZH113,115..CIS,GCC,GEN199308-199708

main75986-26170iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,104..LHD..SG..STD;RZH103,105,112,114..(SGL,STD)..(CIS,GCC,GEN)..CBR;LH102,104,11#,RZH113,115..(03S,06S,12S,15S)..(CIS,GCC,GE199708-199808

main75986-26180iRZH114..15S..GL;RZH115..STD..GEN..EFI;LH174,RZH102,104,105,115..GL,SGL199907-200008

TYPE A:REFER TO ILLUSTRATION

main75986-26250iLH103..5D;LH103..ARL;RZH115..STD;LH102,104,105,11#,166,172,176,RZH10#,112,113,114199808-199907

TYPE B:REFER TO ILLUSTRATION

main75986-26350iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75986-26410iRZH114..15S..GL;RZH115..GEN..EFI;LH154,RZH102,104,105,155..GL200008-200501

TYPE A:REFER TO ILLUSTRATION

main75986-26420iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75986-95J38-03iRZH114..HRF199010-199108

SILVER,045 ,8E8 ,8G8

main75986-95J38-13iRZH114..HRF199010-199205

LIGHT SILVER,391

75991ASTRIPE, QUARTER, RH

main75991-26120iLH11#,RZH11#..RHD..GEN199308-199708

main75991-26220iLH11#,RZH11#..RHD..GEN199708-199808

main75991-26280iLH11#,172,RZH112,113,114..RHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75991-26290iLH103..ARL;RZH103,104..RHD..4D199808-199907

TYPE B:REFER TO ILLUSTRATION

main75991-26410iRZH102..03S199907-200008

TYPE B:REFER TO ILLUSTRATION

main75991-26420iLH11#,172,174,RZH112,113,114..RHD199907-200008

TYPE B:REFER TO ILLUSTRATION

main75991-26480iLH162,RZH103,104,105..RHD..4D200008-200408

TYPE B:REFER TO ILLUSTRATION

main75991-26490iRZH113..RHD..SG;RZH112,113..RHD..4D..03S;LH11#,172,174,RZH114..RHD..4D200008-200602

TYPE B:REFER TO ILLUSTRATION

main75991-95J32-03iRZH103..4FC..GL199010-199108

SILVER,045 ,8E8 ,8G8

main75991-95J33-03iLH112..RHD..SRF..03S198908-199308

SILVER,045 ,4L2 ,541 ,8E8 ,8G8

main75991-95J33-13iLH112..RHD..SRF..03S199205-199308

LIGHT SILVER,3H7 ,8E2

75992ASTRIPE, QUARTER, LH

main75992-26030iLH102,104,105,RZH10#..LHD..4D..(SGL,STD)199308-199708

main75992-26040iLH11#,RZH11#..LHD..4D..(DX,STD)199308-199708

main75992-26060iLH102,RZH10#..GL199608-199907

TYPE A:REFER TO ILLUSTRATION

main75992-26070iLH114,115..LHD..GEN199709-199808

W(BACK DOOR ORNAMENT)

main75992-26100iLH102,104,RZH10#..LHD..4D..(SGL,STD)199708-199808

main75992-26110iLH11#,RZH11#..LHD..4D..STD199708-199808

main75992-26180iLH102,104,105,166,RZH10#..LHD..4D199808-199907

TYPE B:REFER TO ILLUSTRATION

main75992-26190iRZH115..STD;LH11#,176,RZH112,113,114..LHD..4D199808-199907

TYPE B:REFER TO ILLUSTRATION

main75992-26230iRZH105..LHD..STD;LH102,104,105,166,RZH102,103,104..LHD..4D199907-200008

TYPE B:REFER TO ILLUSTRATION

main75992-26240iRZH115..STD..(CIS,GCC);LH11#,17#,RZH112,113,114..LHD..4D..(03S,12S,15S)199907-200008

TYPE B:REFER TO ILLUSTRATION

main75992-26280iRZH102,104,105..GL200008-200408

TYPE A:REFER TO ILLUSTRATION

main75992-26290iLH154,RZH155;RZH114..15S..GL;RZH115..GEN..EFI200008-200501

TYPE A:REFER TO ILLUSTRATION

main75992-26300iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75992-26310iRZH115..STD..GEN200108-200508

TYPE B:REFER TO ILLUSTRATION

main75992-95J60-03iRZH104..LHD198908-199308

SILVER,045 ,4L2 ,541 ,8E8 ,8G8

main75992-95J60-13iRZH104..LHD198908-199205

LIGHT SILVER,3H7 ,6K9 ,8E2

main75992-95J61-03iRZH114..HRF199010-199108

SILVER,045 ,557

main75992-95J61-13iRZH112,114..LHD..SRF..4D199205-199308

LIGHT SILVER,3H7 ,8E2

75993ASTRIPE, QUARTER, REAR RH

main75993-26060iRZH103..5D..EFI;LH103,RZH102..5D;RZH103..(SGL,STD)..GEN..CBR;LH102,104,105,RZH102,104,105..LHD..4D..STD199308-199708

main75993-26070iRZH112,114..LHD..SRF..SG..STD..GEN199708-199808

VIETNAM SPEC

main75993-26100iRZH102,104,105..GL199907-200008

TYPE A:REFER TO ILLUSTRATION

main75993-26110iLH114,115..LHD..GEN199709-199808

W(BACK DOOR ORNAMENT)

main75993-26120iRZH103..5D..EFI;LH103,RZH102..5D;RZH103..(SGL,STD)..GEN..CBR;LH102,104,RZH102,104,105..LHD..4D..STD199708-199808

main75993-26130iLH11#,RZH11#..LHD..STD199708-199808

main75993-26150iLH103..5D;RZH104..LHD;LH102,104,105,166,RZH102,103,105..(GL,STD)..(CIS,GCC,GEN)199808-199907

TYPE B:REFER TO ILLUSTRATION

main75993-26160iRZH115..STD;LH11#,176,RZH112,113,114..LHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75993-26210iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75993-26220iRZH115..STD..(CIS,GCC);LH11#,17#,RZH112,113,114..LHD..(03S,06S,12S,15S)199907-200008

TYPE B:REFER TO ILLUSTRATION

main75993-26250iRZH102,104,105..GL200008-200408

TYPE A:REFER TO ILLUSTRATION

main75993-26260iLH154,RZH155;RZH114..15S..GL;RZH115..GEN..EFI200008-200501

TYPE A:REFER TO ILLUSTRATION

main75993-26270iRZH102200008-200108

TYPE B:REFER TO ILLUSTRATION

main75993-26280iLH172..5D;RZH113..5D..03S..GEN;RZH115..(CIS,GCC)..EFI;LH172,RZH115..LHD..4D..(CBR,DSL);LH11#,174,176,RZH112,113,114..LHD200008-200508

TYPE B:REFER TO ILLUSTRATION

main75993-95J54-03iRZH102,104..LHD198908-199308

SILVER,045 ,4L2 ,541 ,8E8 ,8G8

main75993-95J54-13iRZH102,104..LHD198908-199205

LIGHT SILVER,3H7 ,6K9 ,8E2

main75993-95J55-03iRZH112,114..LHD..SRF198908-199308

SILVER,045 ,4L2 ,541 ,8E8 ,8G8

main75993-95J55-13iRZH112,114..LHD..SRF199205-199308

LIGHT SILVER,3H7 ,8E2

75994ASTRIPE, QUARTER EXTENSION

main75994-26130iLH103,RZH102,103..5D199308-199708

main75994-26140iRZH112..5D..STD199708-199808

VIETNAM SPEC

main75994-26210iLH103,RZH102,103..5D199708-199808

main75994-26220iRZH112..GL199608-199808

main75994-26240iRZH112..06S..STD;RZH112..RHD..03S;LH112,113,RZH113..5D;LH11#,RZH113,114,115..RHD..GEN199708-199808

main75994-26250iLH103..ARL;RZH103,104..RHD;LH103,RZH102..5D199808-199907

TYPE B:REFER TO ILLUSTRATION

main75994-26260iRZH112..06S;RZH112..RHD..03S;LH112,113,RZH113..5D;LH11#,172,RZH113,114..RHD199808-199907

TYPE B:REFER TO ILLUSTRATION

main75994-26360iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75994-26370iLH113..SRF;RZH112..06S;RZH112..RHD..03S;LH112,172,RZH113..5D;LH112,114,115,172,174,RZH113,114..RHD199907-200008

TYPE B:REFER TO ILLUSTRATION

main75994-26390iLH162,RZH103,104,105..RHD200008-200408

TYPE B:REFER TO ILLUSTRATION

main75994-26400iRZH113..5D;RZH113..RHD..4D;RZH112..RHD..03S;LH172,RZH112..LHD..5D;LH11#,172,174,RZH114..RHD200008-200602

TYPE B:REFER TO ILLUSTRATION

main75994-95J64-03iRZH103..4FC..GL198908-199010

SILVER,045 ,20N ,6L1 ,8E8 ,8G8

main75994-95J64-13iRZH102..LHD199205-199308

LIGHT SILVER,3H7 ,8E2

main75994-95J65-03iRZH112..5D;LH112..RHD..SRF..03S198908-199308

SILVER,045 ,4L2 ,541 ,8E8 ,8G8

main75994-95J65-13iRZH112..5D;LH112..RHD..SRF..03S199205-199308

LIGHT SILVER,3H7 ,8E2

75995BSTRIPE, QUARTER REAR END

main75995-26110iRZH112,114..LHD..SRF..SG..STD..GEN199708-199808

VIETNAM SPEC

main75995-26180iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,104..LHD..SG..STD;RZH103,105,112,114..(SGL,STD)..(CIS,GCC,GEN)..CBR;LH102,104,11#,RZH113,115..(03S,06S,12S,15S)..(CIS,GCC,GE199708-199808

main75995-26190iLH102,RZH103,104,105,112,114..GL199608-199808

main75995-26230iLH103..5D;LH103..ARL;RZH115..STD;LH102,104,105,11#,166,172,176,RZH10#,112,113,114199808-199907

TYPE B:REFER TO ILLUSTRATION

main75995-26300iRZH102,103..03S..GEN199907-200008

TYPE B:REFER TO ILLUSTRATION

main75995-26330iRZH114..15S..GL;RZH115..GEN..EFI;LH154,RZH102,104,105,155..GL200008-200501

TYPE A:REFER TO ILLUSTRATION

main75995-26340iRZH115..12S200208-200602

TYPE B:REFER TO ILLUSTRATION

main75995-95J12-03iRZH114..HRF199010-199108

SILVER,045 ,557

main75995-95J12-13iLH112..RHD..SRF..03S;RZH102,104,112,114..LHD..SRF198908-199205

LIGHT SILVER,3H7 ,6K9 ,8E2

14 parts on this diagram · 7 diagrams in section
