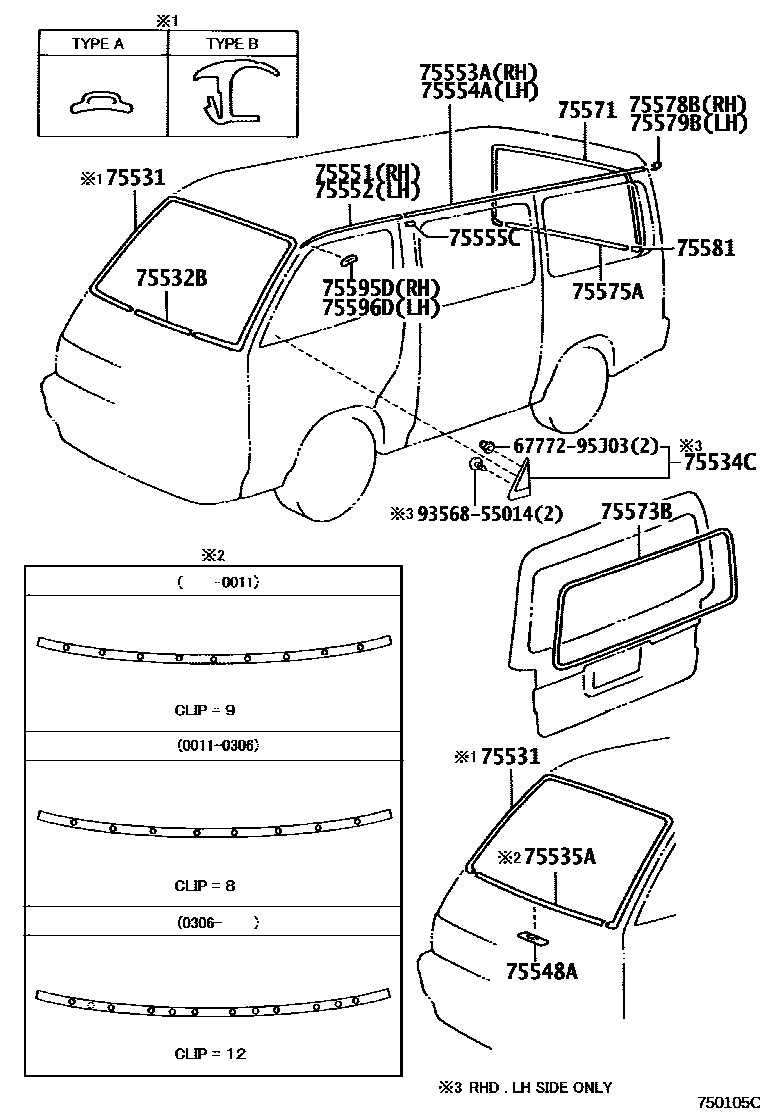

MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-26060iLH174,RZH115,135,153..03S,10S,12S;LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199808-199907

TYPE B:REFER TO ILLUSTRATION

main75531-26061iRZH115,135,153..03S,12S;LH154,164,166,176,RZH105,155..LHD;LH162,172,RZH103,113..RHD..06S..(DSL,EFI);LH162,172,174,184,RZH103,113,115,125..ARL,CIS,GCC200306-200508

TYPE B:REFER TO ILLUSTRATION

main75531-95J01iRZH112,115..LHD..(06S,15S);LH174,184,RZH112..(03S,12S,14S,15S)..STD;LH10#,11#,125,16#,172,176,RZH10#,113,114,125199907

TYPE A:REFER TO ILLUSTRATION

main75531-95J02iLH10#,11#,125,RZH10#,11#,125198908-199205

main75531-95J03iRZH135,153199611-199808

75532BCOVER, FRONT WINDSHIELD MOULDING

main75532-95J01iLH10#,11#,125,RZH10#,11#,125198908-199411

75534CGARNISH, FRONT PILLAR, OUTER LH

main67492-95J00iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199308-199508

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-26020iLH103,113,162,RZH103,113..06S..GEN;LH154,174,RZH115,135,15#..03S,10S,11S,12S;LH103,113,115,125,162,172,174,184,RZH103,105,113,115,125..ARL,GCC199907-200011

main75535-26030iRZH115,135,15#..03S,11S,12S;LH162,172,174,RZH103,113,115,125..ARL,GCC;LH172,RZH103,113..RHD..06S..STD..(DSL,EFI);LH154,162,184,RZH105..(06S,10S,11S,12S,14S)..(CBR,D200011-200306

main75535-26031iRZH115,135,153..03S,12S;LH154,164,166,176,RZH105,155..LHD;LH162,172,RZH103,113..RHD..06S..(DSL,EFI);LH162,172,174,184,RZH103,113,115,125..ARL,CIS,GCC200306-200508

main75535-95J00iRZH135,153199611-199808

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-26010×8iRZH115,135,15#..03S,11S,12S;LH162,172,174,RZH103,113,115,125..ARL,GCC;LH172,RZH103,113..RHD..06S..STD..(DSL,EFI);LH154,162,184,RZH105..(06S,10S,11S,12S,14S)..(CBR,D200011-200508

main75548-95J00×9iLH172..06S..STD200008-200011

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-95J02iRZH103..03S..GEN200208

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-95J02iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-199411

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-95J03iLH10#,16#,RZH10#199907-200408

main75553-95J04iLH11#,17#,RZH11#,153198908-199907

main75553-95J05iLH125,RZH125..ARL198908-199411

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-95J03iLH10#,16#,RZH10#199907-200408

main75554-95J04iLH11#,17#,RZH11#,153198908-199907

main75554-95J05iLH125,RZH125..ARL198908-199411

75555CCONNECTOR, ROOF DRIP MOULDING

main75555-95J00×2iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-199411

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75531-95J01iLH10#,11#,125,RZH10#,11#,125199205-199508

main75571-95J02iLH10#,11#,125,RZH10#,11#,125198908-199205

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-26020iLH154,RZH135,153..03S,10S,12S199907-200501

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75531-95J01iRZH115..12S200208

main75575-95J02iLH10#,11#,125,RZH10#,11#,125198908-199205

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-95J01iRZH112..4D..06S199907-200208

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-95J01iRZH112..5D;RZH112,115..03S,15S;LH174,184,RZH102..STD;LH10#,11#,125,16#,172,176,RZH103,104,105,113,114,125199907

75581COVER, BACK WINDOW MOULDING JOINT, UPPER

main75581-95J00×2iRZH115..12S200208

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75595-95J01iLH172..03S..GL;RZH103..RHD..EFI;RZH115..15S..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH125,RZH103,105,198908-200208

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-95J01iLH172..03S..GL;RZH103..RHD..EFI;RZH115..15S..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH125,RZH103,105,198908-200208

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
