ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-26220-B0iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200508
BLUISH GRAY,TRIM1#
sub74231-26220
W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#
sub74231-26230
W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
sub74231-26230
main74231-26240-B0iLH162..4FC;LH172..06S;LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SP;LH172..RHD..5D..03S;LH162,174..RHD..(03S,15S)..5F;LH103,11#,125,184,RZH103,104,105,113,11199907-200501
BLUISH GRAY,TRIM1#
W(POWER WINDOW),BLUISH GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-26060-B0iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200508
BLUISH GRAY,TRIM1#
W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#
sub74232-26090
74310VISOR ASSY, RH
LT. BLUISH GRAY,TRIM1#
sub74310-26242
LT. BLUISH GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
sub74310-26820
LIGHT GRAY,TRIM1#
sub74310-95J38
main74310-26361-B2iRZH102,114,115..03S,06S,09S,15S;LH10#,11#,125,166,172,176,184,RZH103,104,105,112,113..(03S,06S,12S,15S)..(CIS,GCC,GEN)199608-199907
LT. BLUISH GRAY,TRIM1#
sub74310-26361
LT. BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
sub74310-26810
NEW ZEALAND SPEC & W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
main74310-26810-B0iLH162..4FC;LH162..5F..ARL;LH172..5D..06S;LH103,113,172,RZH103,113..ARL;LH103,113,125,184,RZH103,113,125..RHD..SG..STD199907-200501
W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
NEW ZEALAND SPEC,LT. BLUISH GRAY,TRIM1#
LT. BL. GRAY,TRIM1#
LT. ANTELOPE,TRIM4#
main74310-2F060-B0iLH162..4FC;LH162..5F..ARL;LH172,RZH113..RHD..5D..06S;LH172,184,RZH103,113,125..ARL200008-200501
NEW ZEALAND & W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
LI. GRAY,TRIM1#
sub74310-95J30
IVORY,TRIM1#
W(DAY & NIGHT MIRROR),IVORY,TRIM1#
sub74310-95J34
LIGHT GRAY,TRIM1#
HIGH GRADE PACKAGE,LIGHT GRAY,TRIM1#
74310BPLUG, HOLE (FOR VISOR)
main90467-06178-B0iRZH113..LHD;LH172..03S..GL;LH172..LHD..5D..GEN;RZH113..RHD..4D..03S..GEN;LH172,174..SRF..4D..STD..GEN;LH103,113,162,RZH103,115..(03S,15S)..(CIS,GCC,GEN);LH102,104,1199907-200009
NEW ZEALAND SPEC & W(*80,DRIVER SIDE ONLY),LT.BLUISH GRAY,TRIM1#
sub90467-05014
sub90467-06013
main90467-06178-B0iLH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..GEN..EFI;RZH105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN;LH10#,11#,166,176,RZH102,103199610-200009
W(*80,DRIVER SIDE),LT.BLUISH GRAY,TRIM1#
sub90467-05014
sub90467-06013
74320VISOR ASSY, LH
LT. BLUISH GRAY,TRIM1#
sub74320-26191
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
sub74320-26211
LT. BLUISH GRAY,TRIM1#
sub74320-26211
NEW ZEALAND SPEC,LT. BLUISH GRAY,TRIM1#
sub74320-26211
LIGHT GRAY,TRIM1#
main74320-26221-B2iRZH102,114,115..03S,06S,09S,15S;LH10#,11#,125,172,184,RZH103,104,105,112,113..(03S,06S,12S,15S)..(CIS,GCC,GEN)199608-199907
LT. BLUISH GRAY,TRIM1#
sub74320-26221
LT. BLUISH GRAY,TRIM1#
sub74320-26221
LT. BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
sub74320-26590
W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
sub74320-26600
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BL. GRAY,TRIM1#
LT. ANTELOPE,TRIM4#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BL. GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
LI. GRAY,TRIM1#
sub74320-95J31
W(MAP HOLDER),IVORY,TRIM1#
sub74320-95J31
LI. GRAY,TRIM1#
sub74320-95J31
IVORY,TRIM1#
W(DAY & NIGHT MIRROR),IVORY,TRIM1#
sub74320-95J35
LIGHT GRAY,TRIM1#
EXCELLENT PACKAGE,LIGHT GRAY,TRIM1#
74325COVER, VISOR BRACKET
main74325-95J00-B1iRZH115..15S;LH10#,11#,16#,17#,RZH10#,112,113,114..(03S,06S,12S,15S)..(CIS,GCC,GEN)199608-200009
LT.BLUISH GRAY,TRIM1#
sub74325-95J00
sub74318-25010
74348HOLDER, VISOR
W/O(VISOR, PASSENGER SIDE),LT.BLUISH GRAY,TRIM1#
sub74348-26020
main74348-26020-B0iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN.199608-200602
LT.BLUISH GRAY,TRIM1#
sub74348-26020
74603GRIP SUB-ASSY, ASSIST, FRONT
74603CGRIP SUB-ASSY, ASSIST
74610AGRIP SUB-ASSY, ASSIST
main74610-20040-B0iLH184,RZH104,105,114,115..GL,STD;LH104,105,114,115,125,164,166,174,176,RZH125..STD199907-200602
GRAY,TRIM16
sub74610-20040
LT.BLUISH GRAY,TRIM13
sub74610-20040
main74610-20040-B1iLH172..RHD;RZH115..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S199808-200501
LT.BLUISH GRAY,TRIM1#
sub74610-20040
main74610-20040-B1iLH184,RZH104,105,114,115..GL,STD;LH104,105,114,115,125,164,166,174,176,RZH125..STD199907-200602
LT.BLUISH GRAY,TRIM16
sub74610-20040
LI. GRAY,TRIM1#
sub74610-20040
74617APLUG, ASSIST GRIP
TYPE C:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub74617-26010
TYPE C:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
sub74617-26010
TYPE D:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub74617-26020
main74617-26020-B5iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907-200602
SHADOW GRAY,TRIM1#,TYPE D
sub74617-26020
TYPE D:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
sub74617-26020
TYPE A:REFER TO ILLUSTRATION,LIGHT GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,LIGHT GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#
74617CPLUG, ASSIST GRIP
GRAY,TRIM16
sub74617-16010
W/O(REAR SEAT),GRAY,TRIM16
sub74617-16010
LT.BLUISH GRAY,TRIM16
sub74617-16010
74617FPLUG, ASSIST GRIP
GRAY,TRIM1#
sub74617-16010
LT.BLUISH GRAY,TRIM16
sub74617-16010
W/O(REAR SEAT),LT.BLUISH GRAY,TRIM16
sub74617-16010
74631BHOOK, COAT
74811BHANDLE, DOOR PULL
BLUISH GRAY,TRIM1#
sub74811-95J04
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub74811-95J04
9015260005
main90152-60005
9015260008
main90152-60008
9015960085
main90159-60085
9015960595
main90159-60595
9165140625
main91651-40625
9321016016
main93210-16016
9354054014
main93540-54014

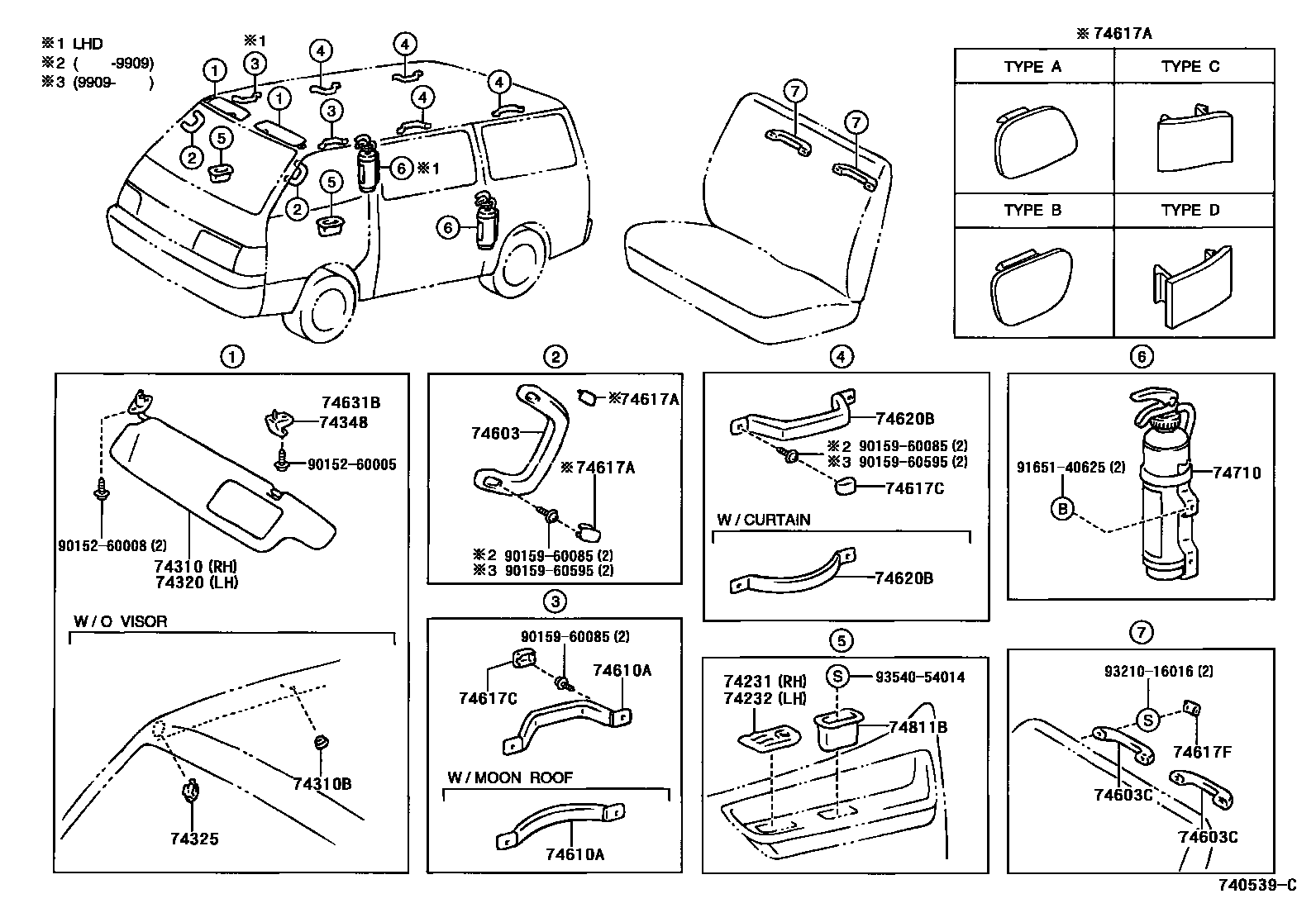

24 parts on this diagram · 1 diagram in section
