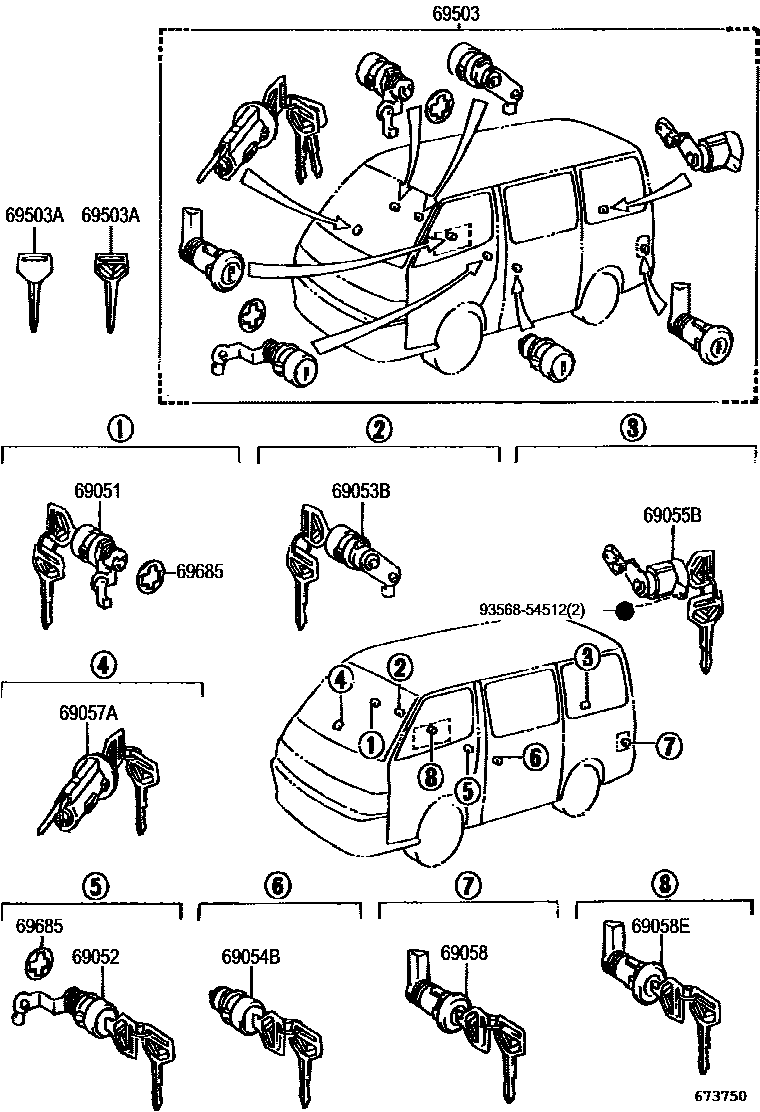

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-26040iLH10#,11#,125,RZH10#,11#,135,153..GCC,GEN199508-199808

sub69051-26060

main69051-26050iLH103,105,113,115,125,16#,17#,184,RZH103,105,113,115,125,155..ARL,CIS199508-200501

sub69051-26030

main69051-26060iLH172..03S..GL;RZH113..4D..STD..GEN;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,103,112,135,153..(SMRF,SRF)..(03S,06S,10S,12S)..GEN;LH102,103,104,11#,184,RZH103199808-200208

sub69051-26030

main69051-95J06iLH10#,11#,125,RZH10#,11#,125198908-199508

sub69051-95J08

main69051-95J07iLH103,113,125,RZH103,113,125..ARL199108-199308

sub69051-95J08

main69051-95J08iLH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199308-199508

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-26040iLH10#,11#,125,RZH10#,11#,135,153..GCC,GEN199508-199808

sub69052-26060

main69052-26050iLH103,104,105,113,114,115,125,166,176,RZH103,104,105,113,114,115,125..ARL,CIS199508-200501

sub69052-26030

main69052-26060iLH172..03S..GL;RZH113..4D..STD..GEN;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,103,112,135,153..(SMRF,SRF)..(03S,06S,10S,12S)..GEN;LH102,103,104,11#,184,RZH103199808-200208

sub69052-26030

main69052-95J06iLH10#,11#,125,RZH10#,11#,125198908-199508

sub69052-95J08

main69052-95J07iLH103,113,125,RZH103,113,125..ARL199108-199308

sub69052-95J08

main69052-95J08iLH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199308-199508

69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH

main69053-26030iRZH103..5D..EFI;LH103,RZH102..5D;RZH102,103..SG..CBR;LH102,104,11#,RZH104,105,11#..LHD..(GCC,GEN)199508-199808

sub69053-26070

main69053-26040iLH105,113,115,164,166,174,176,RZH105,115,155..CIS199508-200408

main69053-26070iRZH102,115..CBR;LH103,RZH103..5D;RZH113..LHD..03S..GEN;LH114,115,RZH114..LHD..(12S,15S)..(GCC,GEN);LH102,104,112,113,174,RZH103,104,105,112,113..LHD..SRF..(03S,06S,199808-200508

main69053-95J06iLH103,RZH102,103..5D;LH102,104,105,11#,RZH104,105,11#..LHD..(GCC,GEN)198908-199508

sub69053-95J08

main69053-95J08iLH104,112,114,RZH104,112,114..CIS199308-199508

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-26070iRZH112..06S;RZH102..03S,09S;RZH112..RHD..03S;LH112,113,RZH113..5D;LH102,103,11#,125,RZH103,104,113,114,115,135,153..RHD..GEN199508-199808

sub69054-26100

main69054-26080iLH103,113,125,RZH103,113,125..ARL199508-200501

main69054-26100iRZH113..5D;RZH112..RHD..03S;RZH113..RHD..4D..GEN;LH112,172,RZH102,112..LHD..5D;LH112,114,115,172,174,RZH104,105,114..RHD..GEN;LH103,113,162,184,RZH103,135,153..(03S199808-200208

main69054-95J06iRZH112..RHD..03S;LH113,RZH102..GCC,GEN;RZH112,113..06S..(GCC,GEN);RZH112,113..5D..03S..(GCC,GEN);LH102,103,104,112,114,115,125,RZH103,104,114..RHD..GEN198908-199508

sub69054-95J08

main69054-95J07iLH103,113,125,RZH103,113,125..ARL199108-199308

sub69054-95J08

main69054-95J08iLH112..06S..CIS;LH103,113,125,RZH103,112,113,125..ARL,CIS199308-199508

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-26060iLH10#,11#,125,RZH10#,11#,135,153..GCC,GEN199508-199808

sub69055-26100

main69055-26080iLH103,105,113,115,125,166,176,RZH103,105,113,115,125..ARL,CIS199508-200501

sub69055-38020

main69055-26090iRZH113..LHD..EFI199508-199808

W(DOUBLE SWING BACK DOOR)

sub69055-26110

main69055-26100iRZH112..4D..06S199808-200208

main69055-26110iRZH113..LHD..03S..GEN199808-200501

W(DOUBLE SWING BACK DOOR)

main69055-38020iLH162,164,172,174,184,RZH155..ARL,CIS200008-200501

main69055-95J06iLH10#,11#,125,RZH10#,11#..GCC,GEN198908-199508

sub69055-95J08

main69055-95J07iLH103,113,125,RZH103,113,125..ARL199108-199308

sub69055-95J08

main69055-95J08iLH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199308-199508

main69055-95J09iLH113,RZH113..03S199001-199108

W(DOUBLE SWING BACK DOOR)

sub69055-95J11

main69055-95J10iLH113,RZH113..ARL199108-199308

W(DOUBLE SWING BACK DOOR)

sub69055-95J11

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-26050iLH10#,11#,125,RZH10#,11#,135,153..GCC,GEN199508-199808

sub69057-26080

main69057-26060iLH103,105,113,115,125,16#,17#,184,RZH103,105,113,115,125,155..ARL,CIS199508-200501

main69057-26080iRZH112..5D;RZH112..03S;LH102,103,104,11#,154,162,172,174,184,RZH10#,113,114,115,135,15#..GCC,GEN199808-200208

main69057-95J19iLH103,113,125,RZH103,113,125..ARL199108-199308

sub69057-95J21

main69057-95J20iLH10#,11#,125,RZH10#,11#,125198908-199508

sub69057-95J21

main69057-95J21iLH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199308-199508

sub69057-26060

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-26010iRZH104,105,112,114..GCC,GEN;LH10#,11#,RZH102,103,113,115..STD..(GCC,GEN)199508-199808

sub69058-26030

main69058-26020iLH103,105,113,115,125,16#,17#,184,RZH103,105,113,115,125,155..ARL,CIS199508-200501

main69058-26030iRZH103..03S..GEN199808-200208

main69058-95J04iLH10#,11#,RZH10#,11#..(DX,STD)..(GCC,GEN)198908-199508

sub69058-95J06

main69058-95J05iLH103,113,125,RZH103,113,125..ARL199108-199308

sub69058-95J06

main69058-95J06iLH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199308-199508

69058ECYLINDER & KEY SET, BATTERY COVER

main69058-26010iLH103,11#,RZH102,103,104,11#..RHD..4D..STD..GEN199608-199808

sub69058-26030

main69058-95J04iLH103,113,RZH103,113..03S..ARL198908-199010

sub69058-95J06

69503CYLINDER SET, LOCK

main69503-26290iLH102,103,11#,RZH102,103,104,11#..RHD..4D..STD..GEN199508-199808

sub69503-26510

main69503-26300iLH125..SMRF;LH125,RZH103..4D..STD..GEN;LH102,103,11#,RZH102,104,11#,135,153..RHD..4D..GEN199508-199808

W(FUEL LID OPENER)

sub69503-26520

main69503-26300iLH125,RZH103..RHD..(HRF,SRF)..4D..SG..GEN199703-199808

sub69503-26520

main69503-26330iLH102,104,11#,RZH102,104,105,11#..LHD..4D..(03S,06S,12S,15S)..(GCC,GEN)199508-199808

sub69503-26530

main69503-26340iLH102,104,11#,RZH10#,11#..LHD..4D..(GCC,GEN)199508-199808

W(FUEL LID OPENER)

sub69503-26540

main69503-26350iLH103,112,113,RZH102,103,112,113..5D199508-199808

sub69503-26550

main69503-26360iLH103,112,113,RZH102,103,112,113..5D199508-199808

W(FUEL LID OPENER)

sub69503-26560

main69503-26370iLH103,113,125,162,172,184,RZH103,113,125..ARL199508-200501

main69503-26380iLH103,113,125,162,172,184,RZH103,113,125..ARL199508-200501

W(FUEL LID OPENER)

sub69503-26370

main69503-26390iLH105,113,115,164,166,174,176,RZH105,115,155..CIS199508-200408

main69503-26440iRZH113..LHD..EFI199508-199808

W(DOUBLE SWING BACK DOOR)

sub69503-26580

main69503-26450iRZH113..LHD..EFI199508-199808

W(DOUBLE SWING BACK DOOR & FUEL LID OPENER)

sub69503-26590

main69503-26510iRZH112..4D..06S199808-200208

sub69503-26370

main69503-26520iLH103,11#,172,184,RZH103,104,112,113,114,135,153..RHD..4D..(03S,06S,12S,15S)..GEN199808-200208

W(FUEL LID OPENER)

main69503-26530iRZH115..15S..CBR;LH102,104,11#,RZH102,104,105,112,113,114..LHD..4D..(03S,06S,12S,15S)..(GCC,GEN)199808-200508

sub69503-26390

main69503-26540iLH102,104,112,114,115,154,172,174,RZH10#,11#,155..LHD..4D..(GCC,GEN)199808-200508

W(FUEL LID OPENER)

sub69503-26390

main69503-26550iRZH113..5D..CBR;LH103,112,113,RZH102,103,112..5D199808-200508

main69503-26560iRZH113..5D..CBR;LH103,112,113,RZH102,103,112..5D199808-200508

W(FUEL LID OPENER)

sub69503-26550

main69503-26580iRZH113..LHD..03S..GEN199808-200501

W(DOUBLE SWING BACK DOOR)

main69503-26590iRZH113..LHD..EFI199808-200501

W(DOUBLE SWING BACK DOOR & FUEL LID OPENER)

main69503-95J76iLH102,104,11#,125,RZH102,104,112,113,114..RHD..4D..GEN198908-199508

W(FUEL LID OPENER)

sub69503-95J80

main69503-95J77iLH113,RZH113..03S199001-199108

W(DOUBLE SWING BACK DOOR & FUEL LID OPENER)

sub69503-95J81

main69503-95J78iLH102,104,105,112,114,115,RZH104,105,11#..LHD..4D..(GCC,GEN)198908-199508

W(FUEL LID OPENER)

sub69503-95J72

main69503-95J79iLH103,113,RZH102,103,112,113..5D..(GCC,GEN)198908-199508

W(FUEL LID OPENER)

sub69503-95J74

main69503-95J80iLH103,113,125,RZH103,113,125..ARL199108-199508

W(FUEL LID OPENER)

main69503-95J81iLH113,RZH113..ARL199108-199308

W(DOUBLE SWING BACK DOOR & FUEL LID OPENER)

main69503-95N00iLH104,112,114,RZH104,114..4D..CIS199308-199508

sub69503-95N02

main69503-95N02iLH112,RZH112..5D..CIS199308-199508

main69503-95N04iLH10#,11#,125,RZH10#,11#,125..RHD..4D..STD198908-199508

sub69503-95N10

main69503-95N05iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM)

main69503-95N06iLH113,RZH113..03S199001-199108

W(DOUBLE SWING BACK DOOR)

main69503-95N07iLH113,RZH113..03S198908-199010

AUSTRALIA SPEC(FOR TELECOM) & W(DOUBLE SWING BACK DOOR)

main69503-95N08iLH102,104,105,112,114,115,RZH104,105,11#..LHD..4D..(GCC,GEN)198908-199508

sub69503-95N00

main69503-95N09iLH103,113,RZH102,103,112,113..5D..(GCC,GEN)198908-199508

sub69503-95N02

main69503-95N10iLH103,113,125,RZH103,113,125..ARL199108-199508

main69503-95N11iLH113,RZH113..ARL199108-199308

W(DOUBLE SWING BACK DOOR)

69503AKEY, BLANK

main90999-00130iLH103,113,125,RZH103,113,125..ARL199108-199508

MASTER KEY

sub90999-00153

main90999-00149iLH104,112,114,RZH104,112,114..CIS199108-199508

MASTER KEY,W(*68)

sub90999-00175

main90999-00163iLH10#,11#,RZH10#,11#..GEN198908-199508

MASTER KEY

sub90999-00174

main90999-00164iLH10#,11#,125,RZH10#,11#..GCC,GEN198908-199508

MASTER KEY,W(*68)

sub90999-00175

main90999-00185iRZH115..CBR;LH172..03S..GL;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH114,RZH112..SRF..(03S,06S,15S)..GEN;LH102,103,104,11199508-200208

MASTER KEY,W(*68)

main90999-00186iRZH115..CBR;LH172..03S..GL;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH114,RZH112..SRF..(03S,06S,15S)..GEN;LH102,103,104,11199508-200208

MASTER KEY

main90999-00199iLH103,105,113,115,125,16#,17#,184,RZH103,105,113,115,125,155..ARL,CIS199508-200501

MASTER KEY,W(*68)

69685PAD, LOCK CYLINDER

main69513-32010iRZH103..03S..GEN198908-200208

main69513-32010iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM)

9356854512

main93568-54512

12 parts on this diagram · 1 diagram in section
