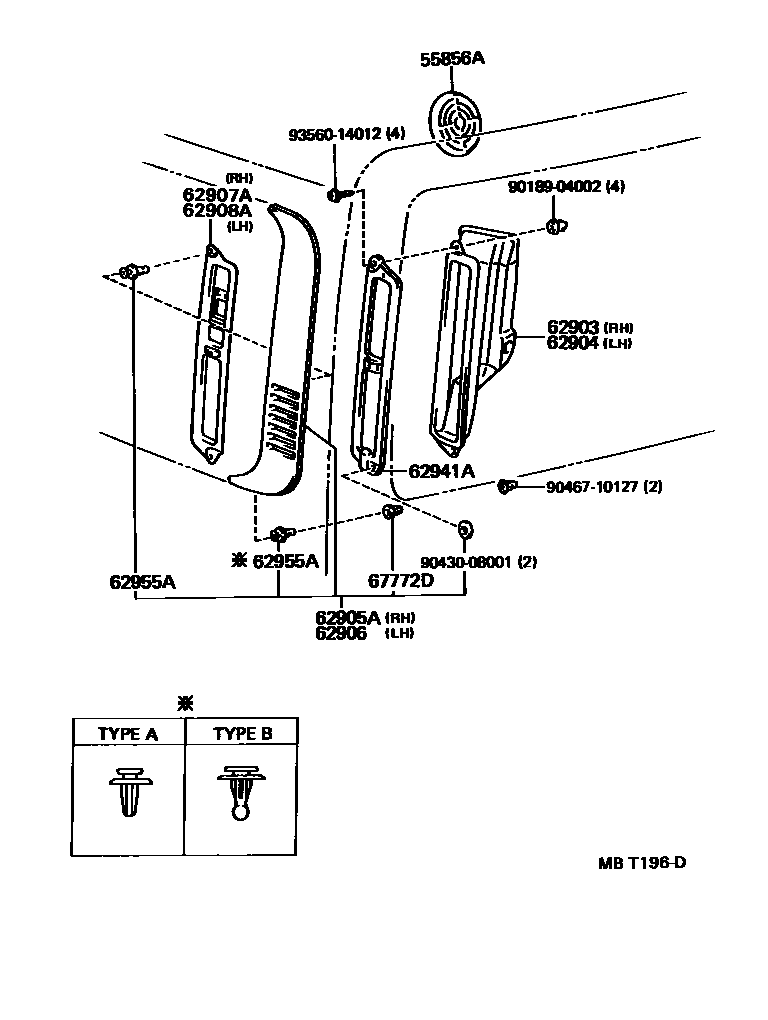

REAR VENTILATOR & ROOF VENTILATOR

55856ALOUVER, REAR VENTILATOR

main55856-95J00-08iLH10#,11#,RZH10#,11#..SRF198908-199308

IVORY,TRIM1#

sub55856-95J00

main55856-95J00-B0iLH10#,11#,RZH10#,11#..SRF..(DX,GL,STD)199308-199608

LI. GRAY,TRIM1#

sub55856-95J00

main55856-95J00-B1iLH184..HRF..GEN199907-200406

LT. BLUISH GRAY,TRIM1#

sub55856-95J00

main55856-95J00-B1iRZH103..03S..GEN199608-200208

LT.BLUISH GRAY,TRIM1#

sub55856-95J00

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-95J00iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,174..06S,10S,15S;LH114,172,RZH114..LHD..4D;LH10#,112,113,115,125,154,198908-200508

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-95J00iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-200508

62905ALOUVER, QUATER VENTILATION, RH

main62905-26030iRZH103..03S..GEN200107-200501

main62905-26040iLH112..06S200107-200211

MALAYSIA SPEC

main62905-26040iLH114,RZH114..RHD200107

KENYA SPEC

main62905-26040iLH174,RZH112..SG..(03S,12S)200211

main62905-95J00iRZH103..03S..GEN198908-200107

sub62905-26030

main62905-95J01iLH115;LH174,RZH115..10S;LH112,113,114,125,RZH112,114..RHD..SG198908-200107

W(QUARTER WINDOW GLASS BOTH SLIDE TYPE)

sub62905-26040

62906LOUVER, QUATER VENTILATION, LH

main62906-26030iLH174..15S;RZH112..RHD..SP;LH114,RZH112,114..LHD;LH10#,112,154,16#,172,176,184,RZH10#,113,115,125,135,15#200107-200501

main62906-26040iLH114,RZH114..RHD200107

KENYA SPEC

main62906-26040iLH174,RZH112..SG..(03S,12S)200211

main62906-26040iRZH112..4D..06S200107-200211

MALAYSIA SPEC

main62906-95J00iRZH103..03S..GEN198908-200107

sub62906-26030

main62906-95J01iLH114,154,176,RZH114,115,155..LHD..(GL,STD);LH174,184,RZH113,125,135..4D..(06S,12S,14S,15S)198908-200107

W(QUARTER WINDOW GLASS BOTH SLIDE TYPE)

sub62906-26040

62907AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, RH

main62907-26010iRZH112..4D..06S199308-200211

62908AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, LH

main62908-26010iRZH112..4D..06S199308-200211

62941ARETAINER, QUARTER VENT DUCT

main62941-95J01iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-200508

RH

main62942-95J01iLH114,172,RZH114..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200508

LH

62955ARETAINER, QUARTER VENT LOUVER

main62955-20020iLH10#,11#,125,RZH10#,11#,125198908-199308

TYPE A:REFER TO ILLUSTRATION

sub62955-12010

main62955-20040iLH10#,11#,125,RZH10#,11#,125198908-198911

TYPE B:REFER TO ILLUSTRATION

main62955-26010iLH125..ARL;LH10#,11#,RZH10#,11#,125199010-200208

TYPE B:REFER TO ILLUSTRATION

main62955-26010iRZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#200107-200208

TYPE B:REFER ILLUST.

main62955-26020iLH10#,11#,125,RZH10#,11#,125199308-199703

TYPE A:REFER TO ILLUSTRATION

sub90467-10077

main90467-06123iLH10#,11#,125,RZH10#,11#,125198911-199010

TYPE B:REFER TO ILLUSTRATION

main90467-10077iRZH103..03S..GEN199703-200208

TYPE A:REFER TO ILLUSTRATION

main90467-10077iRZH112..4D..06S200107-200208

TYPE A:REFER ILLUST.

67772DCAP, DOOR TRIM RETAINER

main67772-95J01iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-200208

main67772-95J01iLH114,RZH114..RHD..SRF199408-199508

KENYA SPEC

9018904002

main90189-04002

9043008001

main90430-08001

9046710127

main90467-10127

9356014012

main93560-14012

14 parts on this diagram · 1 diagram in section
