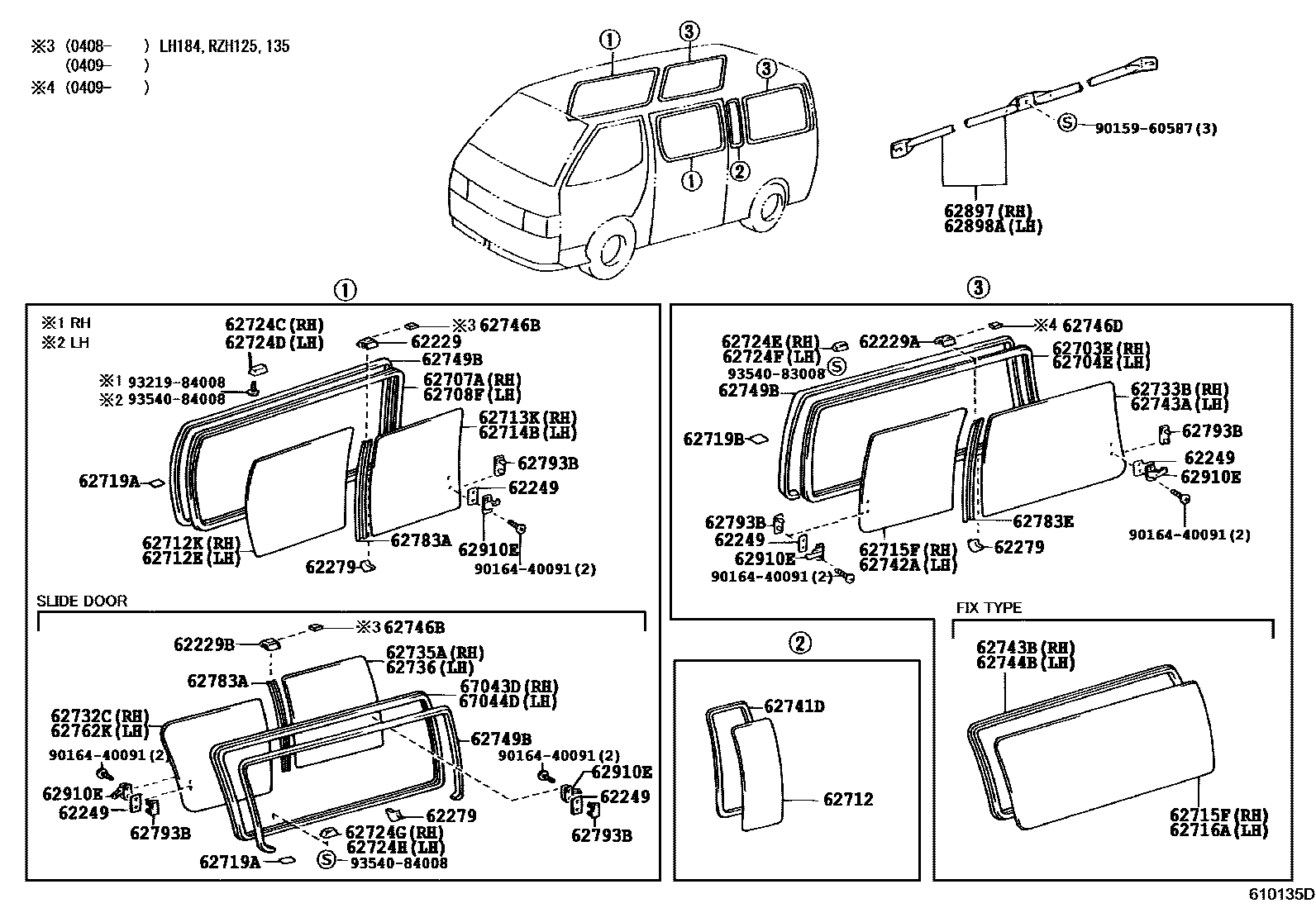

SIDE WINDOW

62229PACKING, SIDE WINDOW

main62229-26010iLH184,RZH125,135200408

main62229-95J01iLH172..GL..DEFI;LH112,172,RZH113..4D..SG..(DX,STD);LH114,174,RZH112,114..RHD..SG..(03S,12S,15S)199010-200409

62229APACKING, SIDE WINDOW, NO.2

main62229-95J01iLH11#,174,176,RZH11#..4D..SG199608-200208

W(SIDE WINDOW BOTH SLIDE TYPE)

main62229-95J01iRZH102..GL;LH104,105,113,125,164,166,184,RZH103,104,105,113,125,135..4D..SG199010-200501

62229BPACKING, SIDE WINDOW, NO.3

main62229-26010iLH11#,154,17#,184,RZH11#,125,135,155200409

main62229-95J01iLH10#,11#,125,RZH10#,11#,125199010-200409

62249PLATE, SIDE WINDOW, RH

main62249-95700iRZH103..03S..GEN198908-200208

W(SIDE WINDOW BOTH SLIDE TYPE)

main62249-95700iLH125,RZH113,125..SG;LH10#,11#,RZH10#,112,114..GEN198908-200501

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-95J03iLH10#,11#,125,RZH10#,11#,125198908-200208

62703EFRAME SUB-ASSY, SIDE REAR WINDOW, RH

main62705-95J03iLH104,RZH104..LHD;RZH102,103..5D..06S198908-199308

main62705-95J04iRZH104,105..RHD198908-200408

main62705-95J06iLH114,115,174,176,RZH114,115..LHD198908-200508

main62705-95J07iLH172..4D..06S..STD..DSL198908-199907

62704EFRAME SUB-ASSY, SIDE REAR WINDOW, LH

main62706-95J02iLH102,104,105,166,RZH10#..LHD..(09S,10S,12S)198908-200408

main62706-95J03iRZH102..06S;LH10#,RZH103,104..RHD..SG..GEN198908-199308

main62706-95J05iLH112,114,115,174,176,RZH113,114,115..LHD..(09S,10S,12S,15S)198908-200508

main62706-95J06iLH172..5D..06S;RZH112..SG..03S;LH113,114,115,174,RZH113,114..RHD..SG..STD198908-200208

main62706-95J08iLH125,184,RZH125,135198908-200501

62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH

main62707-95J00iLH102,103,112,113,RZH102,112,113..4D..06S198908-199308

main62707-95J01iRZH112..4D..06S198908-200501

main62707-95J03iLH125198908-200501

62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH

main62708-95J01iLH102,104,105,112,114,115,166,174,176,RZH10#,113,114,115..LHD..4D..(06S,09S,10S,12S,15S)198908-200508

62712GLASS, QUARTER WINDOW, LH

main62712-26090iLH125199608-200501

*TEM,T=3.5,GREEN

main62712-26150iLH125199907-200501

*TEM,T=3.5,DEEP GRAY

main62712-95J11iLH125,RZH125198908-199608

*TEM,T=3.5

sub62712-26090

main62712-95J12iLH125,RZH125..ARL198908-199608

*TT,T=3.5

sub62712-26090

62712EGLASS, SIDE FRONT WINDOW, LH

main62712-26100iLH174..LHD..STD;LH102,104,105,114,115,164,166,176,RZH10#,114,115..LHD..SG..(GL,STD)199608-200508

*TEM,T=4.0,GREEN

main62712-26180iLH174199808-200302

*TEM,T=4.0,DARK GRAY

sub62712-26181

main62712-26181iLH104,114,154,174,RZH102,104,105,114,115,155..LHD..(GCC,GEN)200302-200508

*TEM,T=4.0,DARK GRAY

main62712-95J09iLH102,104,105,112,114,115,RZH10#,113,114,115..LHD..4D..(06S,09S,12S,15S)198908-199608

*TEM,T=4.0

sub62712-26100

main62712-95J10iLH104,105,114,115,RZH104,105,114,115..LHD..(GCC,GEN)198908-199608

*TT,T=4.0

sub62712-26100

62712KGLASS, SIDE WINDOW, FRONT RH

main62711-26110iLH113,115..RHD..SG199608-200501

*TEM,T=4.0,GREEN

main62711-26120iLH184,RZH125,135199608-200501

*TEM,T=4.0,GREEN

main62711-26190iLH114,RZH114..RHD199907-200501

*TEM,T=4.0,DEEP GRAY

main62711-26200iLH125199907-200501

*TEM,T=4.0,DEEP GRAY

main62711-95J08iLH112..4D..06S198908-200211

*TEM,T=4.0

sub62711-26110

main62711-95J09iLH11#,RZH102,104,11#..RHD..SG198908-199608

*TT,T=4.0

sub62711-26110

main62711-95J11iLH125,RZH125198908-199608

*TEM,T=4.0

sub62711-26120

main62711-95J12iLH125,RZH125198908-199608

*TT,T=4.0

sub62711-26120

62713KGLASS, SIDE WINDOW, REAR RH

main62713-26040iLH113,115..RHD..SG199608-200501

*TEM,T=4.0,GREEN

main62713-26050iLH125,184,RZH125,135199608-200501

*TEM,T=4.0,GREEN

main62713-26070iRZH104,112..RHD..SG199907-200501

*TEM,T=4.0,DEEP GRAY

main62713-26080iLH125199907-200501

*TEM,T=4.0,DEEP GRAY

main62713-95J17iLH102,103,112,113,RZH102,112,113..4D..06S198908-199308

*TEM,T=4.0

sub62713-95J18

main62713-95J18iRZH113..06S..ARL;LH102,103,112,113,RZH102,112..4D..06S198908-199308

*TT,T=4.0

main62713-95J19iLH104,105,114,115,RZH104,114..RHD198908-200211

*TEM,T=4.0

sub62713-26040

main62713-95J20iLH11#,RZH102,104,11#..RHD..SG198908-199608

*TT,T=4.0

sub62713-26040

main62713-95J23iLH125,RZH125198908-199608

*TEM,T=4.0

sub62713-26050

main62713-95J24iLH125,RZH125198908-199608

*TT,T=4.0

sub62713-26050

62714BGLASS, SIDE WINDOW, REAR LH

main62714-26060iRZH155..CIS199608-200508

*TEM,T=4.0,GREEN

main62714-26090iLH174199808-200302

*TEM,T=4.0,DARK GRAY

sub62714-26091

main62714-26091iLH104,114,154,174,RZH102,104,105,114,115,155..LHD..(GCC,GEN)200302-200508

*TEM,T=4.0,DARK GRAY

main62714-95J10iLH102,104,105,112,114,115,RZH10#,113,114,115..LHD..4D..(06S,09S,12S,15S)198908-199608

*TEM,T=4.0

sub62714-26060

main62714-95J11iLH104,105,114,115,RZH104,105,114,115..LHD..(GCC,GEN)198908-199608

*TT,T=4.0

sub62714-26060

62715FGLASS, SIDE REAR WINDOW, RH

main62715-26210iRZH104..LHD;LH10#,166,RZH102,103,105..SG..(GL,SGL,STD)199608-200408

*TEM,T=3.5,GREEN

main62715-26220iRZH112..4D..06S199608-200508

*TEM,T=3.5,GREEN

main62715-26230iLH114,115,176,RZH114,115..LHD199608-200508

*TEM,T=3.5,GREEN

main62715-26230iLH172,RZH113..RHD..5D..06S200108-200501

*TEM,T=3.5,GREEN,W(SIDE WINDOW BOTH SLIDE TYPE)

main62715-26240iRZH104,105..RHD199608-200408

*TEM,T=4.0,GREEN

main62715-26250iLH172..4D..06S..STD..DSL199608-199907

*TEM,T=4.0,GREEN

main62715-26350iLH164,166,RZH105..CIS199907-200408

*TEM,T=3.5,DEEP GRAY

main62715-26360iRZH112..4D..06S199907-200501

*TEM,T=3.5,DEEP GRAY,W(SIDE WINDOW FIX TYPE)

main62715-26580iLH174199808-200302

*TEM,T=3.5,DEEP GRAY

sub62715-26581

main62715-26581iLH172,RZH113..RHD..5D..06S;LH114,154,174,RZH114,115,155..LHD..(GCC,GEN)200302-200508

*TEM,T=3.5,DEEP GRAY

main62715-26640iLH172,174..RHD..SRF..4D..SG..STD..DSL199907

*TEM,T=3.5,DEEP GRAY,W(SIDE WINDOW BOTH SLIDE TYPE)

main62715-26640iLH174,184..HRF..(14S,15S)..STD200008-200501

*TEM,T=3.5,DEEP GRAY

main62715-26650iRZH104..RHD199907-200108

*TEM,T=3.5,DEEP GRAY

main62715-95J05iRZH104..LHD;LH10#,RZH102,103,105..SG..(CBR,DSL)199308-199608

*TEM,T=3.5

sub62715-26210

main62715-95J05iLH102,103,RZH102,103..06S198908-199308

*TEM,T=3.5,W(SIDE WINDOW FIX TYPE)

sub62715-26210

main62715-95J06iRZH104..LHD..GEN;LH103,104,105,RZH105..SG..(GCC,GEN)199308-199608

*TT,T=3.5

sub62715-26210

main62715-95J07iLH114,115,RZH114..LHD;LH112,113,RZH112,113,115..06S,09S,15S199308-199608

*TEM,T=3.5

sub62715-26220

main62715-95J07iLH112,113,RZH112,113..06S198908-199308

*TEM,T=3.5,W(SIDE WINDOW FIX TYPE)

sub62715-26220

main62715-95J08iRZH113..06S..ARL198908-199608

*TT,T=3.5

sub62715-26220

main62715-95J10iLH104,RZH104..LHD;RZH102,103..5D..06S198908-199308

*TEM,T=3.5,W(SIDE WINDOW REAR SLIDE TYPE)

sub62715-95J11

main62715-95J11iLH104,RZH102,104..LHD..SG198908-199308

*TT,T=3.5

main62715-95J12iLH10#,RZH102,104..RHD..SG198908-199608

*TEM,T=4.0

sub62715-26240

main62715-95J13iLH10#,RZH102,103,104..RHD..4D..SG198908-199608

*TT,T=4.0

sub62715-26240

main62715-95J15iLH114,RZH112,114..LHD..SG198908-199308

*TEM,T=3.5,W(SIDE WINDOW REAR SLIDE TYPE)

sub62715-26230

main62715-95J15iLH114,115,RZH114,115..LHD199408-199608

*TEM,T=3.5

sub62715-26230

main62715-95J16iLH114,115,RZH114,115..LHD..(GCC,GEN)198908-199608

*TT,T=3.5

sub62715-26230

main62715-95J17iLH174,RZH112..SG..(03S,12S)198908-199907

*TEM,T=4.0

sub62715-26250

main62715-95J18iLH125..ARL;LH114,115,RZH114,115,125..RHD198908-199608

*TT,T=4.0

sub62715-26250

62716AGLASS, SIDE REAR WINDOW, LH

main62716-26230iRZH104..RHD;LH102,103,RZH102,103..SG..(DX,STD)199608-200408

*TEM,T=3.5,GREEN

main62716-26240iLH172..4D..06S..STD..DSL199608-200508

*TEM,T=3.5,GREEN

main62716-26370iRZH104..RHD;LH102,103,162,RZH102,103..06S199907-200408

*TEM,T=3.5,DEEP GRAY

main62716-26380iLH112,113..06S;RZH113..06S..GCC;RZH113..RHD..06S;LH172,RZH112..5D..06S199907-200501

*TEM,T=3.5,DEEP GRAY

main62716-95J08iLH102,103,RZH102,103..06S198908-199608

*TEM,T=3.5

sub62716-26230

main62716-95J09iRZH104..RHD;LH102,103,RZH102,103..SG..(DX,STD)199308-199608

*TT,T=3.5

sub62716-26230

main62716-95J10iLH112,113,RZH112,113..06S198908-199608

*TEM,T=3.5

sub62716-26240

main62716-95J11iRZH113..06S..ARL198908-199608

*TT,T=3.5

sub62716-26240

62719APACKING, SIDE FRONT WINDOW, UPPER

main62719-95J02iRZH103..06S..EFI;RZH103..ARL..EFI;RZH112,114,115..GL;LH125,184,RZH125,135;LH113,115,RZH115..CIS;RZH103..(03S,09S)..(GL,STD)..GEN;LH172,RZH113..RHD..STD..(DSL,EFI);L198908-200501

50 X 16.5

main62719-95J02iRZH103..06S..EFI;RZH103..ARL..EFI;RZH112,114,115..GL;LH125,184,RZH125,135;LH113,115,RZH115..CIS;RZH103..(03S,09S)..(GL,STD)..GEN;LH172,RZH113..RHD..STD..(DSL,EFI);L198908-200210

50 X 16.5,SLIDE DOOR

main62719-95J03iRZH103..03S..GEN198908-200210

30 X 16.5

62719BPACKING, SIDE REAR WINDOW, UPPER

main62719-95J02iRZH113..GEN;LH11#,125,RZH112,114,125..SG198908-200208

50 X 16.5

main62719-95J03iRZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..SG198908-200208

30 X 16.5

62724CSTOP, SIDE FRONT WINDOW GLASS, RH

main62724-95J04iLH172..GL..DEFI;LH112,184,RZH113,125,135..4D..SG;LH172,174..RHD..4D..(06S,15S)..STD198908-200501

main62751-95661iLH102,103,112,113,RZH102,112,113..4D..06S198908-199308

62724DSTOP, SIDE FRONT WINDOW GLASS, LH

main62724-95J04iRZH112..LHD..03S198908-200508

62724ESTOP, SIDE REAR WINDOW GLASS, RH

main62724-95J04iLH172,RZH113..RHD..5D..06S;LH114,115,154,174,176,RZH114,115,155..LHD198908-200508

FRONT

main62724-95J05iRZH102,103..5D..06S;LH104,114,RZH104,112,114..LHD..SG198908-200508

REAR

62724FSTOP, SIDE REAR WINDOW GLASS, LH

main62724-95J04iLH174..12S;LH114,RZH112,114..RHD..SG..(03S,15S)198908-200501

FRONT

main62724-95J05iLH114,RZH114..RHD198908-200501

REAR

62724GSTOP, SLIDE DOOR WINDOW GLASS, RH

main62724-95J04iLH104,114,RZH104,114..LHD198908-200508

main62751-95661iLH103,RZH102,103..5D;LH102,112,RZH112..LHD198908-199308

62724HSTOP, SLIDE DOOR WINDOW GLASS, LH

main62724-95J04iRZH103..03S..GEN198908-200108

main62751-95661iRZH102;RZH112,113..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103..RHD..GEN198908-199308

62732CGLASS, SLIDE DOOR WINDOW, FRONT RH

main62732-26070iRZH155..CIS199608-200508

*TEM,T=4.0,GREEN

main62732-26110iRZH102..03S199808-200302

*TEM,T=4.0,DEEP GRAY

sub62732-26111

main62732-26111iRZH113..GCC;LH162,172..5D;RZH103,113..RHD..5D..06S;LH172,RZH113..LHD..4D..GEN;LH10#,11#,154,174,RZH102,104,105,112,114,115,155..LHD..(GCC,GEN)200302-200508

*TEM,T=4.0,DEEP GRAY

main62732-95J10iRZH103..GEN;LH103,RZH102..5D;RZH102..4D..06S..5F;LH102,104,105,11#,RZH104,105,11#..LHD198908-199608

*TEM,T=4.0

sub62732-26070

main62732-95J11iLH103,RZH102..5D;RZH102,103..SG..CBR;LH102,104,11#,RZH104,105,11#..LHD198908-199608

*TT,T=4.0

sub62732-26070

62733BGLASS, SIDE REAR WINDOW, REAR RH

main62717-26030iRZH113..06S..GEN..CBR;LH113,114,115,125,RZH114,115,125,135..SG199608-199907

*TEM,T=4.0,GREEN

main62717-26040iRZH102,103,104..RHD..4D..SG199608-200408

*TEM,T=4.0,GREEN

main62717-26050iLH172,174..RHD..SRF..4D..SG..STD..DSL199808-200302

*TEM,T=4.0,DEEP GRAY

sub62717-26051

main62717-26051iRZH113..RHD..06S;LH174..15S..(GCC,GEN);LH114,154,172,184,RZH114,115,125,135,155..SG..(ARL,GCC,GEN)..(CBR,DSL,EFI)200302

*TEM,T=4.0,DEEP GRAY

main62717-26080iRZH104..RHD199907-200108

*TEM,T=4.0,DEEP GRAY

main62717-95J04iLH10#,RZH10#..SG..GEN198908-199608

*TEM,T=4.0

sub62717-26040

main62717-95J05iRZH102..06S..4F;RZH102..LHD..06S..5F;LH10#,RZH103,104..4D..SG198908-199608

*TT,T=4.0

sub62717-26040

main62717-95J07iLH112,114,115,125,RZH112,114,125..RHD..SG198908-199907

*TEM,T=4.0

sub62717-26030

main62717-95J08iLH11#,125,RZH112,114,125..SG198908-199608

*TT,T=4.0

sub62717-26030

62735AGRASS, SLIDE DOOR WINDOW, REAR RH

main62735-26040iRZH103..03S..GEN199608-200508

*TEM,T=4.0,GREEN

main62735-26100iLH174199808-200302

*TEM,T=4.0,DEEP GRAY

sub62735-26101

main62735-26101iRZH113..GCC;LH162,172..5D;RZH103,113..RHD..5D..06S;LH172,RZH113..LHD..4D..GEN;LH10#,11#,154,174,RZH102,104,105,112,114,115,155..LHD..(GCC,GEN)200302-200508

*TEM,T=4.0,DEEP GRAY

main62735-95J05iLH103,RZH102,103..5D;LH102,112,RZH112..LHD198908-199308

*TEM,T=4.0

sub62735-95J06

main62735-95J06iRZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,112,RZH112..LHD198908-199308

*TT,T=4.0

main62735-95J07iLH104,114,RZH104,114..LHD198908-199608

*TEM,T=4.0

sub62735-26040

main62735-95J08iLH103,RZH102..5D;LH102,104,105,11#,RZH104,105,11#..LHD..STD..(GCC,GEN)198908-199608

*TT,T=4.0

sub62735-26040

62736GLASS, SLIDE DOOR WINDOW, REAR LH

main62736-26060iRZH113..5D;LH172,174..RHD..(06S,15S);LH172,RZH112..RHD..SP..STD;LH112,172,RZH102,112..LHD..5D;LH112,114,115,RZH104,105,113,114..RHD..4D;LH103,113,125,162,184,RZH103199608-200108

*TEM,T=4.0,GREEN

main62736-26090iRZH112..4D..06S199907-200108

*TEM,T=4.0,DEEP GRAY

main62736-95J09iRZH102;RZH112,113..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103..RHD..GEN198908-199308

*TEM,T=4.0

sub62736-95J10

main62736-95J10iRZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH113..06S..ARL;RZH102,112..5D..03S;LH102,103,112,113..RHD..GEN198908-199308

*TT,T=4.0

main62736-95J11iLH112..RHD;RZH112..4D..06S..CBR198908-199907

*TEM,T=4.0

sub62736-26060

main62736-95J12iLH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG198908-199608

*TT,T=4.0

sub62736-26060

62741DWEATHERSTRIP, SIDE FRONT WINDOW

main62741-95J07iLH125198908-200501

62742AGLASS, SIDE REAR WINDOW, FRONT LH

main62716-26250iLH172..4D..06S..STD..DSL199608-199907

*TEM,T=3.5,GREEN

main62716-26270iLH102,104,105,166,RZH10#..LHD..(09S,10S,12S)199608-200408

*TEM,T=4.0,GREEN

main62716-26280iLH174..LHD..STD;LH114,115,176,RZH114,115..LHD..(GL,STD)199608-200508

*TEM,T=4.0,GREEN

main62716-26590iLH174,176,RZH115,155..(GL,STD)..CIS199808-200302

*TEM,T=4.0,DEEP GRAY

sub62716-26591

main62716-26591iLH114,154,174,RZH114,115,155..LHD..(GCC,GEN)200302-200508

*TEM,T=4.0,DEEP GRAY

main62716-26640iLH164,166,RZH105..CIS199907-200408

*TEM,T=4.0,DEEP GRAY

main62716-26650iLH172..5D..06S;LH174..HRF..15S;LH113,114,115,125,184,RZH113,114,125,135..RHD..SG..(GL,STD)199907

*TEM,T=3.5,DEEP GRAY

main62716-95J15iRZH102..06S;LH10#,RZH103,104..RHD..SG..GEN198908-199308

*TEM,T=3.5

sub62716-95J16

main62716-95J16iRZH102..06S..4F;RZH102..LHD..06S..5F;LH10#,RZH104..RHD..SG198908-199308

*TT,T=3.5

main62716-95J17iLH104,105,RZH103,104,105..LHD198908-199608

*TEM,T=4.0

sub62716-26270

main62716-95J18iLH104,RZH103,104,105..LHD198908-199608

*TT,T=4.0

sub62716-26270

main62716-95J20iLH11#,125,RZH11#,125..RHD..SG..(CBR,DSL)198908-200208

*TEM,T=3.5

sub62716-26250

main62716-95J21iLH125..ARL;LH114,115,RZH114,115,125..RHD198908-199608

*TT,T=3.5

sub62716-26250

main62716-95J22iLH112,114,115,RZH113,114,115..LHD..(09S,15S)198908-199608

*TEM,T=4.0

sub62716-26280

main62716-95J23iLH114,115,RZH114,115..LHD..(GCC,GEN)198908-199608

*TT,T=4.0

sub62716-26280

62743AGLASS, SIDE REAR WINDOW, REAR LH

main62718-26050iLH172..4D..06S..STD..DSL199608-199907

*TEM,T=4.0,GREEN

main62718-26070iLH104,105,164,166,RZH10#..LHD..(09S,10S,12S)199608-200408

*TEM,T=4.0,GREEN

main62718-26080iRZH115..SGL;LH172..5D..06S;LH174..HRF..15S;RZH113..RHD..06S;LH174,RZH115,155..LHD..(GCC,GEN);LH113,114,115,125,154,184,RZH114,125,135..SG199808-200302

*TEM,T=4.0,DEEP GRAY

sub62718-26081

main62718-26081iLH174..HRF..15S;RZH113..RHD..06S;LH174..LHD..(GCC,GEN);LH114,154,172,184,RZH114,115,125,135,155..SG..(ARL,GCC,GEN)..(CBR,DSL,EFI)200302

*TEM,T=4.0,DEEP GRAY

main62718-26130iRZH105..LHD..(GCC,GEN);LH104,105,RZH102,103,104..LHD..(09S,10S,12S)199907-200408

*TEM,T=4.0,DEEP GRAY

main62718-95J04iLH10#,RZH10#..SG..GEN198908-199608

*TEM,T=4.0

sub62718-26070

main62718-95J05iLH104,105,RZH104,105..LHD..(GCC,GEN)198908-199608

*TT,T=4.0

sub62718-26070

main62718-95J07iLH11#,125,RZH11#,125..4D..SG..(CBR,DSL)198908-200208

*TEM,T=4.0

sub62718-26050

main62718-95J08iLH125;LH114,RZH114..LHD..GEN;LH115,RZH115,125..ARL,GCC198908-199608

*TT,T=4.0

sub62718-26050

62743BWEATHERSTRIP, SIDE REAR WINDOW

main62743-95J11iLH102,103,RZH102,103..06S198908-200408

main62743-95J12iLH112,113,RZH112,113..06S198908-200508

62744BWEATHERSTRIP, SIDE REAR WINDOW, LH

main62743-95J11iRZH104..RHD;LH102,103,162,RZH102,103,105..SG..STD..GEN198908-200408

main62743-95J12iRZH112..4D..06S198908-200508

62746BPACKING, QUARTER WINDOW, RH

main62746-26030iLH172..5D;RZH112..SG;RZH113..LHD;RZH113..RHD..SG;RZH113..5D..03S..GEN;LH112,172,RZH112..LHD..4D;LH11#,154,17#,RZH114,115,155..4D..SG200408

62746DPACKING, QUARTER WINDOW, LH

main62746-26030iRZH113..5D;LH172..LHD..5D;RZH112,113..RHD..SRF..4D;LH112,172,184,RZH125,135..RHD;LH114,154,174,RZH112,114,115,155..SG200409

62749BSEAL, SIDE WINDOW FRAME

main62749-95J01iLH125,RZH103,113,125..SG;LH10#,11#,RZH102,104,112,114..GEN198908-200210

62762KGLASS, SIDE DOOR WINDOW, FRONT LH

main62733-26140iRZH112..06S;RZH112..RHD..03S;LH184,RZH102..03S,09S,15S;LH112,113,RZH113..LHD..5D;LH113,RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH103,112,114,115,125,RZH1199608-200108

*TEM,T=4.0,GREEN

main62733-26240iRZH102..03S;LH103..4D..GEN199907-200108

*TEM,T=4.0,DEEP GRAY

main62733-95J19iLH112..RHD;RZH112..4D..06S..CBR198908-199907

*TEM,T=4.0

sub62733-26140

main62733-95J20iLH113;RZH113..5D;RZH112..06S..GEN;RZH103,112,113..RHD..03S;LH102,103,112,114,115,125,RZH102,104,114,125..RHD198908-199608

*TT,T=4.0

sub62733-26140

62783ASASH, SIDE WINDOW, CENTER

main62783-95J00iRZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH112,113,RZH103..(DX,STD)..(DSL,EFI);LH174,RZH103,105..(03S,06S,09S,10S,12S)..(CBR,DSL);LH10#,114,115,125,166,176,198908-200409

main62784-26010iRZH113..5D;LH172..LHD..5D;RZH112,113..RHD..SRF..4D;LH112,172,184,RZH125,135..RHD;LH114,154,174,RZH112,114,115,155..SG200409

LH

62783ESASH, SIDE REAR WINDOW, CENTER

main62783-95J00iRZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..SG198908-200208

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95J01iRZH103..03S..GEN198908-200208

W(SIDE WINDOW BOTH SLIDE TYPE)

main62793-95J01iLH125,RZH113,125..SG;LH10#,11#,RZH10#,112,114..GEN198908-200501

62897TUBE, SIDE WINDOW GUARD

main62897-95J06iLH102,103,162,RZH102,103..06S198908-200408

main62897-95J07iLH172..4D..06S..STD..DSL198908-200508

62898ATUBE, SIDE WINDOW GUARD, LH

main62898-95J01iLH102,103,162,RZH102,103..06S198908-200408

main62898-95J02iLH172..4D..06S..STD..DSL198908-200508

62910ELOCK ASSY, SIDE WINDOW

main62910-95703iLH172..03S..GL198908-200208

W(SIDE WINDOW BOTH SLIDE TYPE)

main62910-95703iRZH112..4D..06S198908-200501

67043DFRAME SUB-ASSY, SLIDE DOOR WINDOW, RH

main67043-95J01iRZH103..5D..EFI;LH103,RZH102..5D;RZH115..STD..CIS;LH174,RZH102,103..(06S,09S,10S)..(CBR,DSL);RZH105,113..LHD..4D..(DX,STD)..(CIS,GEN)..EFI;LH102,104,105,11#,166,176198908-200508

main67043-95J02iLH103,RZH102,103..5D;LH102,112,RZH112..LHD198908-199308

67044DFRAME SUB-ASSY, SLIDE DOOR WINDOW, LH

main67044-95J01iRZH102;RZH112,113..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103..RHD..GEN198908-199308

main67044-95J02iLH172..03S..GL198908-200108

9015960587

main90159-60587

9016440091

main90164-40091

9321984008

main93219-84008

9354083008

main93540-83008

9354084008

main93540-84008

50 parts on this diagram · 1 diagram in section
