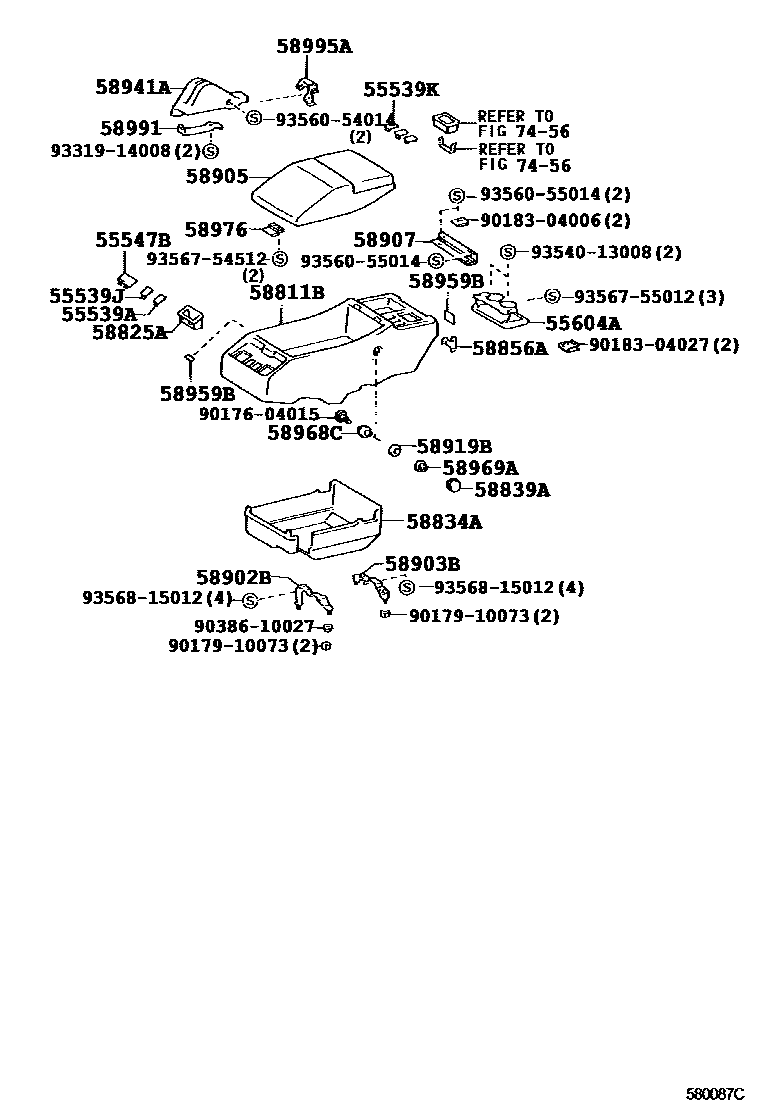

CONSOLE BOX & BRACKET

0001 1CENTER CONSOLE BOX 0003 1CENTER CONSOLE BOX 0006 1CENTER CONSOLE BOX 0007 1SEAT BACK TYPE 0008 1SEAT BACK TYPE 0009 1SHIFT CONSOLE

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-11iRZH103..GL198908-199108

BLACK,TRIM1#

sub55539-32030

main55539-32010-C0×2iLH174199808-199907

BLACK,TRIM1#

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-32010-11iRZH103..GL198908-199108

BLACK,TRIM1#

sub55539-32030

55539KCOVER, SPARE SWITCH HOLE

main55539-20030-23×3iRZH103..GL198908-199108

GRAY,TRIM1#

main55539-20030-B1iLH102..GL199801-199807

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

main55539-20030-E2×3iLH154..10S200008-200501

ANTELOPE,TRIM4#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-95J00iRZH103..GL198908-199108

main55547-95J00-C0iLH154,RZH113..08S,11S199907-200501

BLACK,TRIM1#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-26040iRZH113,153..DX,GL199907-200501

main55604-95J00-03iRZH103..GL198908-199108

GRAY,TRIM1#

sub55604-95J01

main55604-95J00-B0iRZH155..CIS199907-200408

BLUISH GRAY,TRIM1#

sub55604-95J01

main55604-95J00-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55604-95J01

58811BBOX, CONSOLE

main58811-26040-B0iRZH153199808-199907

BLUISH GRAY,TRIM1#

main58811-26040-E0iRZH153199907-200501

ANTELOPE,TRIM4#

main58811-95J04-03iLH125,RZH125198908-199308

GRAY,TRIM1#

main58811-95J04-B0iLH174..RHD..SRF;LH162,172,RZH103,113..RHD..5D..03S200208

BLUISH GRAY,TRIM1#

main58811-95J05-03iRZH103..GL198908-199108

GRAY,TRIM1#

main58811-95J05-B0iLH174199808-199907

BLUISH GRAY,TRIM1#

main58811-95J05-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

58825APOCKET, CONSOLE BOX

main55440-26050iRZH153199808-199907

main58825-95J00iLH174,RZH103..05S,10S198908-199907

58834ACOVER, CONSOLE, LOWER

main58834-26010iLH174,RZH103..05S,10S199006-199907

main58834-26050-B0iRZH113..DX199907-200501

BLUISH GRAY,TRIM1#

main58834-26050-E0iRZH153199907-200501

ANTELOPE,TRIM4#

main58834-95J00iRZH103..GL198908-199006

58839ACOVER, CONSOLE BOX HOLE

main58839-95J00iLH102..GL199801-199807

W(FRONT SEPARATE SEAT),TRIM1#

main58839-95J00-03×2iRZH103..GL198908-199108

GRAY,TRIM1#

main58839-95J00-B0×2iRZH153199907-200008

BLUISH GRAY,TRIM1#

main58839-95J00-E0×2iLH154,RZH153..03S,10S199907-200501

ANTELOPE,TRIM4#

58856AHOLDER, CONSOLE BOX

main58856-95J05×2iLH174,RZH103..05S,10S198908-199907

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-26010iRZH153199808-199907

main58902-95J03iLH154199907-200501

58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2

main58903-26020iRZH153199808-199907

main58903-95J02iLH102..GL199801-199807

W(FRONT SEPARATE SEAT)

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-26090-B0iRZH153199808-199907

BLUISH GRAY,TRIM1#

main58905-26090-E1iRZH153199907-200501

ANTELOPE,TRIM4#

main58905-26130-B0iLH174199808-199907

BLUISH GRAY,TRIM1#

main58905-26190-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

main58905-95J03-03iRZH103..GL198908-199108

GRAY,TRIM1#

main58905-95J03-B0iRZH155..CIS200008-200408

BLUISH GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-95J04-03iRZH103..GL198908-199108

GRAY,TRIM1#

main58907-95J04-B0iLH102..GL199801-199807

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

main58907-95J04-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

58919BPLATE, CONSOLE BOX

main58919-32030×2iLH102..GL199801-199807

W(FRONT SEPARATE SEAT)

main58919-95J01-03iLH125,RZH125198908-199308

GRAY,TRIM1#

main58919-95J01-B0iLH172..RHD..SRF..4D..03S..STD..GEN200211

BLUISH GRAY,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58904-26020-B0iRZH153199907-200008

BLUISH GRAY,TRIM1#

main58904-26020-E0iRZH153199907-200501

ANTELOPE,TRIM4#

main58904-95J02-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

GRAY,TRIM1#

main58904-95J02-B0iRZH112..4D..06S199907-200208

BLUISH GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-26010×2iLH174,RZH115..10S199907-200008

FRONT

main58959-95J00×4iRZH103..GL198908-199001

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-26010×2iRZH113,153..DX,GL199907-200501

main58968-32020×2iLH174,RZH103..05S,10S198908-199907

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010×2iLH154,RZH113,153..DX,GL199907-200501

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020×2iLH102..GL199801-199807

W(FRONT SEPARATE SEAT)

main58976-22020iRZH103..GL198908-199108

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-95J03iRZH103..03S..GEN200208

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95J02iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-199411

7456

9017604015

main90176-04015

9017910073

main90179-10073

9018304006

main90183-04006

9018304027

main90183-04027

9038610027

main90386-10027

9331914008

main93319-14008

9354013008

main93540-13008

9356054014

main93560-54014

9356055014

main93560-55014

9356754512

main93567-54512

9356755012

main93567-55012

9356815012

main93568-15012

35 parts on this diagram · 6 diagrams in section
