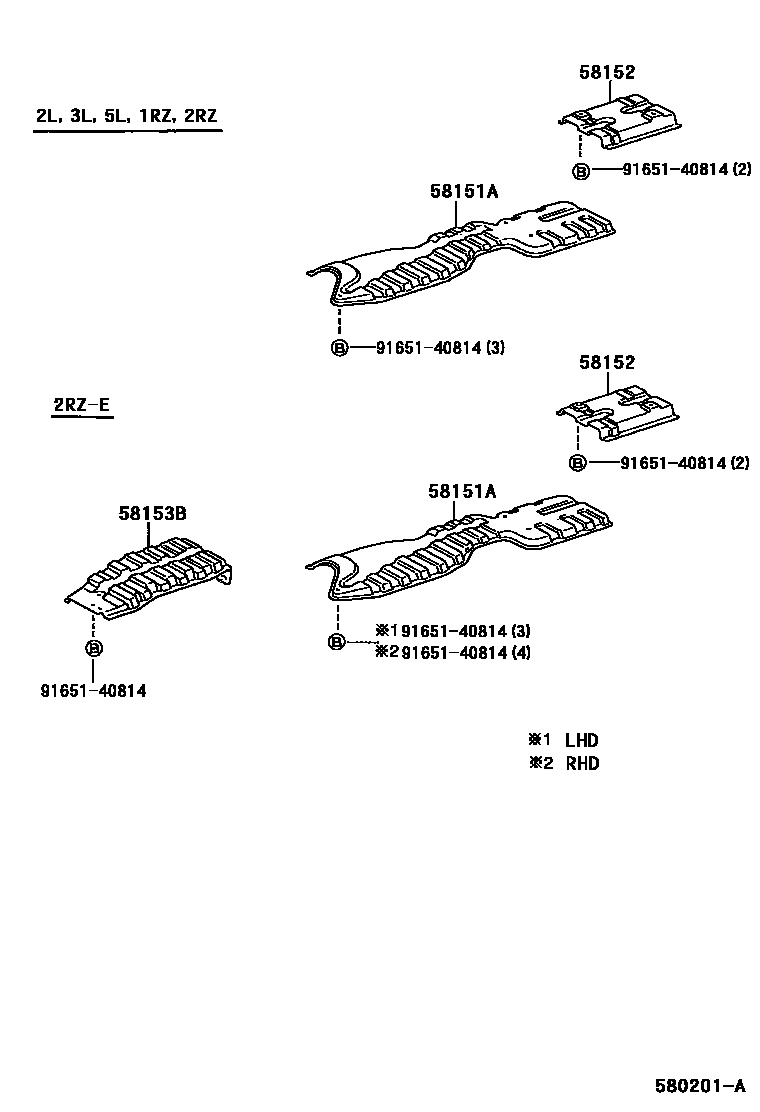

FLOOR INSULATOR

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-26030iLH154,RZH135,15#199611-200501

main58151-26080iRZH112..5D;RZH112..03S;LH11#,17#,184,RZH113,114,115,125200103-200208

main58151-26090iRZH103..03S..GEN200205-200408

main58151-95J02iLH10#,16#,RZH10#198908-200205

sub58151-26090

sub46420-26251

sub46420-26281

sub46420-26430

sub46420-26440

main58151-95J03iLH11#,125,17#,184,RZH11#,125198908-200103

sub58151-26080

sub46420-26251

sub46420-26281

sub46420-26430

sub46420-26440

sub91651-40814

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-95J04iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-200208

main58152-95J05iLH154,RZH135,15#199611-200501

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-95J02iRZH103,113,125..5F..ARL199405-200508

9165140814

main91651-40814

4 parts on this diagram · 1 diagram in section
