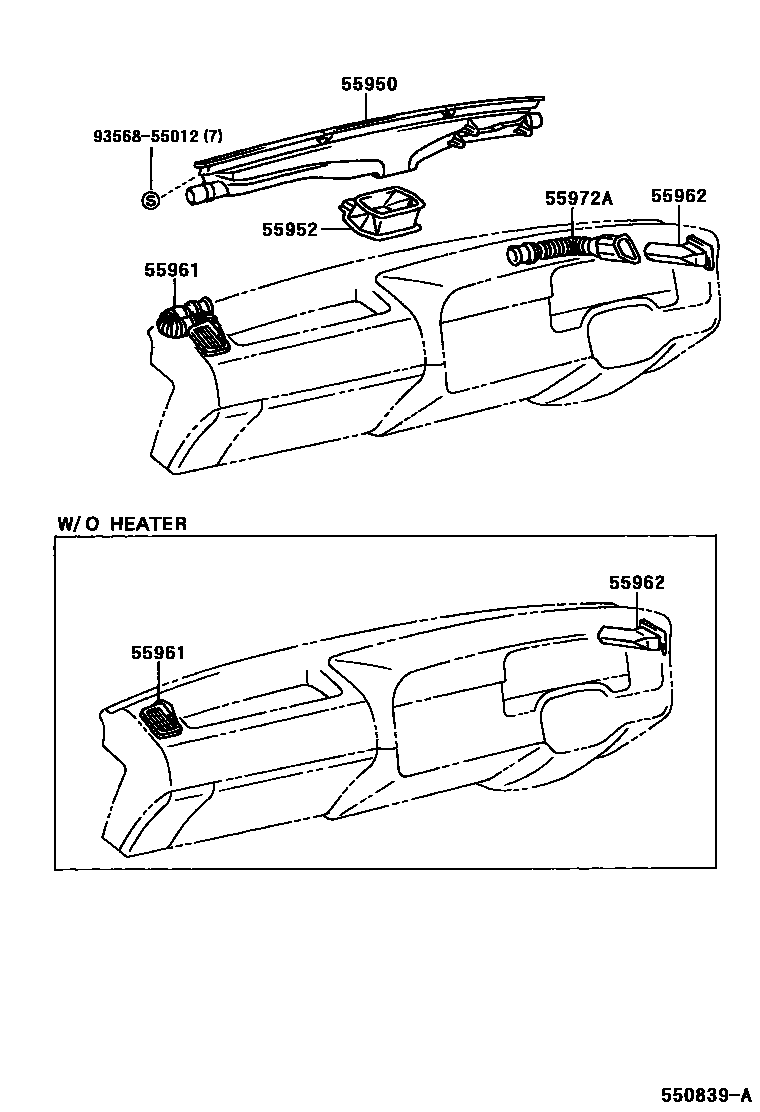

FRONT VENTILATOR

0001 1 0002 1

55950NOZZLE ASSY, DEFROSTER

main55950-95J02iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD198908-200508

main55950-95J03iRZH112..4D..06S198908-200208

55952NOZZLE, DEFROSTER, FRONT LH

main55952-95J00iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

main55952-95J01iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-200208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-95J02-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

GRAY,TRIM1#

sub55961-95J02

main55961-95J02-B0iRZH115..STD..GEN199308-200508

BLUISH GRAY,TRIM1#

sub55961-95J02

main55961-95J03-03iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198909-199308

GRAY,TRIM1#

sub55961-95J03

main55961-95J03-B0iLH102,103,11#,125,RZH102,103,104,11#,125..RHD199308-200208

BLUISH GRAY,TRIM1#

sub55961-95J03

main55970-95J02-03iRZH102,112..LHD..06S;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH104..LHD;RZH102,112,114..LHD..(03S,15S)..4F198908-199308

W(FRONT HEATER),GRAY,TRIM1#

sub55970-95J02

main55970-95J02-B0iLH102,104,105,11#,166,174,176,RZH10#,11#..LHD199308-200508

W(FRONT HEATER),BLUISH GRAY,TRIM1#

sub55970-95J02

main55970-95J02-B0iLH174,RZH102,115..(10S,15S)..GL;LH154,RZH103,105,155..LHD..(09S,11S,12S);LH105,113,115,164,166,17#,RZH113,115..CIS,GCC199907-200501

BLUISH GRAY,TRIM1#

sub55970-95J02

main55970-95J02-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55970-95J02

main55970-95J03-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

W(FRONT HEATER),GRAY,TRIM1#

sub55970-95J03

main55970-95J03-B0iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-200208

W(FRONT HEATER),BLUISH GRAY,TRIM1#

sub55970-95J03

main55970-95J03-E0iRZH153199907-200501

W(FRONT HEATER),ANTELOPE,TRIM4#

sub55970-95J03

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-95J02-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

GRAY,TRIM1#

sub55962-95J02

sub55980-95J02

main55962-95J02-B0iRZH114..LHD..15S;RZH104,115..LHD..GEN..CBR;LH102,104,112,114,115,172,174,RZH102,112,113..LHD..STD..GEN199308-200508

BLUISH GRAY,TRIM1#

sub55962-95J02

sub55980-95J02

main55962-95J03-03iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

GRAY,TRIM1#

sub55962-95J03

sub55980-95J03

main55962-95J03-B0iLH172,RZH113..RHD..SRF..4D..STD..GEN;LH103,11#,RZH102,103,104,112,114..RHD..GEN199308-200208

BLUISH GRAY,TRIM1#

sub55962-95J03

sub55980-95J03

main55980-95J02-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

W(FRONT HEATER),GRAY,TRIM1#

sub55980-95J02

main55980-95J02-B0iRZH115..GL;LH174,RZH102,114..SRF..GL;LH105,113,115,166,176,RZH105,115..CIS199808-200408

BLUISH GRAY,TRIM1#

sub55980-95J02

main55980-95J02-B0iRZH114..LHD..15S;RZH115..LHD..STD..CBR;LH105,115,RZH113..LHD..(GCC,GEN);LH102,104,112,113,114,RZH10#,112..LHD..SRF..(03S,06S,09S,12S,15S)..(CBR,DSL)199308-200508

W(FRONT HEATER),BLUISH GRAY,TRIM1#

sub55980-95J02

main55980-95J02-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55980-95J02

main55980-95J03-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

W(FRONT HEATER),GRAY,TRIM1#

sub55980-95J03

main55980-95J03-B0iRZH112..4D..06S199308-200208

W(FRONT HEATER),BLUISH GRAY,TRIM1#

sub55980-95J03

main55980-95J04-B0iRZH135199611-200501

BLUISH GRAY,TRIM1#

sub55980-95J04

main55980-95J04-E0iRZH153199907-200501

ANTELOPE,TRIM4#

sub55980-95J04

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-95J01iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-200501

9356855012

main93568-55012

6 parts on this diagram · 2 diagrams in section
