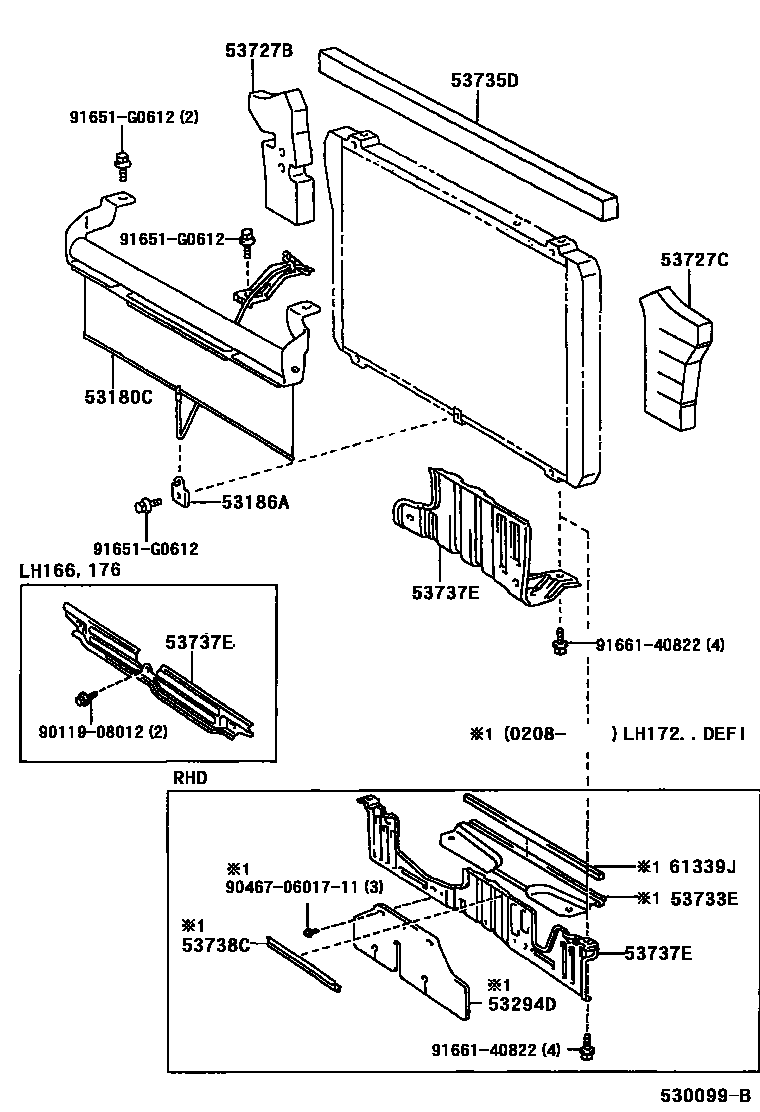

RADIATOR SUPPORT & WIND GUIDE

53180CSHUTTER ASSY, RADIATOR

main53180-26040iLH105,113,115,166,176,RZH105,115..CIS199808-200408

main53180-95J00iLH104,114,RZH104,114..LHD..SRF199010-199308

*EX-USSR SPEC

main53180-95J00iLH104,112,114,RZH104,112,114..CIS199308-199808

53186AHOOK, RADIATOR SHUTTER

main53186-95J00iLH104,114,RZH104,114..LHD..SRF199010-199308

*EX-USSR SPEC

main53186-95J00iLH104,105,11#,166,176,RZH104,105,112,114,115..CIS199308-200408

53294DDEFLECTOR, RADIATOR LOWER AIR, NO.1

main53294-26010iLH172..DEFI200208-200501

53727BSHUTTER, HOT AIR SIDE, RH

main53727-95J04iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-200602

53727CSHUTTER, HOT AIR SIDE, LH

main53728-95J02iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-200602

53733ESHUTTER, HOT AIR

main53733-26020iLH172..DEFI200208-200501

53735DSHUTTER, HOT AIR, UPPER

main53735-95J02iLH10#,11#,125,RZH10#,11#,125198908-199308

main53735-95J03iLH125..ARL;LH10#,11#,RZH10#,11#,125199308-200208

main53735-95J03iLH104,114,RZH104,114..LHD..SRF199010-199308

*EX-USSR SPEC

53737ESHUTTER, HOT AIR, LOWER

main53737-26070iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD199408-200208

main53737-26080iLH102,104,105,11#,154,164,172,174,RZH10#,11#,155..LHD199408-200508

main53737-95J02iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-199408

main53737-95J03iLH102,104,105,11#,RZH102,104,105,11#..LHD198908-199408

main53737-95J04iLH166,176199808-200408

53738CSHUTTER, HOT AIR, LOWER LH

main53738-95J00iLH172..DEFI200208-200501

61339JSEAL, CENTER BODY PILLAR, INNER

main61339-26030iLH172..DEFI200208-200501

sub61339-95J01

9011908012

main90119-08012

904670601711

main90467-0601711

91651G0612

main91651-G0612

9166140822

main91661-40822

14 parts on this diagram · 1 diagram in section
