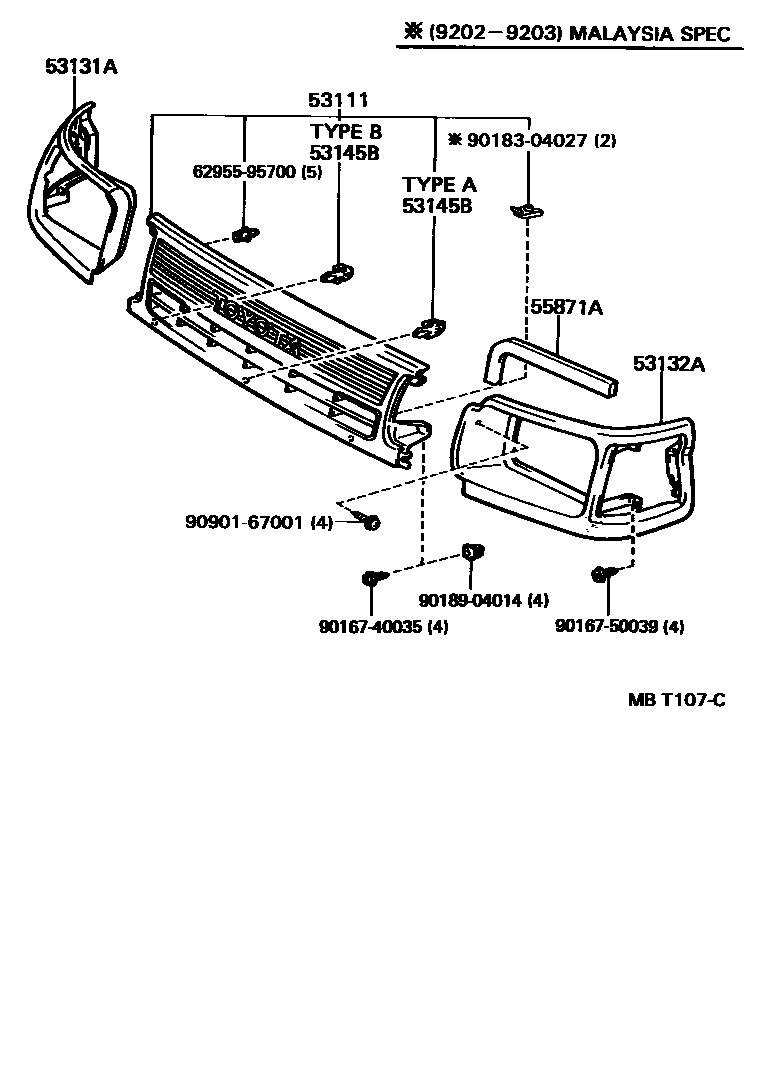

RADIATOR GRILLE

0001 1 0002 1EXCELLENT PACKAGE 0003 1 0005 1 0006 1 0010 1

53111GRILLE, RADIATOR

main53100-26010iLH113,RZH112..4D..06S199202-199308

MALAYSIA SPEC

sub53100-26011

main53100-26011iLH112,RZH112..4D..06S..(CBR,DSL)199308-199808

MALAYSIA SPEC

main53100-26030-B1iLH125..GEN199508-199608

COOL SILVER,TRIM1#&045 ,2AY ,3H7 ,6L1 ,8E2 ,8G8

sub53100-26030

main53100-26040iLH112..GL199308-199608

sub53100-26030

main53100-26070iLH10#,11#,125,RZH10#,11#,125..DX,STD199308-199808

main53100-26090iRZH115..LHD..GEN199802-199808

CHINA SPEC

main53100-26090iRZH114..LHD..SRF..STD..GEN199308-199802

CHINA SPEC(FOR CKD,SKD)

main53100-26100iLH113,115,172,174,RZH105,113,115..GCC199608-200501

CHROME PLATED

main53100-26110iRZH103..03S..GEN199608-200208

main53100-26120iRZH115..15S..GL199808-199907

sub53100-26100

main53100-26120iRZH114..HRF..GL199710-199907

CKD CHINA SPEC

sub53100-26100

main53100-26150iRZH115..STD..GEN..EFI199907-200501

CHINA SPEC & W(HALOGEN HEADLAMP)

main53100-26150iRZH115..STD..GEN199808-199907

CHINA SPEC

main53100-26180iRZH114..15S..GL;LH172,184,RZH104,105..GL199907-200501

sub53100-26900

sub75311-26010

main53100-26190iRZH115..10S,12S;LH154,172,174,184,RZH10#,114,135,15#..GL199907-200508

CHROME PLATED

sub53100-26200

sub75311-26010

main53100-26200iRZH115..15S..GL199907-200501

CHINA SPEC

main53100-95J21iRZH103..GL198908-199108

sub53100-26080

main53100-95J22iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

sub53100-26070

main53100-95J26iLH112..RHD..SRF..03S198908-199308

EXCELLENT PACKAGE

main53100-95J28iRZH114..LHD..SRF..5F198908-199308

CHINA SPEC

sub53100-26090

53131ADOOR, HEADLAMP, RH

main53131-26010iLH113..GEN;RZH112..RHD..03S199202-199308

MALAYSIA SPEC

main53131-26011iLH112..RHD;RZH112..4D..06S..CBR199308-199808

MALAYSIA SPEC

sub53131-26020

main53131-26020iLH10#,11#,125,RZH10#,11#,125..DX,STD199308-199808

main53131-95J09iRZH103..GL198908-199108

main53131-95J10iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

sub53131-26020

53132ADOOR, HEADLAMP, LH

main53132-26010iLH113,RZH112..4D..06S199202-199308

MALAYSIA SPEC

main53132-26011iLH112,RZH112..4D..06S..(CBR,DSL)199308-199808

MALAYSIA SPEC

main53132-26020iLH10#,11#,125,RZH10#,11#,125..DX,STD199308-199808

main53132-95J09iRZH103..GL198908-199108

main53132-95J10iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

sub53132-26020

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-26010iLH112;LH10#,113,114,115,125,RZH10#,11#,125..DX,SGL,STD199402-199808

main53145-95J01iLH112..RHD..SRF..03S198908-199308

EXCELLENT PACKAGE

sub53145-26010

main53145-95J01iLH10#,11#,125,RZH10#,11#,125198908-199308

TYPE A:REFER TO ILLUSTRATION

sub53145-26010

main53145-95J01iLH10#,11#,125,RZH10#,11#,125199308-199402

sub53145-26010

main53145-95J02iLH10#,11#,125,RZH10#,11#,125198908-199308

TYPE B:REFER TO ILLUSTRATION

55871ASEAL, AIR DUCT, NO.1

main55871-95J04iLH10#,11#,125,RZH10#,11#,125198908-199308

6295595700SEAL, ROOF SIDE VENT

main62955-95700

9016740035

main90167-40035

9016750039

main90167-50039

9018304027

main90183-04027

9018904014

main90189-04014

9090167001

main90901-67001

11 parts on this diagram · 6 diagrams in section
