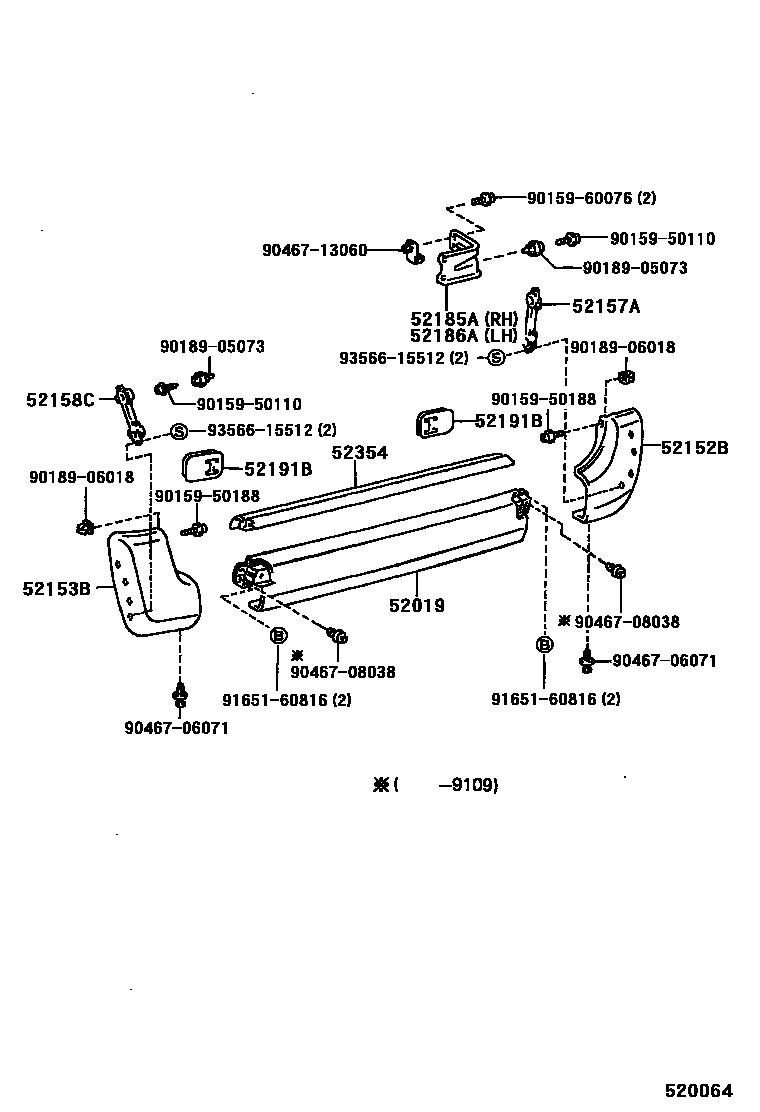

REAR BUMPER & BUMPER STAY

0001 1 0002 1W(STEP) 0003 1EXCELLENT PACKAGE 0004 1 0005 1EXCEPT CIS(SEVERE USAGE PACKA0006 1W(STEP)

52019BAR SUB-ASSY, REAR BUMPER

main52019-95J31iRZH113..LHD..EFI¥29,600198908-200501

52152BEXTENSION, REAR BUMPER, RH

main52165-95J01iLH10#,11#,125,RZH10#,11#,125..STD¥5,600198908-199608

main52165-95J02iLH113,RZH113..03S¥4,400199001-200501

W(DOUBLE SWING BACK DOOR)

52153BEXTENSION, REAR BUMPER, LH

main52166-95J01iRZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)¥5,600198908-199608

main52166-95J02iLH113,RZH113..03S¥4,400199001-200501

W(DOUBLE SWING BACK DOOR)

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-95J00iRZH103..03S..GEN¥660198908-200208

main52157-95J01iRZH113..LHD..EFI¥310199001-200501

W(DOUBLE SWING BACK DOOR)

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-95J00iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#¥660198908-200208

main52158-95J01iRZH113..LHD..EFI¥310199001-200501

W(DOUBLE SWING BACK DOOR)

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-95J02iRZH113..LHD..03S..GEN¥740199001-200501

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-95J02iLH113,RZH113..03S¥740199001-200501

52191BGROMMET, REAR BUMPER STAY

main52191-95J00iLH162..4FC;RZH112..4D..06S¥300198908-200501

52354SHUTTER, REAR CROSS TO BUMPER

main52353-26010iRZH103..GL;LH112..RHD..SRF..03S¥600199011-199012

RH

sub52353-26020¥580

main52353-26020iRZH103..03S..GEN¥580199012-200201

RH

main52354-26010iRZH103..GL;LH112..RHD..SRF..03S¥600199011-199012

LH

sub52354-26020¥580

main52354-26020iRZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#¥580199012-200201

LH

sub52354-26021¥580

main52354-26021iRZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#¥580200201-200208

main52354-95J02iLH102,103,112,113,RZH102,103,112,113¥400198908-199010

W(STEP TYPE REAR BUMPER)

main52354-95J03iLH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)¥2,560199308-199608

main52354-95J03iRZH113..LHD..EFI¥2,560198908-200501

W(DOUBLE SWING BACK DOOR)

main52354-95J04iRZH103..GL;LH112..RHD..SRF..03S¥3,920198908-199011

9015950110

main90159-50110¥160

9015950188

main90159-50188¥120

9015960076

main90159-60076¥220

9018905073

main90189-05073¥130

9018906018

main90189-06018¥80

9046706071

main90467-06071¥200

9046708038

main90467-08038¥120

9046713060

main90467-13060¥180

9165160816

main91651-60816¥100

9356615512

main93566-15512¥120

19 parts on this diagram · 6 diagrams in section
