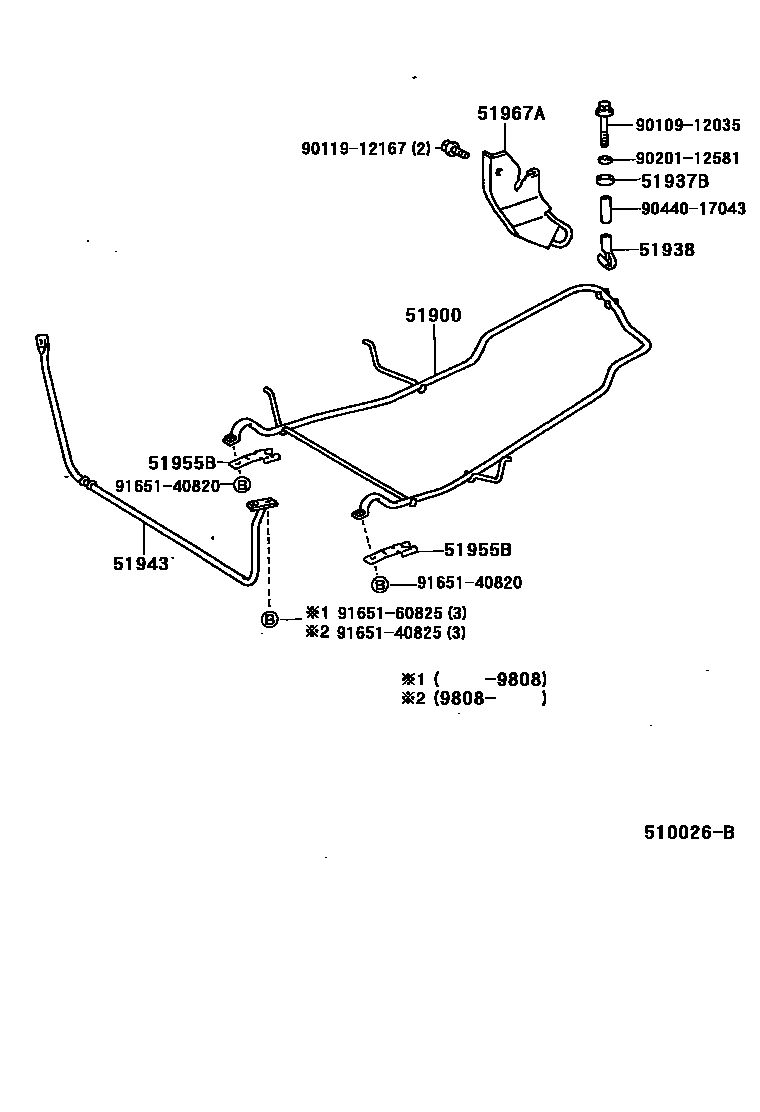

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-26340iLH162..03S..GEN;LH172..4D..06S..STD..DSL198908-200508

W(6.00-14-8 TIRE)

main51903-26350iLH104,105,114,115,RZH104,114198908-199308

main51903-26360iRZH103..03S..GEN199308-200208

main51903-26360iLH10#,11#,RZH10#,11#..GEN198908-199308

W(185R14-6,8 TIRE)

main51903-26380iLH103,113,125,RZH103,113,125..ARL198908-200501

W(195/70R15 TIRE)

main51903-26410iLH166,176199808-200408

main51903-26420iLH172..RHD..SRF..4D..03S..GEN;LH184,RZH113,135,153..RHD..4D..(03S,12S,15S)..GEN200108-200501

W(205/70R15 TIRE)

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iRZH112..4D..06S198908-200208

51938LOCK, SPARE WHEEL CARRIER

main51938-26040iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..199302-200208

main51938-28030iLH10#,11#,125,RZH10#,11#,125198908-199302

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51904-26020iRZH135,153199611-200501

main51943-26120iRZH103..03S..GEN198908-200208

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26040iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200208

51967AHOOK SUB-ASSY, REAR

main51095-95J00iRZH135,153199611-200501

9010912035

main90109-12035

9011912167

main90119-12167

9020112581

main90201-12581

9044017043

main90440-17043

9165140820

main91651-40820

9165140825

main91651-40825

9165160825

main91651-60825

13 parts on this diagram · 1 diagram in section
