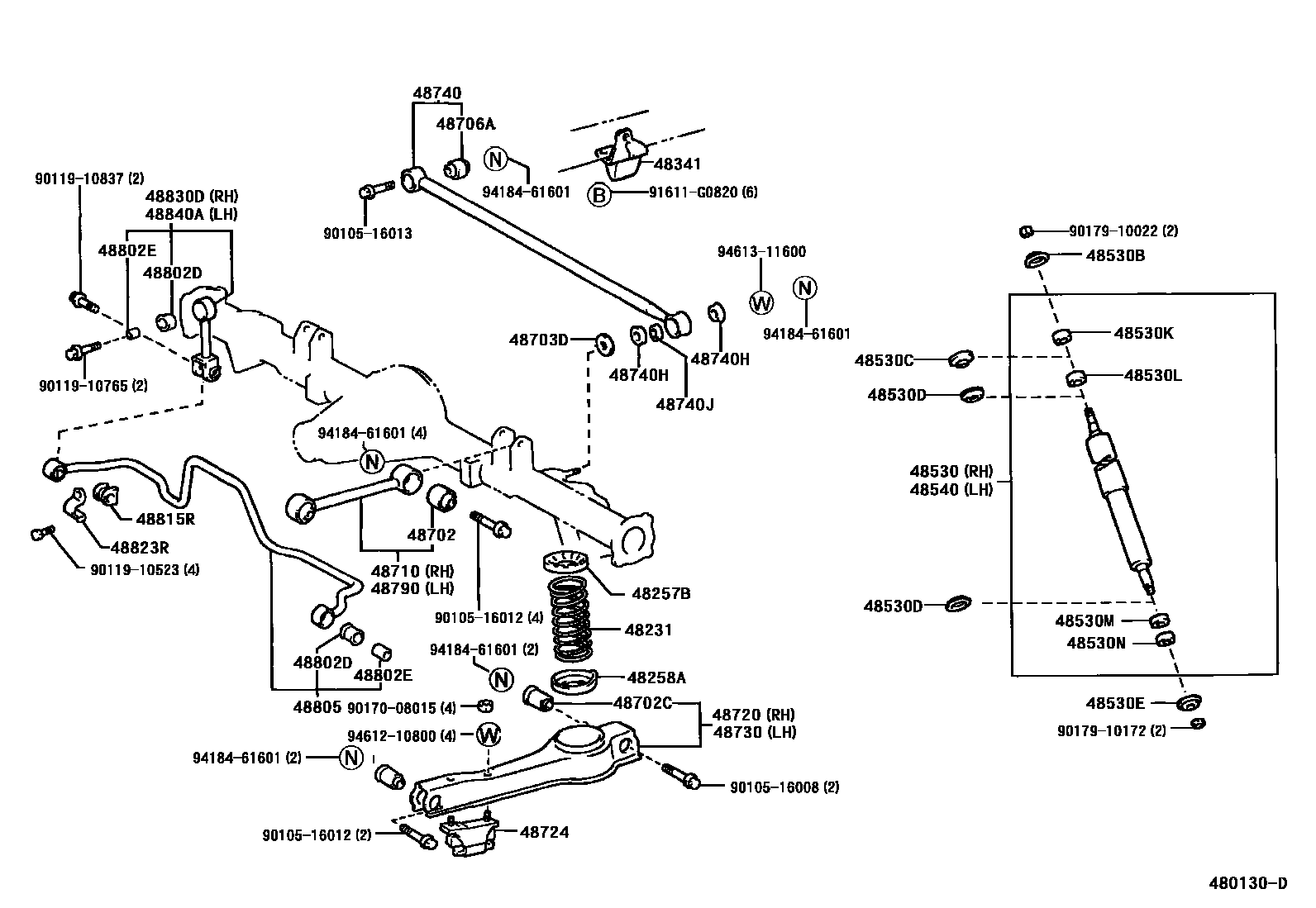

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 15-LEAF(TYPE A) 0008 15-LEAF(TYPE B) 0009 14-LEAF(TYPE A)

48231SPRING, COIL, REAR

main48231-26150iRZH155..CIS199611-200501

main48231-26160iRZH135199611-200501

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-26030iRZH135,153199611-200501

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-26010iLH154,RZH135,15#..GEN199611-200501

48341BUMPER, REAR SPRING

main48341-26110iLH154,RZH135,15#199611-200501

main48341-26140iLH103,113,125,RZH103,113,125..ARL198908-200208

main48341-26150iRZH103..03S..GEN198908-200208

main48341-26170iLH166,176199808-200408

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80398iLH103,113,125,RZH103,113,125..ARL198908-199607

sub48531-80544

main48531-80399iRZH113..LHD;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN198908-199607

sub48531-80545

main48531-80432iLH103,113,RZH103,113..06S..GEN199308-199607

NEW ZEALAND SPEC

sub48531-80545

main48531-80544iLH103,113,125,RZH103,113,125..ARL199607-200501

MARK 48531-26360

main48531-80545iLH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10199607-200510

MARK 48531-26370

main48531-80547iLH166,176199808-200408

MARK 48531-26390

main48531-80572iRZH135199611-199808

main48531-80574iRZH153199611-199806

sub48531-80667

main48531-80667iRZH135,153199806-200501

MARK 48531-26481

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02125iRZH135,153199611-199704

sub90948-02169

main90948-02169iRZH135,153199704-200501

main90948-03012iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02077iRZH135,153199611-200501

main90948-03004iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90560-12054iLH103,RZH102,103,113..RHD..06S..GEN199102-200501

NEW ZEALAND SPEC

main90948-02076iLH154,RZH135,15#199611-200501

UPPER

main90948-02165iRZH135,153199611-200501

LOWER

main90948-03015iLH10#,11#,125,RZH10#,11#,125198908-200208

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-02125iRZH135,153199611-199704

sub90948-02169

main90948-02169iRZH135,153199704-200501

main90948-03011iRZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125198908-200208

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01040iRZH135,153199611-200501

48530LCUSHION, REAR SHOCK ABSORBER, NO.3

main90948-01046iRZH135,153199611-200501

48530MCUSHION, REAR SHOCK ABSORBER, NO.4

main90948-01059iRZH135,153199611-200501

48530NCUSHION, REAR SHOCK ABSORBER, NO.5

main90948-01060iRZH135,153199611-200501

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80398iLH103,113,125,RZH103,113,125..ARL198908-199607

sub48531-80544

main48531-80399iLH10#,11#,RZH10#,11#..GEN198908-199607

sub48531-80545

main48531-80432iLH103,113,RZH103,113..06S..GEN199308-199607

NEW ZEALAND SPEC

sub48531-80545

main48531-80544iLH103,113,125,RZH103,113,125..ARL199607-200501

MARK 48531-26360

main48531-80545iRZH112..5D;RZH112..03S;LH10#,11#,162,164,172,174,184,RZH10#,113,114,115..CIS,GCC,GEN199607-200510

MARK 48531-26370

main48531-80547iLH166,176199808-200408

MARK 48531-26390

main48531-80572iRZH135199611-199808

main48531-80574iRZH153199611-199806

sub48531-80667

main48531-80667iRZH135,153199806-200501

MARK 48531-26481

48702BUSH SUB-ASSY, UPPER CONTROL ARM

main48702-28080iRZH135,153199611-200501

48702CBUSH SUB-ASSY, LOWER CONTROL ARM

main48702-26041iRZH135,153199611-200501

FRONT

main48702-26051iLH154,RZH135,15#..GEN199611-200501

REAR

48703DWASHER(FOR REAR SUSPENSION ARM)

main90209-21001iRZH135,153199611-200501

48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD

main48706-26020iRZH155..CIS199611-200501

main48706-30020iRZH135199611-200501

48710ARM ASSY, UPPER CONTROL

main48770-26020iLH154,RZH15#..GEN199611-200501

main48770-26030iRZH135199611-200501

48720ARM ASSY, LOWER CONTROL, RH

main48720-26061iLH154,RZH135,15#..GEN199611-200501

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-26010iRZH155..CIS199611-200501

48730ARM ASSY, LOWER CONTROL, LH

main48720-26061iRZH135,153199611-200501

48740ROD ASSY, REAR LATERAL CONTROL

main48740-26040iRZH155..CIS199611-200501

main48740-26050iRZH135199611-200501

48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)

main90385-20005iRZH155..CIS199611-200501

48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)

main90386-20001iRZH135,153199611-200501

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-26020iRZH155..CIS199611-200501

main48790-26030iRZH135199611-200501

48802DBUSH, STABILIZER LINK

main90385-13008iRZH135,153199611-200501

48802ESPACER(FOR REAR STABILIZER BAR)

main90387-10161iLH154,RZH135,15#..GEN199612-200501

main90387-10161iRZH135,153199808-200203

NO.2

main90560-10044iLH154,RZH135,15#199808-200203

NO.1

main90560-10044iRZH135,153199611-199612

48805BAR SUB-ASSY, REAR STABILIZER

main48805-26140iRZH153199611-200203

sub48805-26141

main48805-26141iRZH155..CIS200203-200501

main48805-26150iRZH135199611-199808

main48805-26190iRZH135199808-200203

sub48805-26191

main48805-26191iRZH135200203-200501

48815RBUSH, STABILIZER(FOR REAR)

main48815-26140iRZH153199611-200501

main48815-26160iRZH135199611-200501

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-26130iLH154,RZH135,15#..GEN199611-200501

48830DLINK ASSY, REAR STABILIZER, RH

main48830-26010iRZH135,153199611-200203

sub48830-26011

main48830-26011iLH154,RZH135,15#..GEN200203-200501

48840ALINK ASSY, REAR STABILIZER, LH

main48830-26010iLH154,RZH135,15#199611-200203

sub48830-26011

main48830-26011iRZH155..CIS200203-200501

9010516008

main90105-16008

9010516012

main90105-16012

9010516013

main90105-16013

9011910523

main90119-10523

9011910765

main90119-10765

9011910837

main90119-10837

9017008015

main90170-08015

9017910022

main90179-10022

9017910172

main90179-10172

91611G0820

main91611-G0820

9418461601

main94184-61601

9461210800

main94612-10800

9461311600

main94613-11600

46 parts on this diagram · 6 diagrams in section
