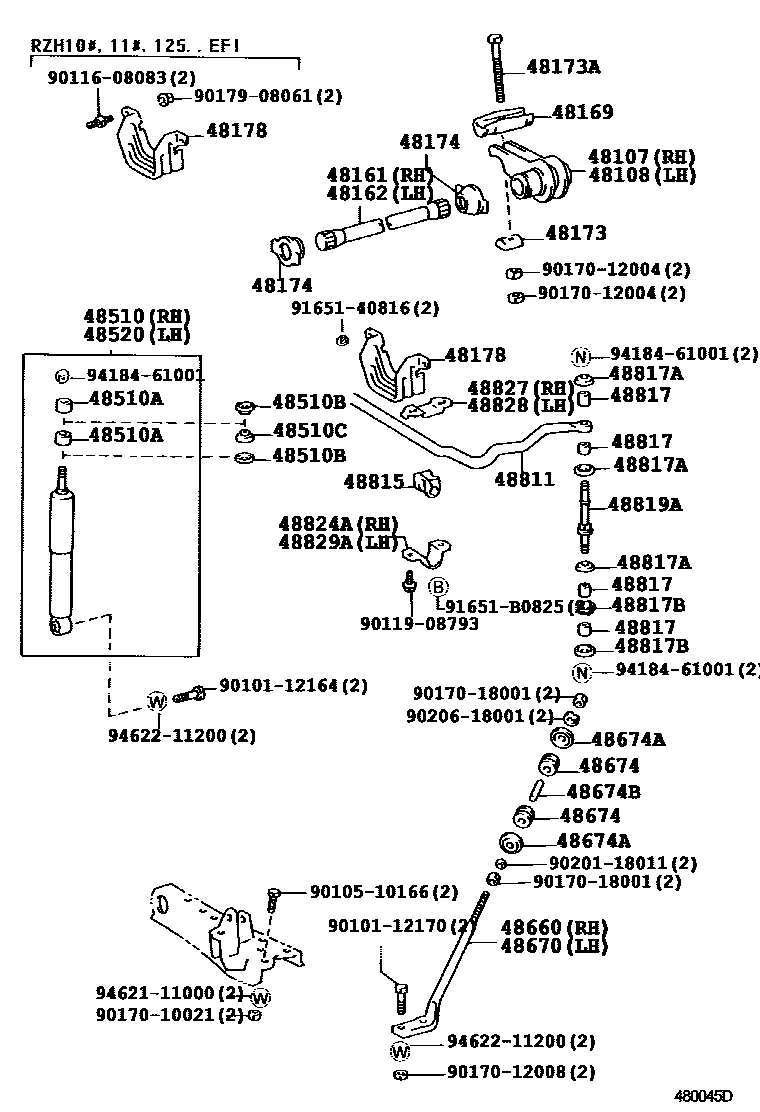

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-26050iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

48108ARM SUB-ASSY, ANCHOR, LH

main48108-26050iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48161SPRING, TORSION BAR, RH

main48161-26200iRZH112..5D;RZH112..03S;LH102,104,105,112,114,164,RZH10#,113..03S,06S,08S,09S,10S,12S198908-200208

main48161-26210iLH112..HRF;LH103,113,114,115,125,RZH114,125198908-199308

main48161-26211iLH174..GL;LH172..RHD;LH112..HRF;RZH115..STD..CIS;LH113,114,115,RZH114,115..CBR,DSL;LH103,105,125,184,RZH125,135,153..ARL,GCC,GEN199308-200008

main48161-26290iLH166,176199808-200408

48162SPRING, TORSION BAR, LH

main48162-26200iRZH112..5D;RZH112..03S;LH102,104,105,112,114,164,RZH10#,113..03S,06S,08S,09S,10S,12S198908-200208

main48162-26210iLH112..HRF;RZH114..4F,4FC;LH103,105,113,114,115,125,RZH125198908-199308

main48162-26211iLH174..GL;LH172..RHD;LH112..HRF;RZH115..STD..CIS;LH113,114,115,RZH114,115..CBR,DSL;LH103,105,125,184,RZH125,135,153..ARL,GCC,GEN199308-200008

main48162-26290iLH166,176199808-200408

48169SWIVEL, ANCHOR ARM

main48169-26030iLH166,176199808-200408

main48169-26050iRZH112..4D..06S198908-200208

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12091iLH174..LHD..GEN199808-200501

RH

main90101-12091iLH10#,11#,125,172,174,184,RZH10#,11#,125,135,153198908-199907

main90101-12165iRZH103,113,125..5F..ARL199808-200501

LH

main90101-12165iRZH103,113,125..5F..ARL199907-200602

48174COVER, TORSION BAR DUST

main48174-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-26030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29525iLH10#,11#,125,RZH10#,11#,125198908-199205

MARK 48511-26240

sub48511-29526

main48511-29526iLH10#,11#,125,RZH10#,11#,125199205-199607

MARK 48511-26241

sub48511-29527

main48511-29527iLH10#,11#,125,RZH10#,11#,125199607-199808

MARK 48511-26241

main48511-29597iLH166,176199808-200408

MARK 48511-26201

main48511-29676iRZH135,153199611-199808

MARK 48511-26282

main48511-80055iRZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,RZH103,104,114,125..03S,06199808-200510

MARK 48511-26241

main48511-80056iRZH135,153199808-200501

MARK 48511-26282

sub48511-80057

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iLH10#,11#,125,RZH10#,11#,125198908-199308

main90948-01031iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199308-200208

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iRZH112..4D..06S199308-200208

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29525iLH10#,11#,125,RZH10#,11#,125198908-199205

MARK 48511-26240

sub48511-29526

main48511-29526iLH10#,11#,125,RZH10#,11#,125199205-199607

MARK 48511-26241

sub48511-29527

main48511-29527iLH10#,11#,125,RZH10#,11#,125199607-199808

MARK 48511-26241

main48511-29597iLH166,176199808-200408

MARK 48511-26201

main48511-29676iRZH135,153199611-199808

MARK 48511-26282

main48511-80055iRZH112..5D;RZH112..03S;RZH113..4FC;RZH113..GCC,GEN;LH10#,11#,125,154,162,164,172,174,184,RZH10#,114,115,125,155199808-200510

MARK 48511-26241

main48511-80056iRZH135,153199808-200501

MARK 48511-26282

sub48511-80057

48660BAR ASSY, STRUT, RH

main48661-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48670BAR ASSY, STRUT, LH

main48661-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48674CUSHION, STRUT BAR

main48674-26010iRZH112..5D;RZH112..03S;LH10#,11#,125,162,164,172,174,184,RZH10#,113,114,115,125198908-200208

main48674-26021iLH154,RZH135,15#199611-200501

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02062iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18005iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48811BAR, STABILIZER, FRONT

main48811-26150iRZH112..4D..06S198908-200208

main48811-26160iLH154,RZH135,15#199611-200501

main48811-26181iLH166,176199808-200408

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26050iLH166,176199808-200408

main48815-26060iLH10#,11#,125,RZH10#,11#,125198908-199612

main48815-26220iRZH135,153199611-199612

sub48815-26221

main48815-26221iRZH135,153199612-200501

main48815-26300iRZH112..4D..06S199612-200208

48817CUSHION, FRONT STABILIZER

main90948-01002iRZH112..4D..06S198908-200408

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iRZH112..4D..06S198908-200208

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iRZH112..4D..06S198908-200408

48819ABOLT, FRONT STABILIZER

main48819-26040iLH166,176199808-200408

main48819-26050iRZH112..5D;RZH112..03S;LH10#,11#,125,162,164,172,174,184,RZH10#,113,114,115,125198908-200208

48824BRACKET, STABILIZER, FRONT

main48824-26090iLH166,176199808-200408

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26110iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48828-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-26080iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

9010112164

main90101-12164

9010112170

main90101-12170

9010510166

main90105-10166

9011608083

main90116-08083

9011908793

main90119-08793

9017010021

main90170-10021

9017012004

main90170-12004

9017012008

main90170-12008

9017018001

main90170-18001

9017908061

main90179-08061

9020118011

main90201-18011

9020618001

main90206-18001

9165140816

main91651-40816

91651B0825

main91651-B0825

9418461001

main94184-61001

9462111000

main94621-11000

9462211200

main94622-11200

47 parts on this diagram · 3 diagrams in section
