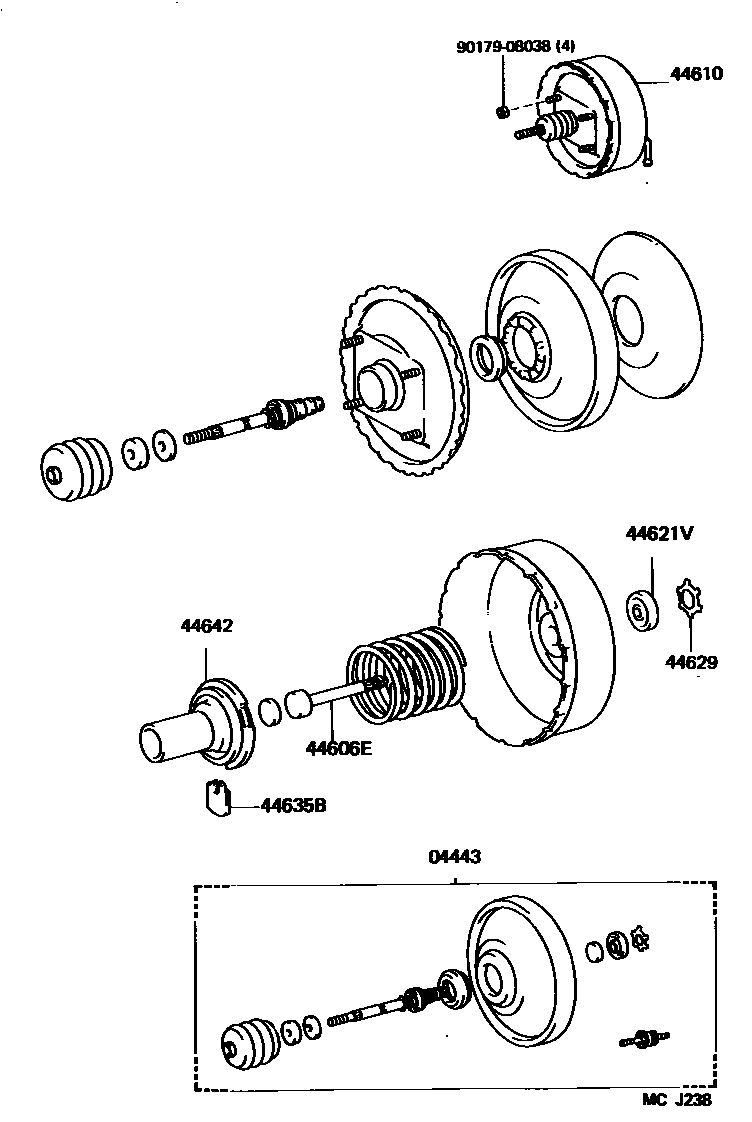

BRAKE BOOSTER & VACUUM TUBE

0001 1AISIN 0002 1JKC 0003 1AISIN 0004 1JKC 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

04443BOOSTER KIT, BRAKE

main04443-26420iRZH104,114..LHD..SRF199008-199308

JKC

main04443-26440iLH104,114..LHD199008-199308

JKC

main04443-26450iRZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main04443-26470iLH10#..4D;LH112,114..LHD198908-199308

main04443-26480iRZH102,104..4F;RZH112,114..LHD;RZH102,104..LHD..5F;RZH112,114..RHD..(4F,4FC)198908-199308

main04443-26490iLH10#,11#..GEN198908-199308

AISIN

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iRZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main44606-26440iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,112,114198908-199308

44610BOOSTER ASSY, BRAKE

main44610-26410iRZH104,114..LHD..SRF199008-199308

JKC

sub44610-26430

main44610-26420iLH104,114..LHD199008-199308

JKC

sub44610-26440

main44610-26430iRZH103..GL,SGL,STD;RZH102,104,105,11#,125198908-199808

W(FRONT DISC BRAKE)

sub44610-26431

main44610-26430iRZH103..DX199703-199808

sub44610-26431

main44610-26431iRZH115..CBR;RZH105,115..STD..CIS;RZH10#,112,113..SRF..CBR;RZH113..4D..STD..(ARL,GEN);RZH103,114,125..03S,06S,12S,14S,15S199808-200208

main44610-26440iLH125..HRF..GEN199707-199808

sub44610-26441

main44610-26440iLH10#,11#;LH125..STD;LH125..SMRF198908-199808

W(FRONT DISC BRAKE)

sub44610-26441

main44610-26441iLH103,11#,125,162,172,174,184..RHD199808-200008

main44610-26450iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

main44610-26470iRZH135,153199611-199808

sub44610-26471

main44610-26471iRZH135,153199808-200501

main44610-26471iLH172..5F..ARL;LH162,184,RZH103,113,125..ARL200108-200501

W(ABS)

main44610-26550iLH102,104,105,11#,166,174,176..LHD199808-200501

main44610-26620iRZH155..GEN;LH113,115,172,174,RZH105,113,115..GCC199808-200501

W(ABS)

44621VSEAL, BOOSTER BODY

main44621-14030iRZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main44621-28120iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,112,114198908-199308

44629RING, CIRCULAR INTERNAL

main44628-28120iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,112,114198908-199308

main44628-60010iRZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

44635BKEY, VALVE STOPPER

main44635-20800iRZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main44635-26440iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,112,114198908-199308

44642PISTON, BRAKE BOOSTER

main44642-20800iRZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main44642-26440iLH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main44642-26450iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

9017908038

main90179-08038

8 parts on this diagram · 14 diagrams in section
