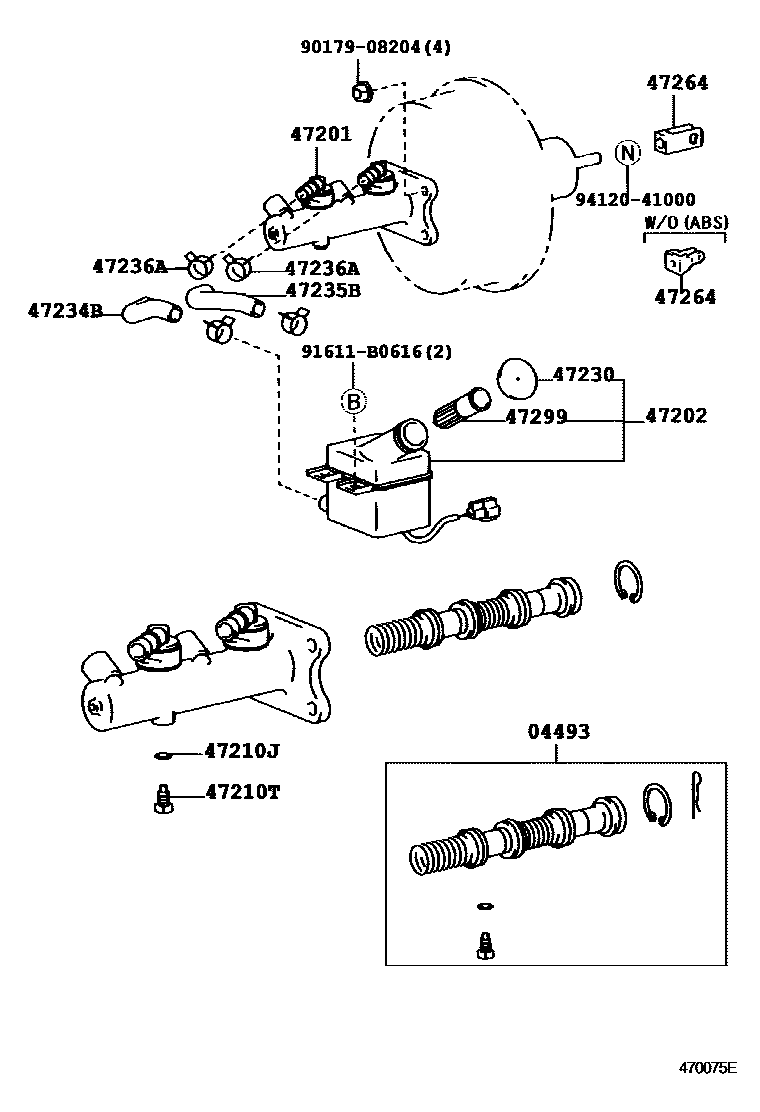

BRAKE MASTER CYLINDER

0001 1 0002 1W(FRONT DISC BRAKE)

04493CYLINDER KIT, BRAKE MASTER

main04493-25070iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199601-200510

main04493-26140iLH10#,11#,125,RZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main04493-26170iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

main04493-26190iLH113,115,RZH105,113,115..GCC199808-200501

W(ABS)

main04493-28100iLH10#,11#,125,RZH10#,11#,125199308-199601

sub04493-25070

main04493-60240iRZH135,153199611-200501

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-26450iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main47201-26490iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

W(FRONT DISC BRAKE)

main47201-26501iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

main47201-26510iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

main47201-26520iRZH112..4D..06S199308-200208

main47201-26530iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199308-200508

main47201-26540iRZH135,153199611-200501

main47201-26550iLH172..5F..ARL;LH162,184,RZH103,113,125..ARL200108-200501

W(ABS)

main47201-26560iRZH155..GEN;LH113,115,172,174,RZH105,113,115..GCC199808-200501

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26200iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD..5F198908-200208

main47220-26210iLH103,113,125,RZH103,113,114,125..4FC198908-200501

main47220-26220iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLH10#,11#,125,RZH10#,11#,125198908-199308

main90109-06077iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308-200208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

47234BTUBE, RESERVOIR, NO.1

main47234-26210iRZH113..RHD..4D..STD..EFI;RZH103,125,135,153..RHD..EFI199611

main47234-26210iRZH103,113,125..RHD..CBR;RZH102,104,112,114,115..RHD198908-200208

W(FRONT DISC BRAKE)

main47234-26210iLH162,184..ARL;LH172..5F..ARL200108-200501

W(ABS)

main47234-26220iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

main47234-26230iLH102,103,11#,125,172,184..RHD198908-200008

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-26190iRZH112..SG..03S;RZH103,105,113,125,135,153..RHD198908-200208

W(FRONT DISC BRAKE)

main47235-26190iRZH113..RHD..4D..STD..EFI;RZH103,125,135,153..RHD..EFI199611

main47235-26190iLH162,184..ARL;LH172..5F..ARL200108-200501

W(ABS)

main47235-26200iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

main47235-26210iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114..RHD198908-200008

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

sub96134-51500

main96133-41500iRZH112..4D..06S199907-200208

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLH10#,11#,125,RZH10#,11#,125,135,153198908-199808

main47264-22010iRZH135,153;LH113,115,RZH105,113,115..GCC199808-200501

W(ABS)

main47264-28010iRZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S).199808-200208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

9017908204

main90179-08204

91611B0616

main91611-B0616

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
