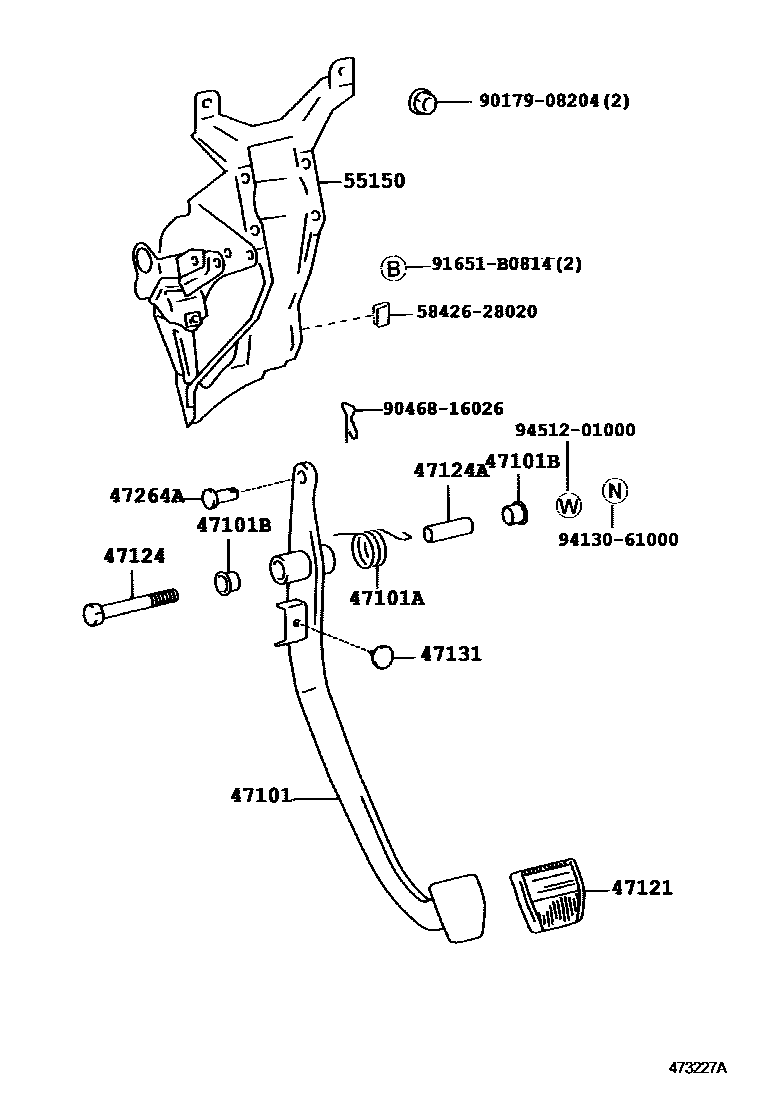

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-26110iLH10#,11#,125,RZH10#,11#,125..RHD198908-199010

main47101-26111iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD199010-200208

main47101-26120iLH102,104,112,114,RZH102,104,112,114..LHD198908-199010

main47101-26121iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199010-200508

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-32035iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iRZH112..4D..06S198908-200208

47121PAD, BRAKE PEDAL

main31321-14020iRZH112..4D..06S198908-200208

47124SHAFT, BRAKE PEDAL

main91112-61070iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308-200208

main91121-51070iLH10#,11#,125,RZH10#,11#,125198908-199308

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLH10#,11#,125,RZH10#,11#,125198908-199008

main90541-06036iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199008-200208

47264APIN(FOR PUSH ROD)

main90240-10015iLH10#,11#,125,RZH10#,11#,125198908-199008

main90240-10037iRZH112..4D..06S199008-200208

55150BRACKET ASSY, PEDAL

main55150-26020iLH103,113,125,RZH103,113,125..4FC199010-200208

main55150-26021iLH162..4FC200208-200501

main55150-26030iLH172,184..(03S,15S)..GL;RZH113..RHD..4D..5F..STD;LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH102,103,104,112,114,115,125,135,153..RHD..(4F,5F)199010-200208

main55150-26031iLH162,RZH103,105..RHD..5F200208-200501

main55150-26040iRZH104..GL;RZH105..CBR;RZH114..15S..GL;RZH115..GEN..CBR199010-200501

main55150-95J05iLH102,104,112,114,RZH102,104,112,114..LHD198908-199010

main55150-95J06iLH103,113,RZH103,113,114..4FC198908-199010

main55150-95J07iLH10#,11#,125,RZH10#,11#,125..RHD..(4F,5F)198908-199010

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020

9017908204

main90179-08204

9046816026

main90468-16026

91651B0814

main91651-B0814

9413061000

main94130-61000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
