FRONT STEERING GEAR & LINK

0001 1 0002 1MANUAL STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1POWER STEERING 0006 1POWER STEERING 0007 1POWER STEERING 0008 1POWER STEERING 0009 1

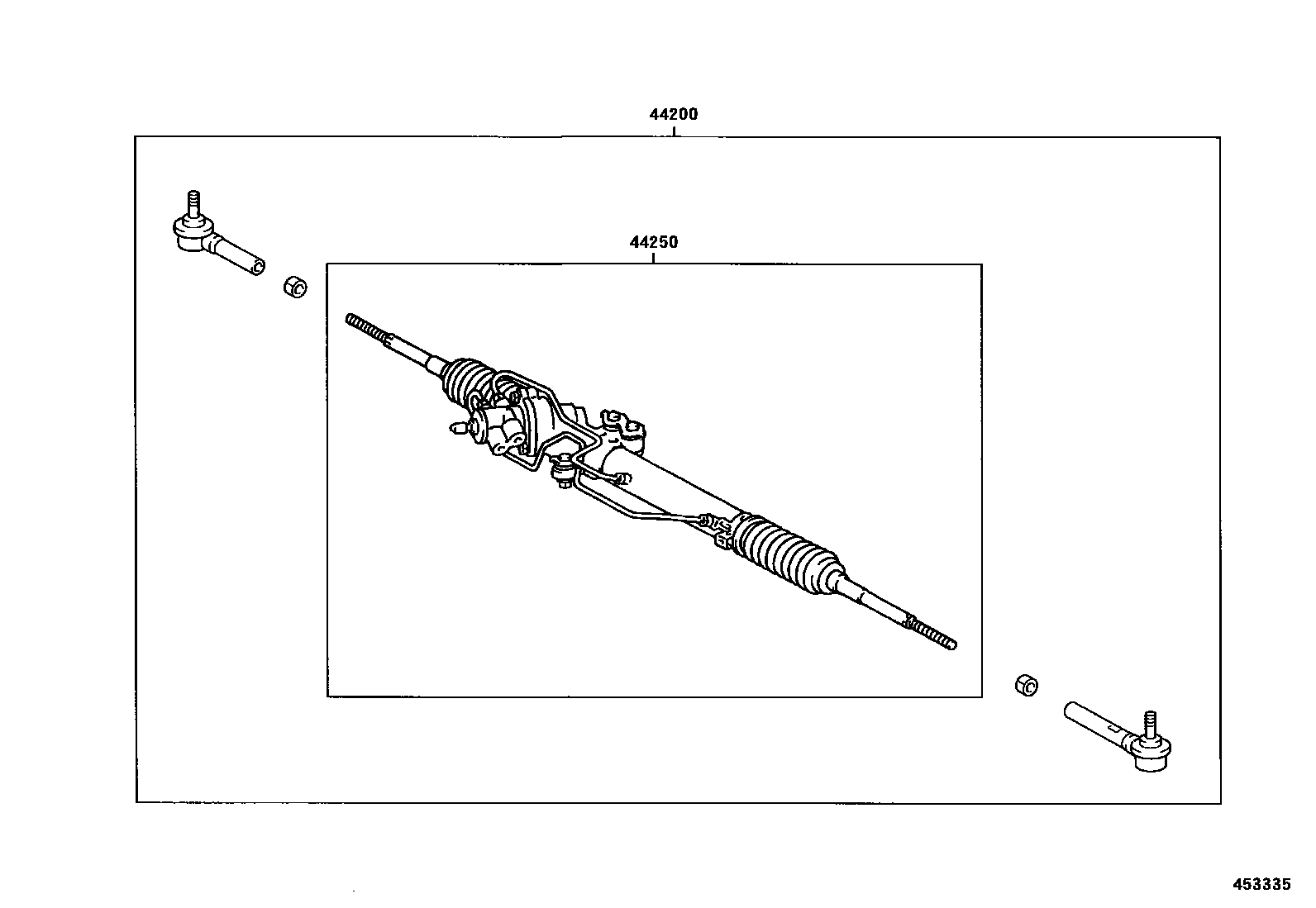

44200LINK ASSY, POWER STEERING

main44200-26113iLH166,176199907-200408

main44200-26281iRZH135,153199907-200501

main44200-26341iLH103..4D..GEN;RZH103..03S..GEN199907-200208

main44200-26351iRZH115..STD..GEN..EFI;RZH113,115..LHD..(06S,12S)..GEN199907

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-26040iLH112..HRF;RZH113..06S..ARL;RZH102..RHD..06S..5F;LH10#,RZH103..RHD..4D..SG;RZH102,104,11#..RHD..(4F,4FC)..GEN198908-199308

W(FRONT DISC BRAKE)

main44250-26050iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main44250-26093iLH166,176199907-200209

main44250-26120iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

main44250-26190iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199308-199407

main44250-26200iLH102,104,105,11#,RZH104,105,11#..LHD199308-199407

main44250-26281iRZH135,153199907-200209

main44250-26340iLH102,103,11#,125,RZH102,103,104,11#,125..RHD199508-199609

main44250-26341iLH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125..RHD199907-200008

main44250-26350iLH102,104,11#,RZH10#,11#..LHD199508-199609

main44250-26351iRZH113..GCC;RZH113..LHD..03S..GEN;LH10#,11#,154,164,172,174,RZH102,104,105,112,114,115,155..LHD200008-200209

2 parts on this diagram · 9 diagrams in section
