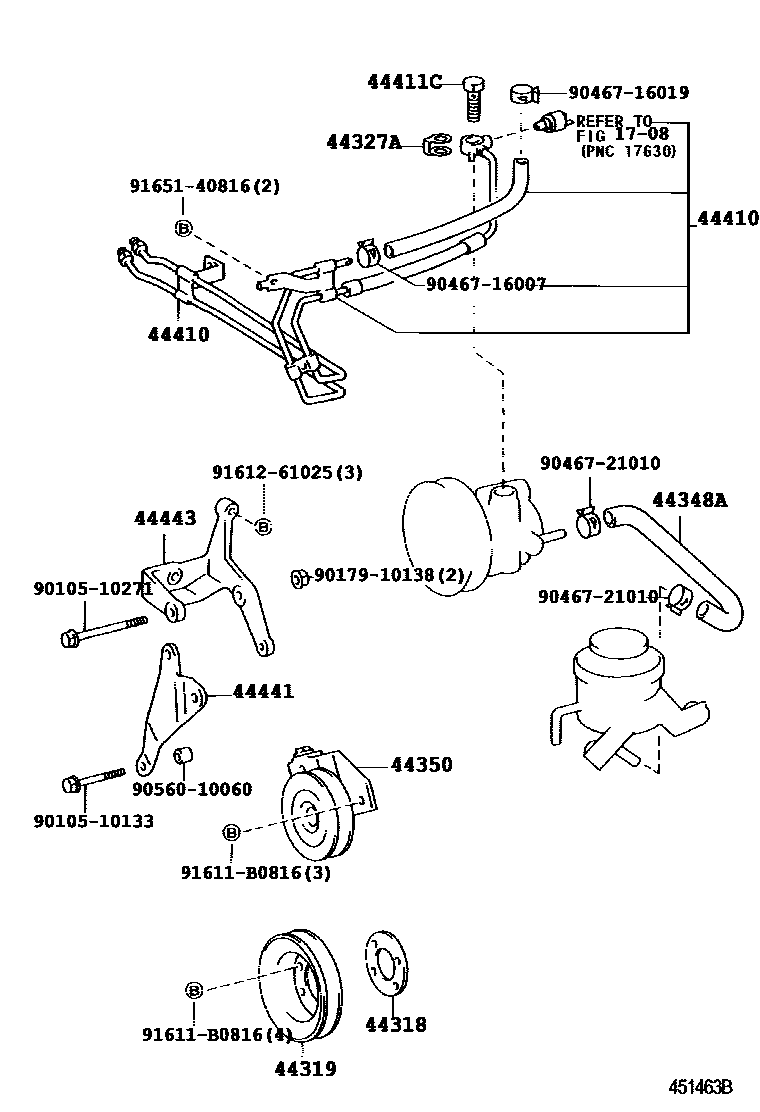

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1708

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLH10#,11#,125,16#,17#,184198908-200008

main44318-26020iRZH10#,11#,125198908-200208

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLH10#,11#,125198908-199010

main44319-26020iRZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI198908-200208

main44319-26040iLH166,176199808-200408

main44319-26050iLH102..RHD;LH102..LHD..03S;LH103,104,105,11#,125199010-200008

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iLH10#,11#,125198908-198911

main44327-26020iRZH10#,11#,125198908-200405

main44327-26030iLH10#,11#,125198911-199005

main44327-30040iLH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15#200406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26070iRZH112..4D..06S198908-200208

main44348-26090iLH10#,11#,125198908-199806

main44348-26091iLH10#,11#,125,154,162,164,172,174,184199806-200008

main44348-26100iLH166,176199808-200408

44350PULLEY ASSY, POWER STEERING IDLE

main44350-26010iRZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#198908-200208

44410TUBE ASSY, PRESSURE FEED

main44410-26170iRZH103,105,113,125,135,153..RHD199508-200501

main44410-26180iRZH105,113,115..LHD..EFI199405-200508

main44410-26240iLH10#,11#,125..RHD198908-199005

D=14

main44410-26241iLH10#,11#,125..RHD199005-199308

D=19

main44410-26242iLH102,103,11#,125..RHD199308-199808

main44410-26243iLH103,11#,125,174..RHD;LH162,172,184..RHD..5F199808-200305

sub44410-26B40

sub44416-26080

sub90467-16019

main44410-26250iLH102,104,112,114..LHD198908-199005

D=14

main44410-26251iLH102,104,112,114..LHD199005-199308

D=19

main44410-26252iLH102,104,105,11#..LHD199308-199808

main44410-26253iLH102,104,105,11#,174..LHD199808-200008

sub44410-26254

sub44416-26080

sub90467-16008

main44410-26254iLH10#,11#,154,164,172,174..LHD200008-200501

main44410-26293iLH166,176199808-200408

main44410-26310iRZH104,112,114..RHD..(03S,12S,15S)198908-200208

main44410-26320iRZH102,104,105,11#..LHD..CBR198908-200501

main44410-26481iLH162,172,184..4FC200008-200501

main44410-26B40iLH11#,162,172,174,184..RHD..5F200305

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iLH10#,11#,125198908-199005

*16-1.5PX26-12

main90401-16014iRZH10#,11#,125198908-200208

44441BRACKET, PUMP, FRONT

main44441-26010iRZH112..4D..06S198908-200208

44443BRACKET, PUMP

main44443-26030iRZH10#,11#,125198908-198910

sub44443-26031

sub90105-10133

main44443-26031iRZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#198910-200208

main44443-26040iLH10#,11#,125198908-199308

main44443-26041iLH112..RHD199808-199905

MALAYSIA SPEC

main44443-26041iLH10#,11#,125199308-199808

main44443-26051iLH166,176199808-200206

sub44443-26052

main44443-26052iLH166,176200206-200408

main44443-26090iLH10#,11#,125,154,162,164,172,174,184199808-200206

sub44443-26091

main44443-26091iLH10#,11#,154,162,164,172,174,184200206

9010510133

main90105-10133

9010510271

main90105-10271

9017910138

main90179-10138

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

9056010060

main90560-10060

91611B0816

main91611-B0816

9161261025

main91612-61025

9165140816

main91651-40816

20 parts on this diagram · 5 diagrams in section
