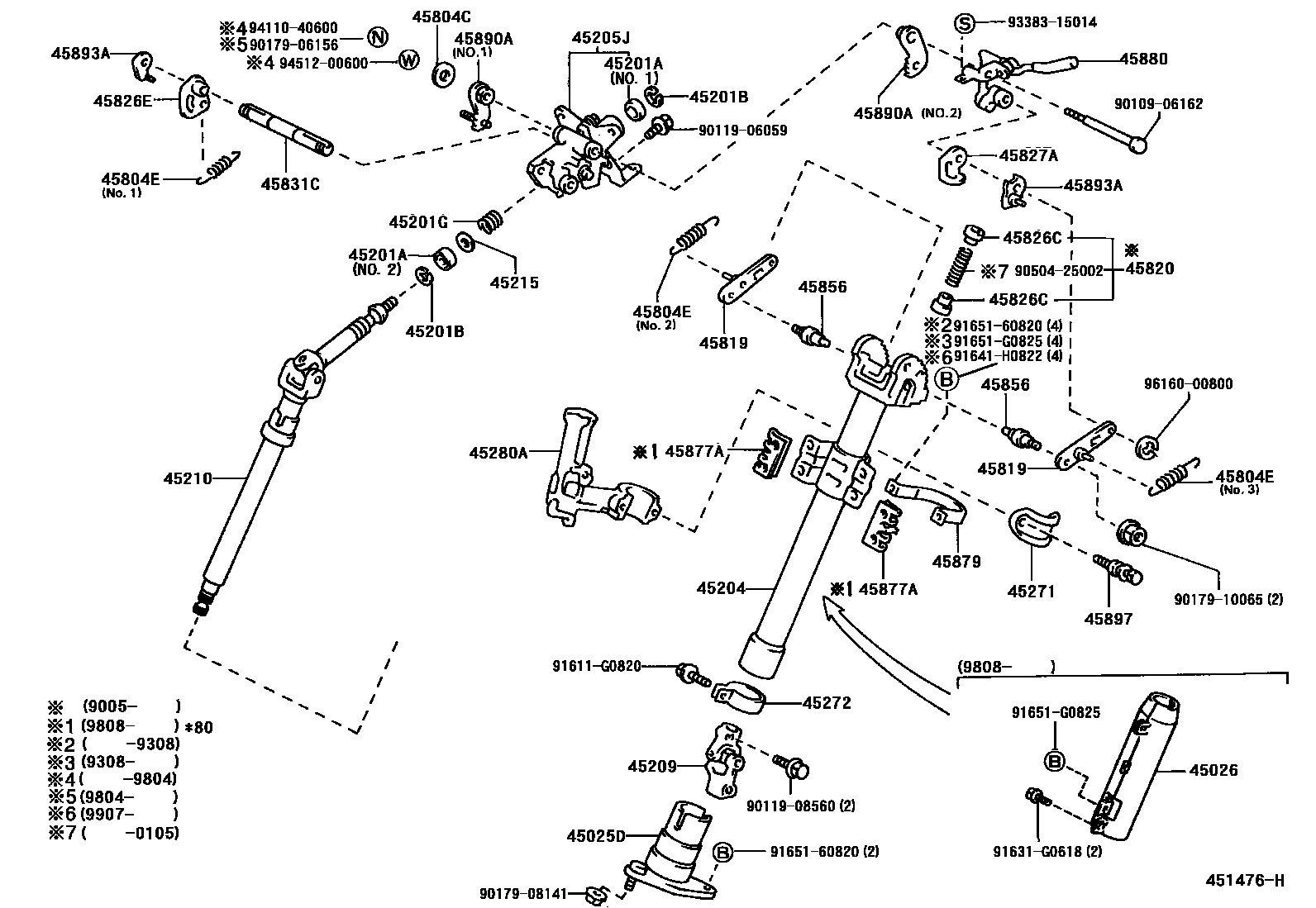

STEERING COLUMN & SHAFT

0001 1TILT STEERING 0002 1RIGID STEERING 0003 1 0004 1 0005 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-26021iLH10#,11#,125,RZH10#,11#,125..RHD199004-199205

sub90119-08873

main45025-26022iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD199907-200602

main45025-26030iLH102,104,112,114,RZH102,104,112,114..LHD199004-199205

main45025-26031iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199205-200008

main45025-26050iLH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199808-199905

W(AIR BAG)

main45025-26060iRZH105,155..LHD;LH164,166,174,176,RZH115..CIS200108-200501

W(AIR BAG)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-26010iLH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199808-199903

W(*80)

main45026-26011iLH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199903-199907

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18008iRZH112..4D..06S199907-200208

NO.1

main90363-18017iRZH103..03S..GEN200305

NO.2

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-26080iLH10#,11#,125,RZH10#,11#,125..STD198908-199205

main45204-26081iRZH115..12S200208-200508

main45204-26090iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199205

W(TILT STEERING)

main45204-26091iRZH112..4D..06S199907-200208

W(TILT STEERING)

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-26120iLH10#,11#,125,RZH10#,11#,125..RHD..STD198908-199005

main45205-26121iLH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD..(DX,STD)199411-199808

main45205-26130iLH102,104,112,114,RZH102,104,112,114..LHD198908-199005

main45205-26131iRZH115..15S..GEN..EFI199907-200501

CHINA SPEC & W(RIGID STEERING)

main45205-26140iLH125..STD;LH125..SMRF;LH102,103,11#,RZH102,103,104,11#,125,135,153..RHD199308-199808

W(TILT STEERING)

main45205-26150iRZH155..GEN;RZH115..15S..GEN..EFI199907-200501

CHINA SPEC & W(TILT STEERING)

main45205-26200iRZH115..12S200208-200508

W(RIGID STEERING)

main45205-26230iRZH103..03S..GEN199907-200108

W(TILT STEERING)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-26020iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

45210SHAFT ASSY, STEERING MAIN

main45210-26050iRZH112..4D..06S199907-200208

main45210-26060iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199907-200508

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iRZH112..4D..06S199907-200208

45271CLAMP, STEERING COLUMN, UPPER

main45271-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

45272CLAMP, STEERING COLUMN, LOWER

main45272-26010iLH10#,11#,125,RZH10#,11#,125198908-199308

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-26151iRZH112..4D..06S199907-200208

main45280-26191iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199907-200508

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-06019iLH103,113,125,RZH103,113,125..ARL198908-199108

main94613-10601iRZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S).199901

main94614-10600iLH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153199401-199901

45804ESPRING, TENSION(FOR STEERING TILT LEVER)

main90507-08010iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,174..06S,10S,15S;LH114,172,RZH114..LHD..4D;LH10#,112,113,115,125,154,199907-200508

NO.3

main90507-08012iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

NO.1

main90507-12035iLH103,113,125,RZH103,113,125..ARL198908-199108

NO.2

45819RETAINER, TILT LEVER

main45819-22040×2iLH103,113,125,RZH103,113,125..ARL198908-199108

main45819-22060×2iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199212-199308

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12020iRZH103..03S..GEN200105

main45820-35010iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907-200105

45826CBUSH(FOR STEERING TILT LEVER)

main90386-06031×2iLH103,113,125,RZH103,113,125..ARL198908-199005

main90386-06043×2iLH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)200105-200501

45826ELEVER, STEERING TILT(FOR TILT ADJUST)

main45826-22050iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308

45827ALEVER, STEERING TILT SUB

main45827-22030iLH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)199907-200501

45831CSHAFT, TILT LEVER LOCK

main45831-22020iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

45856BOLT, TILT STEERING, NO.2

main45856-22010×2iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

OD=9.989-9.998

main45856-22020×2iLH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)199907-200501

OD=9.998-10.007

45877ASPACER, STEERING COLUMN BRACKET

main45877-26010×2iLH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199808-199907

45879BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2

main45879-26020iLH172..HRF;RZH105..GEN;LH172..5D..GEN;LH172..ARL,GCC;RZH113..5D..EFI;LH172..STD..DEFI;RZH113..4D..GCC..EFI;LH172,RZH115..SG..(GL,SGL);LH174,RZH103,112,113..SG..(03S199907-200602

W(RIGID STEERING)

main45879-26040iRZH113..4D..06S;LH103,113,RZH103..06S199907-200501

W(TILT STEERING)

45880LEVER ASSY, STEERING TILT

main45880-26010iLH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)199907-200501

main45880-35010iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

45890APAWL ASSY, TILT STEERING

main45890-20110iLH103,113,125,RZH103,113,125..ARL198908-199108

NO.1

main45890-22090iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308

NO.2

45893ASTOPPER, TILT STEERING PAWL

main45893-20260iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172,174..06S,15S;LH172..5D..03S..GEN;LH114,172,RZH114..LHD..4D;LH10#,112,154,16#,176,184,RZH1200105-200508

MARK A

main45893-20270iRZH103..03S..GEN200105

MARK B

main45893-20280iRZH103..03S..GEN200105

MARK C

main45893-20290iLH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)200105-200501

MARK D

main45893-20300iRZH112..4D..06S200105-200208

MARK E

main45893-20310iRZH112..4D..06S200105-200208

MARK F

main45893-20320iRZH103..03S..GEN200105

MARK G

main45893-22030iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

MARK 1

main45893-22040iLH103,113,125,RZH103,113,125..ARL198908-199108

MARK 2

main45893-22050iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

MARK 3

main45893-22060iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907-200105

MARK 4

main45893-22070iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11199308-200105

MARK 5

main45893-22080iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907-200105

MARK A

main45893-22090iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11199308-200105

MARK B

main45893-22100iLH103,113,125,RZH103,113,125..ARL198908-199108

MARK C

main45893-22110iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907-200105

MARK D

main45893-22120iRZH103,113..ARL;LH10#,11#,125,RZH102,104,112,114,125199108-199308

MARK E

main45893-24010iLH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)200105-200501

MARK 1

main45893-24020iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172,174..06S,15S;LH172..5D..03S..GEN;LH114,172,RZH114..LHD..4D;LH10#,112,154,16#,176,184,RZH1200105-200508

MARK 2

main45893-24030iRZH103..03S..GEN200105

MARK 3

main45893-24040iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172,174..06S,15S;LH172..5D..03S..GEN;LH114,172,RZH114..LHD..4D;LH10#,112,154,16#,176,184,RZH1200105-200508

MARK 4

main45893-24050iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172,174..06S,15S;LH172..5D..03S..GEN;LH114,172,RZH114..LHD..4D;LH10#,112,154,16#,176,184,RZH1200105-200508

MARK 5

main45893-24060iRZH112..4D..06S200105-200208

MARK 6

main45893-24070iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172,174..06S,15S;LH172..5D..03S..GEN;LH114,172,RZH114..LHD..4D;LH10#,112,154,16#,176,184,RZH1200105-200508

MARK 7

45897BOLT, STEERING LOCK SET

main45897-12020×2iRZH105..CBR;RZH113..LHD;RZH103..RHD..SG;RZH115..15S..CBR;LH172,RZH103..RHD..4D..STD;RZH105,113,115..STD..(ARL,CIS);LH10#,11#,125,166,176,RZH102,104,112,114,125..03S199808-200008

NO.1

main45897-12030×2iRZH115..15S;LH172..03S..STD;LH172,RZH104,105,114..SG;LH10#,11#,125,16#,174,176,184,RZH102,103,112,113,125..DX,STD199907-200105

NO.2

9010906162

main90109-06162

9011906059

main90119-06059

9011908560

main90119-08560

9017906156

main90179-06156

9017908141

main90179-08141

9017910065

main90179-10065

9050425002

main90504-25002

91611G0820

main91611-G0820

91631G0618

main91631-G0618

91641H0822

main91641-H0822

9165160820

main91651-60820

91651G0825

main91651-G0825

9338315014

main93383-15014

9411040600

main94110-40600

9451200600

main94512-00600

9616000800

main96160-00800

44 parts on this diagram · 5 diagrams in section
