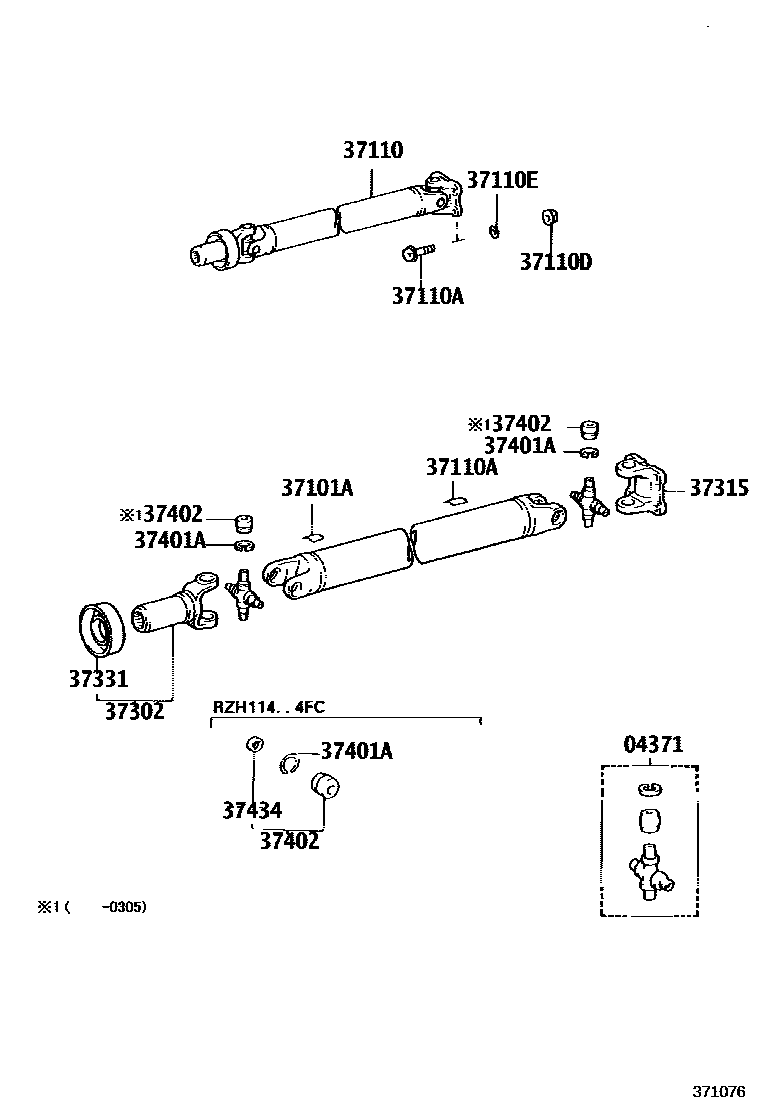

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-25010iRZH114..4FC198908-199010

main04371-30021iLH125,RZH125198908-199508

sub04371-30040

main04371-30030iLH10#,11#,125,RZH10#,11#,125..5F199508-199711

sub04371-30040

main04371-30040iLH125,184,RZH125,135199711-200008

sub04371-30041

main04371-30041iLH125,184,RZH125,135199907-200305

RR PROPELLER SHAFT

sub04371-60100

main04371-30041iLH103..4D..GEN;RZH102,103..03S..GEN199907-200305

sub04371-60100

main04371-60080iRZH103..03S..GEN200305-200602

sub04371-60100

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S198908

10G,L=20.7

main90937-01136iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308

20G,L=41.4

main90937-01140iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S199308

30G,L=62.2

main90937-01147iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S198908

2G,T=2.0

main90937-01148iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S198908

4G,T=2.0

main90937-01149iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S198908

6G,L=12.4

main90937-01150iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S198908

8G,L=16.6

main90937-01151iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S198908

12G,L=24.9

main90937-01152iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S198908

14G,L=29.0

main90937-01153iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S199308

16G,L=33.2

main90937-01154iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S199308

18G,L=37.3

main90937-01155iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S199308

22G,L=45.6

main90937-01156iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S199308

24G,L=49.7

main90937-01157iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S199308

26G,L=53.9

main90937-01158iRZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S199308

28G,L=58.1

main90937-01184iLH166,176199808-200408

4G,T=1.6

main90937-01191iLH166,176199808-200408

8G,T=1.6

main90937-01192iLH166,176199808-200408

12G,T=4.5

main90937-01193iLH166,176199808-200408

16G,T=4.5

main90937-01194iLH166,176199808-200408

20G,T=4.5

main90937-01198iLH166,176199808-200408

24G,T=4.5,L=25.1

main90937-01199iLH166,176199808-200408

28G,T=6,L=22.7

main90937-01200iLH166,176199808-200408

32G,T=6,L=24.3

main90937-01290iLH166,176199808-200408

2G

main90937-01291iLH166,176199808-200408

4G

main90937-01292iLH166,176199808-200408

6G

main90937-01293iLH166,176199808-200408

8G

main90937-01294iLH166,176199808-200408

10G

main90937-01295iLH166,176199808-200408

12G

main90937-01296iLH166,176199808-200408

14G

main90937-01297iLH166,176199808-200408

16G,T=2.0

main90937-01298iLH166,176199808-200408

18G,T=2.0

main90937-01299iLH166,176199808-200408

20G,T=2.0

main90937-01300iLH166,176199808-200408

22G,T=2.0

main90937-01301iLH166,176199808-200408

24G,T=2.0

main90937-01302iLH166,176199808-200408

26G,T=2.0

main90937-01303iLH166,176199808-200408

28G,T=2.0

main90937-01304iLH166,176199808-200408

30G,T=2.0

37110SHAFT ASSY, PROPELLER

main37110-26180iLH112,114,RZH112,114..4F,5F198908-199308

main37110-26260iLH102,104,RZH10#..GEN198908-199308

main37110-26270iLH103,RZH103..4FC198908-200408

main37110-26380iLH10#,162,164,RZH10#..5F198908-200408

main37110-26400iLH113,115,RZH113..5F198908-200208

main37110-26410iLH113,RZH113..4FC198908-200311

main37110-26420iRZH114..4FC198908-199010

main37110-26490iLH125,184,RZH125,135..5F198908-200501

main37110-26510iLH125,184,RZH125..4FC199808-200501

main37110-26800iLH166199808-200408

main37110-26810iLH176199808-200408

main37110-26870iRZH112..5D;RZH112..03S;LH11#,154,172,174,RZH113,114,115,15#..5F200208

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iRZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,11198908-199912

*10-1.00PX27-13

main90105-10424iLH103..4D..GEN;RZH102,103..03S..GEN199912-200402

*10-1.00PX29-15

main90105-10466iLH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15#200403

*10-1.00PX29-15

37110DNUT (FOR PROPELLER SHAFT)

main90178-10006iLH166,176199912-200402

main90178-10007iLH166,176200403-200408

main90179-10059iLH166,176198908-199912

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iLH166,176198908-199912

sub90560-10H00

main90560-10101iLH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,135,15#199912-200402

main90560-10102iLH166,176200403-200408

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-26011iLH166,176199808-200408

NO.1

main37302-35010iRZH114..4FC198908-199010

main37302-35030iRZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#198908-200602

main37302-35050iLH166,176199808-200408

NO.2

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iLH125,166,176,184,RZH125,135198908-200006

main37315-35050iRZH114..4FC198908-199010

main37315-35070iLH125,166,176,184,RZH125,135200006-200602

main37315-35070iRZH103..03S..GEN200305

FR PROPELLER SHAFT

37331COVER, SLIDING SHAFT DUST

main37331-30010iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S198908

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-25039iRZH103..03S..GEN200006-200208

T=2.29,MARK 1

main90520-25040iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.31,MARK 2

main90520-25041iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.33,NO MARK

main90520-25042iLH172..4FC;LH162..ARL;LH162,176..SG;RZH113..LHD..06S..GEN;LH164,166,174,184,RZH112..SG..(03S,12S,14S)200006-200208

T=2.35,BROWN

main90520-25043iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.37,BLUE

main90520-25044iRZH103..03S..GEN200006-200208

T=2.39,MARK 6

main90520-25045iRZH103..03S..GEN200006-200208

T=2.41,MARK 7

main90520-25046iLH172..4FC;LH162..ARL;LH162,176..SG;RZH113..LHD..06S..GEN;LH164,166,174,184,RZH112..SG..(03S,12S,14S)200006-200208

T=2.43,MARK 8

main90520-25047iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.45,MARK 9

main90520-25048iRZH103..03S..GEN200006-200208

T=2.47,MARK 10

main90520-25049iLH172..4FC;LH162..ARL;LH162,176..SG;RZH113..LHD..06S..GEN;LH164,166,174,184,RZH112..SG..(03S,12S,14S)200006-200208

T=2.49,MARK A

main90520-25050iRZH103..03S..GEN200006-200208

T=2.51,MARK B

main90520-25051iRZH103..03S..GEN200006-200208

T=2.53,MARK C

main90520-25052iLH172..4FC;LH162..ARL;LH162,176..SG;RZH113..LHD..06S..GEN;LH164,166,174,184,RZH112..SG..(03S,12S,14S)200006-200208

T=2.55,MARK D

main90520-25053iRZH103..03S..GEN200006-200208

T=2.57,MARK E

main90520-25054iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.19,MARK D

main90520-25055iRZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S200006-200208

T=2.21,MARK E

main90520-25056iRZH103..03S..GEN200006-200208

T=2.23,MARK F

main90520-25057iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.25,MARK G

main90520-25058iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S200006-200208

T=2.27,MARK H

main90520-26038iLH103,113,RZH103,113..4FC198908-199711

T=2.125,MARK 1

main90520-26040iLH125,RZH125198908-199711

T=2.175,MARK 2

main90520-26041iLH103,113,RZH103,113..4FC198908-199711

T=2.225,MARK 3

main90520-26042iLH125,RZH125198908-199711

T=2.275,MARK 4

main90520-26043iLH103,113,RZH103,113..4FC198908-199711

T=2.325,MARK 5

main90520-26044iLH125,RZH125198908-199711

T=2.375,MARK 6

main90520-26045iLH10#,11#,125,RZH10#,11#,125..5F198908-199711

T=2.425,MARK 7

main90520-26046iLH10#,11#,125,RZH10#,11#,125..5F198908-199711

T=2.475,MARK 8

main90520-26050iLH166,176199711-200008

T=2.44-2.46

sub90520-25039

main90520-26051iLH103..4D..GEN;RZH102,103..03S..GEN199711-200008

T=2.46-2.48

sub90520-25040

main90520-26052iLH10#,11#,16#,17#,RZH10#,11#,153199711-200008

T=2.28-2.30

sub90520-25041

main90520-26053iLH10#,11#,172,174,RZH10#,11#,153199711-200008

T=2.30-2.32

sub90520-25042

main90520-26054iLH10#,11#,16#,17#,RZH10#,11#,153199711-200008

T=2.32-2.34

sub90520-25043

main90520-26055iLH10#,11#,172,174,RZH10#,11#,153199711-200008

T=2.34-2.36

sub90520-25044

main90520-26056iLH10#,11#,172,174,RZH10#,11#,153199711-200008

T=2.36-2.38

sub90520-25045

main90520-26057iLH103..4D..GEN;RZH102,103..03S..GEN199711-200008

T=2.38-2.40

sub90520-25046

main90520-26058iLH125,184,RZH125,135199711-200008

T=2.40-2.42

sub90520-25047

main90520-26059iLH125,184,RZH125,135199711-200008

T=2.42-2.44

sub90520-25048

main90520-26062iLH10#,11#,16#,17#,RZH10#,11#,153199806-200008

T=2.18-2.20

sub90520-25049

main90520-26063iLH103..4D..GEN;RZH102,103..03S..GEN199806-200008

T=2.20-2.22

sub90520-25050

main90520-26064iLH125,184,RZH125,135199806-200008

T=2.22-2.24

sub90520-25051

main90520-26065iLH166,176199806-200008

T=2.24-2.26

sub90520-25052

main90520-26066iLH103..4D..GEN;RZH102,103..03S..GEN199806-200008

T=2.26-2.28

sub90520-25053

main90520-26067iLH125,184,RZH125,135199806-200008

T=2.48-2.50

sub90520-25054

main90520-26068iLH125,184,RZH125,135199806-200008

T=2.50-2.52

sub90520-25055

main90520-26069iLH125,184,RZH125,135199806-200008

T=2.52-2.54

sub90520-25056

main90521-29070iRZH114..4FC198908-199010

T=2.375-2.425

main90521-29071iRZH114..4FC198908-199010

T=2.425-2.475

main90521-29072iRZH114..4FC198908-199010

T=2.475-2.525

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25020iRZH114..4FC198908-199010

main37402-30011iLH166,176198908-200208

sub04371-60070

sub04371-60100

main37402-30011iRZH112..RHD..SP;RZH113..RHD..GEN;RZH112,115,155..LHD;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH11#,154,172,174,RZH114,153..03S,06S,10S,11S,15S199907-200305

NO PAINT

sub04371-60070

sub04371-60100

main37402-30021iLH125,184,RZH125,135198908-200305

RED PAINTED

sub04371-60070

sub04371-60100

37434SEAL, UNIVERSAL JOINT SPIDER BEARING

main37434-25010iRZH114..4FC198908-199010

12 parts on this diagram · 3 diagrams in section
