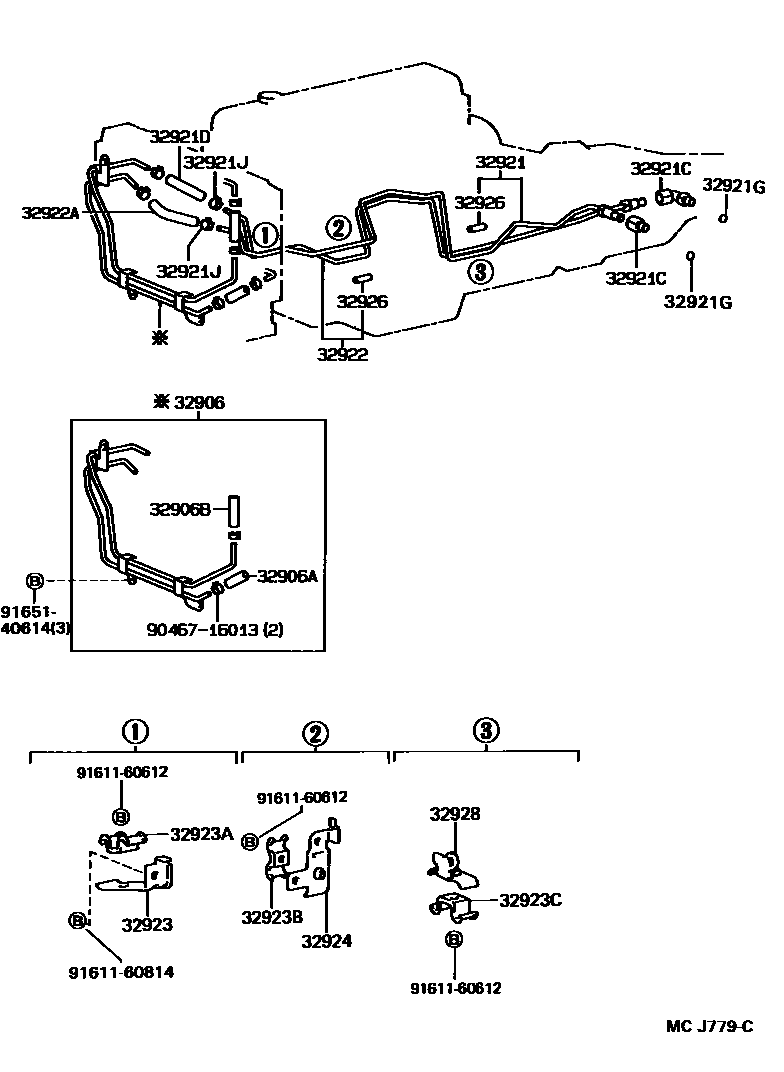

OIL COOLER & TUBE (ATM)

0001 1A45DL 0002 1A45DE,A45DL 0003 1A45DL

32906TUBE SUB-ASSY, OIL COOLER

main32906-26090iRZH103,113,114..4FC198908-198910

sub32906-26110

main32906-26110iLH103,113..4FC198908-199308

sub32906-26150

main32906-26150iLH103,113,RZH103,113..4FC199308-199808

main32907-26040iLH172..4FC199808-200501

32906AHOSE, OIL COOLER TUBE(FOR INLET)

main90445-17093iLH103,113,RZH103,113,114..4FC198908-199801

main90445-17151iLH103,113,125,RZH103,113,125..4FC199808-200501

main90445-17156iLH103,113,RZH103,113..4FC199801-199808

32906BHOSE, OIL COOLER TUBE(FOR OUTLET)

main90445-17100iLH103,113,RZH103,113,114..4FC198908-199808

main90445-17125iLH162..4FC199808-200501

32921TUBE, OIL COOLER INLET, NO.1

main32921-26081iRZH103,113..4FC198908-200501

main32921-26091iLH103,113..4FC198908-199806

main32921-26092iLH103,113..4FC199806-199808

main32921-26260iLH103,113,125..4FC199808-200501

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iLH172..4FC200008-200501

INLET

main90404-16021iLH103,113,125,RZH103,113,114,125..4FC198908-200501

FRONT

main90407-16010iRZH103,113..4FC198908-200501

REAR

main90407-16010iLH162..4FC200008-200501

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-26160iLH184..4FC199808-200501

main32941-28190iRZH103,113,114,125..4FC198908-200501

main32942-26110iLH103,113..4FC199806-199808

main90445-17102iLH103,113..4FC198908-199806

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iLH103,113,125,RZH103,113,114,125..4FC198908-200501

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iLH103,113,125,RZH103,113,114,125..4FC198908-199907

sub90467-16022

main90467-16022iLH103,113,125..4FC199907-200501

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26081iRZH103,113,114,125..4FC198908-200501

main32922-26091iLH103,113..4FC198908-199806

main32922-26092iLH103,113..4FC199806-199808

main32922-26250iLH172..4FC199808-200501

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26160iLH103,113..4FC199806-199808

main32942-26110iLH162..4FC..GEN199808-200501

main90445-17103iRZH103,113,125..4FC199010-200501

main90445-17107iRZH103,113,114..4FC198908-199010

sub90445-17103

main90445-17110iLH103,113..4FC198908-199806

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-26050iRZH103,113..4FC198908-200501

main32923-26070iLH103,113..4FC198908-199806

sub32923-26130

main32925-26090iLH103,113..4FC199806-199808

main32925-26091iLH184..4FC199808-200501

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12079iRZH103,113..4FC198908-200501

main90949-01B25iLH162..4FC199806-200501

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main90462-12079iLH103,113,125..4FC198908-200501

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-26030iRZH103,113,114..4FC198908-199508

NO.1

sub32909-26031

main32909-26031iRZH125..4FC199508-200501

NO.1

main32909-26040iRZH103,113,114..4FC198908-199508

NO.2

sub32909-26041

main32909-26041iRZH103,113,125..4FC199508-200501

NO.2

main90462-12079iLH103,113..4FC198908-199808

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-26050iLH103,113..4FC198908-199808

sub32924-26140

main32924-26120iLH162..4FC..GEN199808-200501

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-26010iRZH103,113..4FC198908-200501

L=60,ID=10

main32926-30020iLH184..4FC198908-200501

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-26010iLH103,113..4FC198908-199808

9046716013

main90467-16013

9161160612

main91611-60612

9161160814

main91611-60814

9165140614

main91651-40614

21 parts on this diagram · 3 diagrams in section
