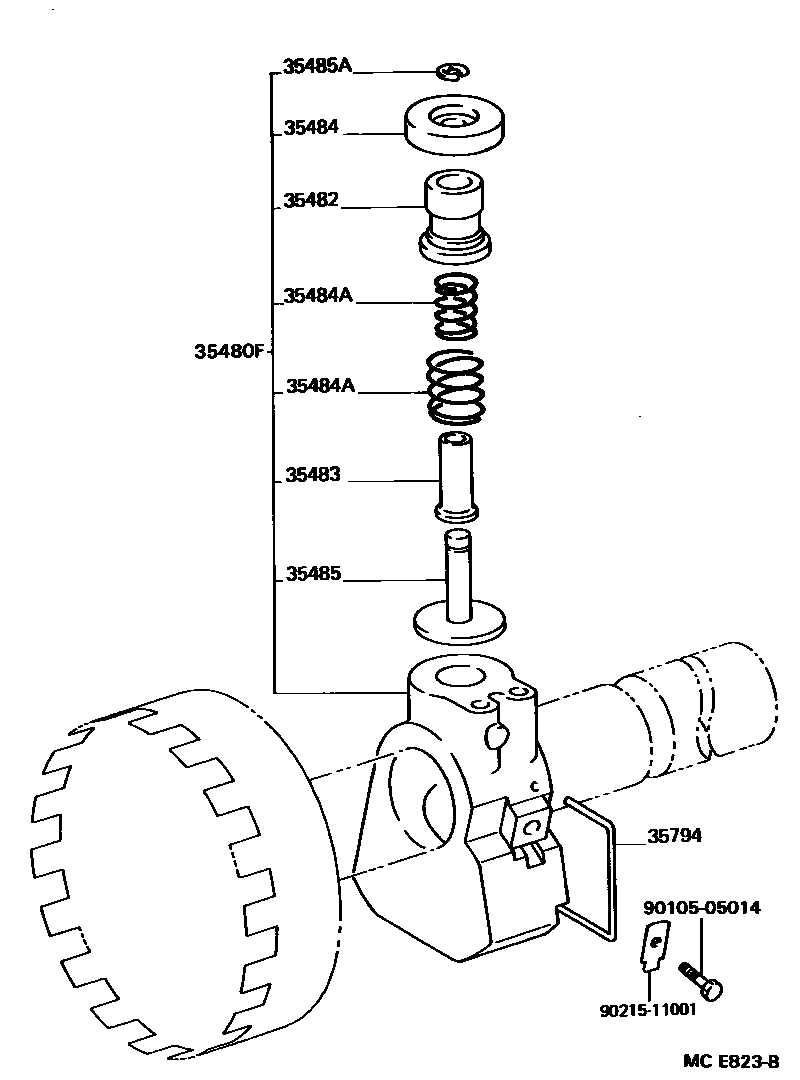

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-14010iRZH103,113..4FC198908-199808

main35480-26030iLH103,113,125..4FC198908-200501

main35480-28010iRZH125..4FC199907-200501

main35480-28020iRZH114..4FC198908-199010

35482VALVE, GOVERNOR

main35482-14010iRZH103,113..4FC198908-199808

main35482-28010iRZH103,113..4FC198908-200501

main35482-28020iRZH114..4FC198908-199010

35483WEIGHT, GOVERNOR, INNER

main35483-14010iLH103,113,125..4FC198908-200501

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iLH162..4FC..GEN198908-200501

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iLH172..4FC198908-200501

OUTER

main90501-08051iRZH103,113..4FC198908-199808

OUTER

main90501-08059iLH162..4FC198908-200501

INNER

main90501-09049iRZH103,113,114..4FC198908-199808

INNER

main90501-09065iRZH114..4FC198908-199010

OUTER

35485SHAFT, GOVERNOR VALVE

main35485-14010iLH184,RZH125..4FC198908-200501

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-200501

35794RING, GOVERNOR RETAINING

main35794-22010iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-200501

9010505014

main90105-05014

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
