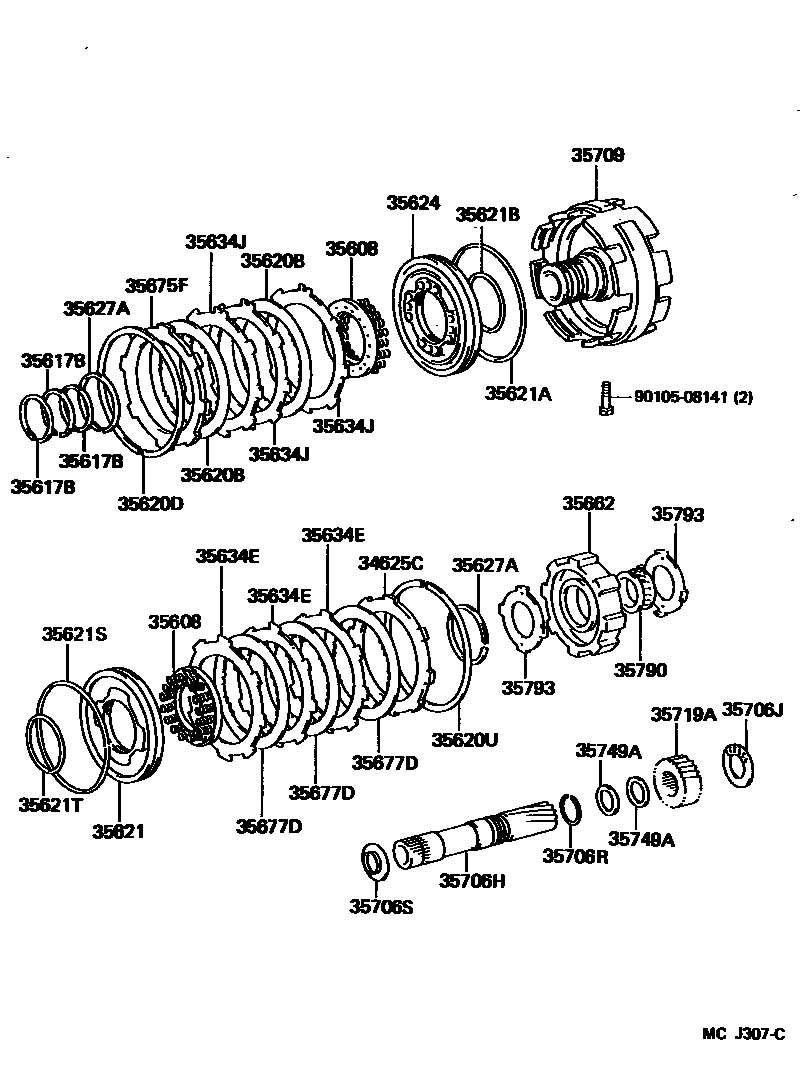

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

34625CFLANGE, OVERDRIVE BRAKE

main34625-22010iLH103,113,125,RZH103,113,114,125..4FC198908-199911

sub35676-22030

main35676-22030iLH162..4FC199911-200501

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iLH162..4FC198908-200501

FRONT

main35608-22010iLH172..4FC200008-200501

REAR

main35608-30020iLH103,113,125..4FC198908-200501

REAR

35617BRING, CLUTCH DRUM OIL SEAL

main35617-16010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

main35617-28010iLH172..4FC199907-200501

35620BDISC, CLUTCH (FOR BRAKE)

main35677-30100iLH103,113,RZH103,113,114..4FC198908-199608

main35677-30140iLH103,113,125,RZH103,113,125..4FC199608-200501

35620DRING (FOR BRAKE)

main90521-99139iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35620URING (FOR REAR BRAKE)

main90521-99139iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35621PISTON, BRAKE, NO.1

main35621-30010iLH103,113,125..4FC198908-200501

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iLH184,RZH125..4FC199808-200501

main90301-99192iLH103,113,RZH103,113,114..4FC198908-199808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iLH162..4FC..GEN199808-200501

main90301-57188iLH103,113,RZH103,113,114..4FC198908-199808

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iLH103,113,RZH103,113,114..4FC198908-199808

sub90301-99107

main90301-99107iLH103,113,125..4FC199808-200501

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iLH184,RZH125..4FC199808-200501

main90301-57188iLH103,113,RZH103,113,114..4FC198908-199808

35624PISTON, 2ND BRAKE

main35624-22010iLH172..4FC198908-200501

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35634EPLATE, CLUTCH (FOR BRAKE)

main35648-30020iLH162..4FC198908-200501

35634JPLATE, CLUTCH, NO.3

main35634-22060iLH103,113,125,RZH103,113,125..4FC198908-200501

35662HUB, BRAKE

main35662-30010iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iLH103,113,125,RZH103,113,114,125..4FC198908-199911

sub35675-22140

main35675-22140iLH162..4FC..GEN199911-200501

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-22070iLH184,RZH125..4FC199608-200501

main35677-30020iLH103,113,RZH103,113,114..4FC198908-199608

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30050iLH172..4FC198908-200501

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-21001iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iLH172..4FC198908-200501

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iLH103,113,125..4FC198908-200005

main35789-43020iLH103,113,125..4FC199808-200501

35709SUPPORT SUB-ASSY, CENTER

main35709-12020iLH184,RZH125..4FC199808-200501

main35709-30051iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-199810

35719AGEAR, REAR PLANETARY SUN

main35719-30050iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iLH103,113,125,RZH103,113,114,125..4FC198908-200501

35790CLUTCH ASSY, 1 WAY

main35791-30020iLH103,113,125,RZH103,113,114,125..4FC198908-200109

main35791-30100iLH172..4FC200109-200501

35793RETAINER, 1 WAY CLUTCH

main35793-22011iLH103,113,125,RZH103,113,114,125..4FC198908-200501

9010508141

main90105-08141

28 parts on this diagram · 1 diagram in section
