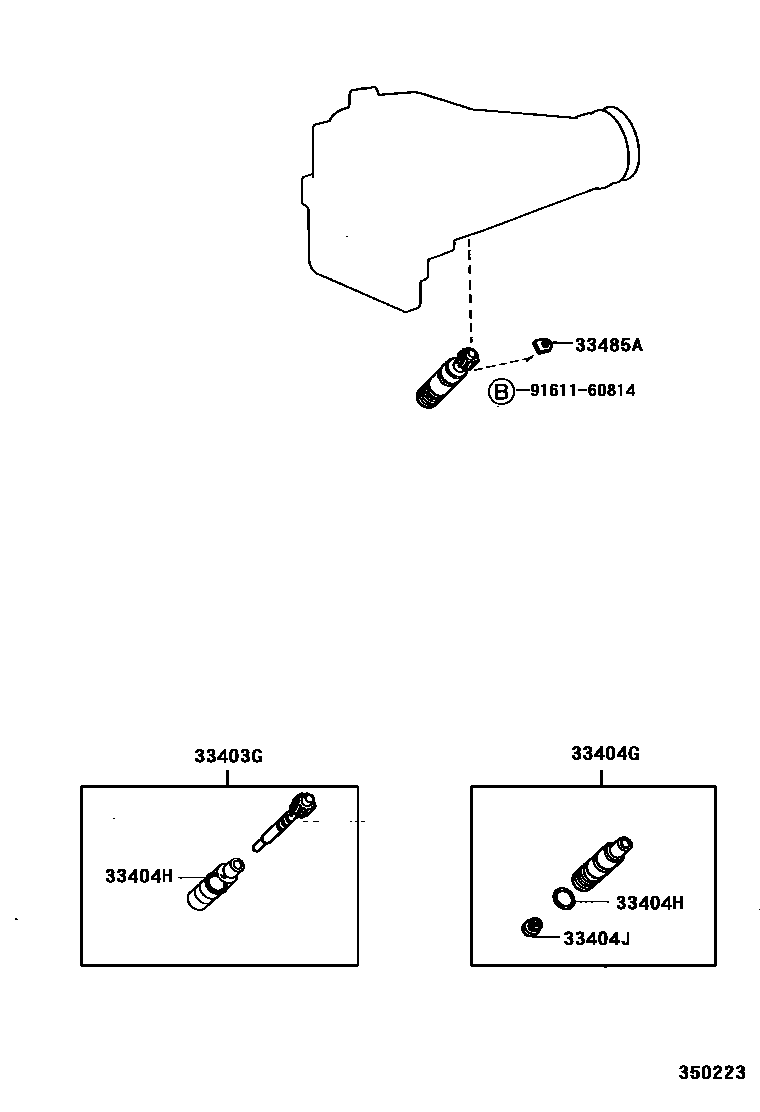

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A45DL 0002 1A45DE,A45DL

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29245iLH103,113,RZH114..4FC198908-199308

N=19,MARK 19:5

main33403-39205iRZH103,113..4FC198908-199308

N=18,MARK 18:5

main33482-29105iRZH114..4FC198908-199010

N=22,MARK 22:6

main33482-39315iRZH113..4FC..GEN198908-199308

N=21,MARK 21:6

main33482-39385iRZH103,113,125..4FC199308-200501

N=18,MARK N

main33482-39395iLH103,113,125..4FC199308-200501

N=19,MARK S

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH103,113,RZH103,113,114..4FC198908-199308

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLH103,113,RZH103,113,114..4FC198908-199308

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH103,113,RZH103,113,114..4FC198908-199308

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH103,113,RZH103,113,114..4FC198908-199308

9161160814

main91611-60814

6 parts on this diagram · 2 diagrams in section
