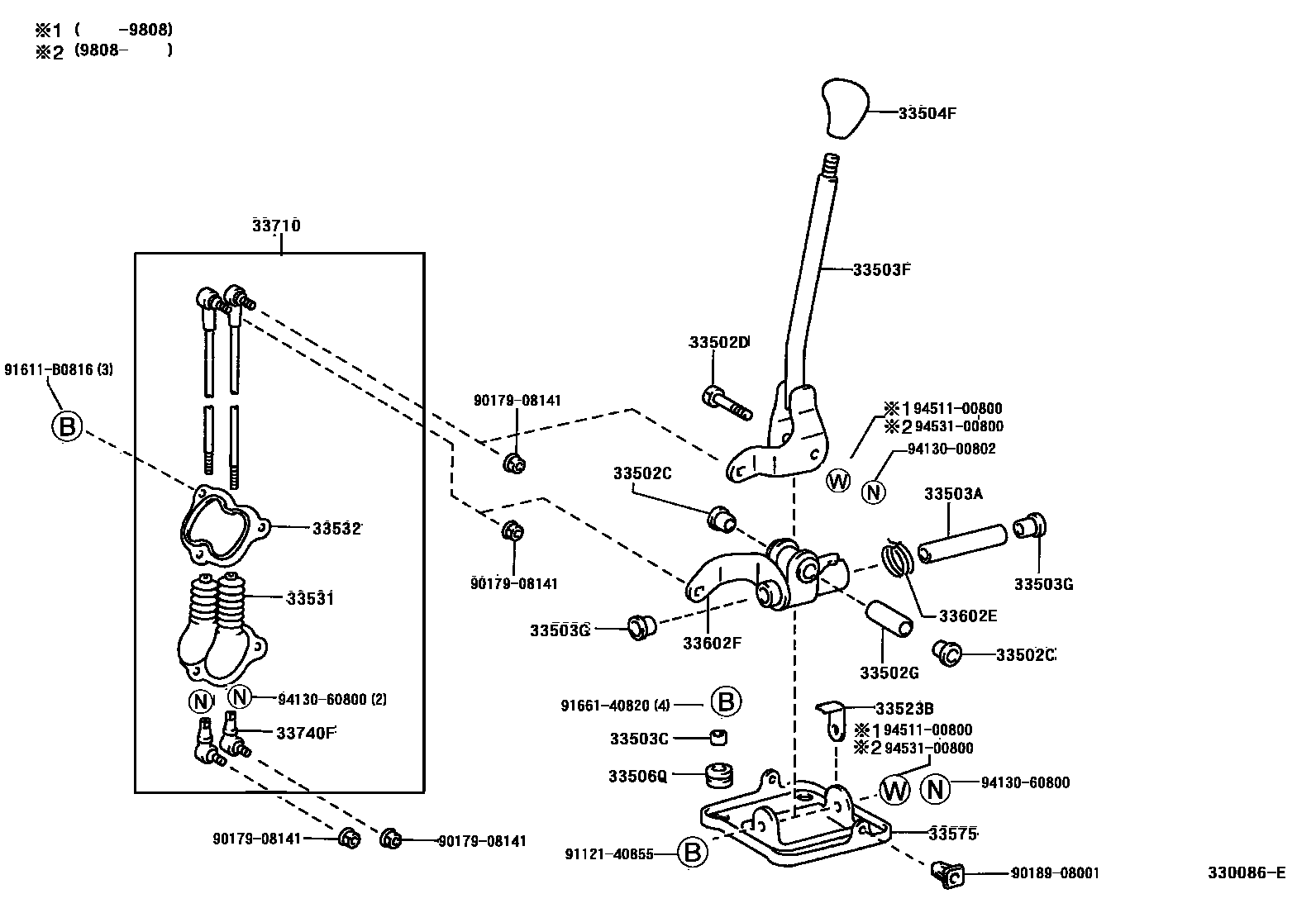

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-26070iLH103,113,RZH103,113,114..4FC198908-199008

sub33502-26071

sub90189-05126

main33502-26071iLH172..4FC199008-200412

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13007iLH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(198908-200412

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08140iRZH112..4D..06S198908-200412

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(198908-200412

main90387-08102iLH103,113,125,162,172,184,RZH103,113,125..4FC198908-200412

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,198908-200412

33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)

main90387-09039iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-26010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

main33055-26020iLH103,113,125,RZH103,113,114,125..4FC198908-200412

33503GBUSH(FOR SHIFT LEVER)

main90386-13007iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-43iRZH102,104,112,114..4F198908-199108

GRAY,TRIM1#

sub33504-14040

main33504-14050-53iLH10#,11#,125,RZH10#,11#,125..5F..STD198908-199308

GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14070-B1iLH10#,11#,125,RZH10#,11#,125..5F199308-199907

GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-14070-P0iRZH115..12S200208-200508

VIETNAM SPEC,SHADOW GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-14070-P0iLH174..12S;LH174..CIS;LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH112,RZH113,115..LHD..SG..STD..(CIS,G199907-200412

SHADOW GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-24010-48iRZH103..5F..GL198908-199108

GRAY,TRIM1#

sub33504-24010

main33504-35030-B1iRZH135,153199611-199907

BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B4iRZH153199907-200508

SHADOW GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-E5iLH154,RZH153..03S,10S199907-200412

ORCHID BROWN,TRIM4#

sub33504-24010

sub33504-35030

sub33504-60121

main33542-20080-23iLH103,113,RZH103,113,114..4FC198908-199508

GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-B0iLH103,113,125,RZH103,113,125..4FC199508-199907

BLUISH GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-B1iLH103,113,125,162,172,184,RZH103,113,125..4FC199907-200302

SHADOW GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20081-B1iLH162,184,RZH103,113,125..4FC200302-200412

SHADOW GRAY,TRIM1#

sub33542-20081

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13014iLH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(198908-200412

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-26050iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-26020iLH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,198908-200412

main33531-26030iLH103,113,125,162,172,184,RZH103,113,125..4FC198908-200412

33532PLATE, DUST BOOT

main33532-26030iLH174..CIS;LH172,RZH113..4FC;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH10#,113,115,125,16#,176,RZH10#;LH172..RHD..198908-200412

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-26090iLH10#,11#,125,RZH10#,11#,125,135,153..4F,5F198908-199711

main33575-26091iRZH115..CBR;RZH105,115..STD..CIS;RZH103..RHD..5F..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..5F..STD..(ARL,GEN)..EFI;RZH102199711-200412

33602ESPRING, TORSION (FOR SELECT LEVER)

main90508-32033iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-26090iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-26190iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

main33710-26200iLH103,113,125,RZH103,113,114,125..4FC198908-200412

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-26020iLH103,113,125,RZH103,113,114,125..4FC198908-200412

9017908141

main90179-08141

9018908001

main90189-08001

9112140855

main91121-40855

91611B0816

main91611-B0816

9166140820

main91661-40820

9413000802

main94130-00802

9413060800

main94130-60800

9451100800

main94511-00800

9453100800

main94531-00800

27 parts on this diagram · 4 diagrams in section
