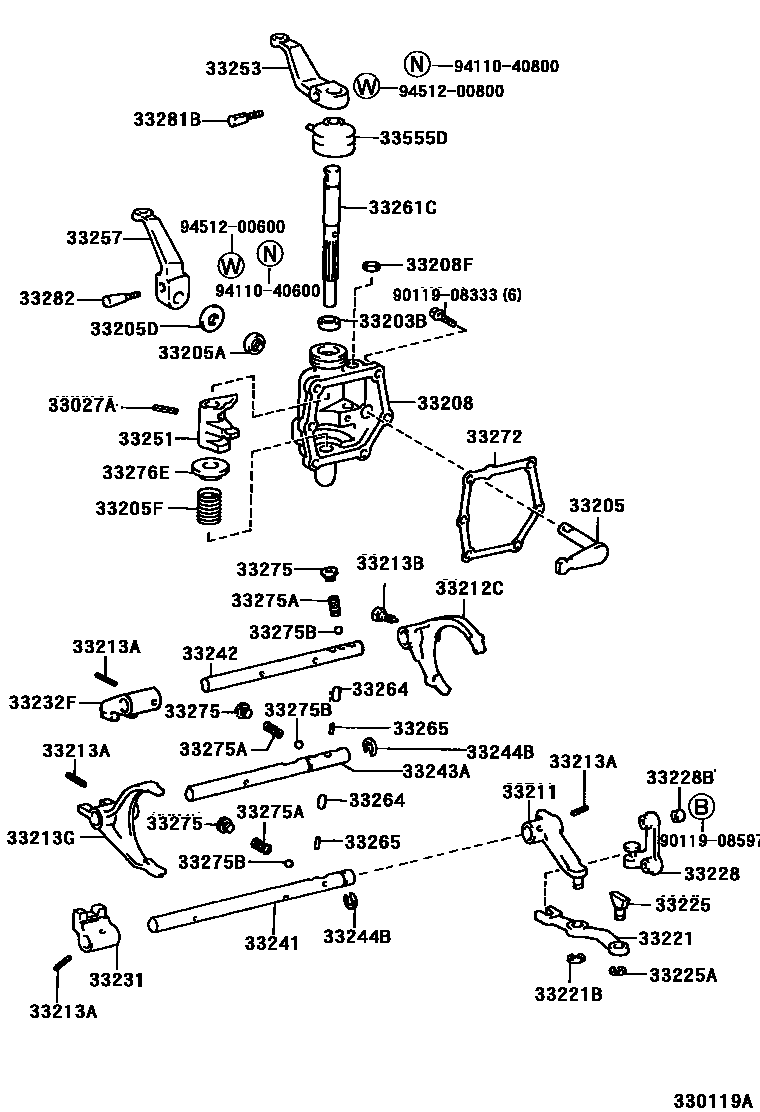

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G55 0002 1G55 0003 1G55,MALAYSIA SPEC 0004 1G52,G55 0005 1G52,G55

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001iRZH114..GL198908

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-28020iRZH114..GL198908

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iLH112..RHD;RZH112..4D..06S199608-200208

OD=28

main94612-11300iLH103..4D..GEN;RZH102,103..03S..GEN198908-200501

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-18044iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-28010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)

main96411-41200iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33211FORK, REVERSE SHIFT

main33211-28010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33212CFORK, GEAR SHIFT, NO.1

main33212-26030iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199305

main90254-05001iLH113,RZH112..4D..06S199209-199304

MALAYSIA SPEC:REFER TO ILLUSTRATION

33213BBOLT(FOR SHIFT FORK SET)

main90105-06143iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199305

main90105-06143iLH113,RZH112..4D..06S199209-199304

MALAYSIA SPEC:REFER TO ILLUSTRATION

33213GFORK, GEAR SHIFT, NO.2

main33213-28011iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199209

sub33220-26010

sub33364-26020

main33220-26010iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F199209

33221ARM, REVERSE SHIFT

main33221-28010iRZH114..GL198908

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33225SHOE, SHIFT ARM

main33225-35030iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main96160-00800iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33228BRACKET, REVERSE SHIFT ARM

main33228-28010iRZH114..GL198908

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200501

33231HEAD, REVERSE SHIFT

main33231-28020iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33232FHEAD, GEAR SHIFT, NO.1

main33232-28020iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33241SHAFT, REVERSE SHIFT FORK

main33244-26011iRZH102,104,112,114..4F198908-199108

main33244-28011iRZH102,112..SRF..5F;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113198908

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-26020iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-35051iRZH114..GL198908

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199012

main90520-12006iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D199012-200111

33251LEVER, SHIFT & SELECT

main33251-26040iRZH102,104,112,114..4F198908-199103

sub33251-28012

main33251-28011iLH10#,11#,125,RZH10#,11#,125..5F198908-199103

sub33251-28012

main33251-28012iLH10#,11#,125,RZH10#,11#,125..4F,5F199103-199210

sub33251-28030

sub33261-28030

main33251-28030iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D199210

33253LEVER, SHIFT OUTER, NO.1

main33253-26050iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33257LEVER, SELECT OUTER

main33257-26100iRZH105,115..CBR;LH10#,11#,125,166,17#,184,RZH102,103,104,112,113,114,125,135,153..4F,5F198908-200208

33261CSHAFT, SHIFT & SELECT LEVER

main33261-28011iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199210

sub33261-28030

sub33251-28030

main33261-28030iRZH114..GL199210

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90360-10003iLH113,RZH112..4D..06S199209-199308

OD=9.52,STEEL

main90361-10002iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

L=21.6,PIN

main90361-10003iRZH114..GL198908

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908-199108

L=11.1,OD=4.8

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-28010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008iLH112..RHD;RZH112..4D..06S..CBR199209-199806

OD=18

main90341-12014iLH10#,11#,125,RZH10#,11#,125,135,153..4F,5F198908-199806

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14062iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-198912

L=30.6

sub90501-14132

main90501-14123iRZH102,112..SRF..5F;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113198908

L=20.2

main90501-14132iRZH114..GL198912-200501

L=31

main90501-14183iLH114,RZH112,114200501

L=33.5

33275BBALL, SHAFT DETENT

main90360-10003iLH113,RZH112..4D..06S198908-199308

33276ESEAT, SELECT SPRING, NO.1

main33276-28011iRZH114..GL198908

33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33282PIN, LEVER LOCK, NO.2

main33282-35010iRZH105,115..CBR;LH10#,11#,125,166,17#,184,RZH102,103,104,112,113,114,125,135,153..4F,5F198908-200208

33555DBOOT, SHIFT LEVER

main33555-28010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

9011908333

main90119-08333

9011908597

main90119-08597

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

45 parts on this diagram · 5 diagrams in section
